The adjustable comb features an adjustment range of
1
⁄4" for cast on
and cast off adjustment in
1
⁄16" increments. Cast on and cast off angle
adjustments of a maximum of
1
⁄8" are also possible. To adjust cast on
and cast off perform the following procedure:
BEFORE PERFORMING ANY ADJUSTMENTS, ALWAYS MAKE CERTAIN THERE IS
NO SHELL IN THE CHAMBER.
1 STANDARD MODEL: Loosen the comb by inserting a
7
⁄64" Allen
wrench through the hole found on the upper left of the recoil pad
and into the Allen screw located within the recoil pad (Figure 11).
Turn wrench counterclockwise three full turns to loosen Allen screw.
This will sufficiently loosen the Adjustable Comb, allowing adjust-
ments to be easily made. The cheek piece
comes set from the factory with cast in the
center position.
GRACOIL MODEL: Remove the butt
plate by inserting a
3
⁄32" Allen wrench
into the single hole on the right side of
the butt plate and turn the set screw
counterclockwise two turns to loosen the
screw (Figure 12). Removing the butt
plate gives access to the the hole found
on the upper left of the stock plate. (Figure
13). Loosen the comb by inserting a
7
⁄64"
Allen wrench through the hole found on
the upper left of the stock plate and into
the Allen screw located within the stock
plate (Figure 14). Turn wrench counter-
clockwise three full turns to loosen Allen
screw. This will sufficiently loosen the
Adjustable Comb, allowing adjustments to
be easily made. The cheek piece comes set
from the factory with cast in the center
position.
16

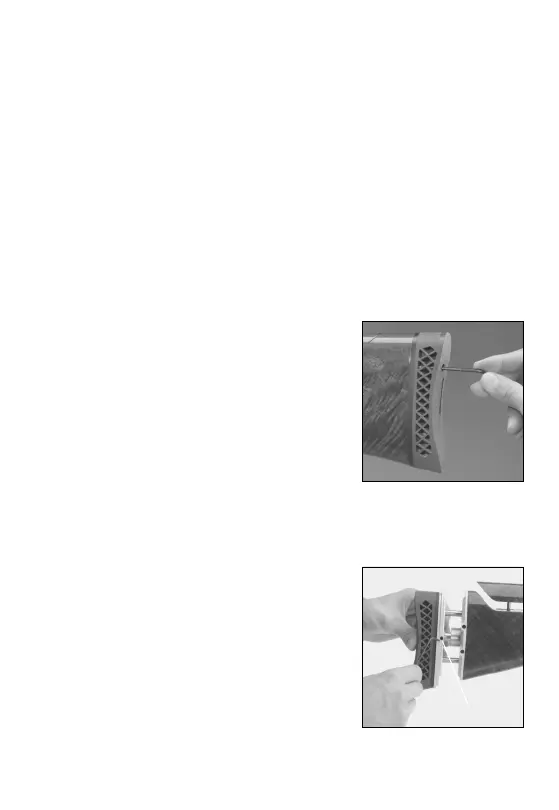

FIGURE 11
Standard Model
FIGURE 12
GraCoil Equipped Model
Insert Allen wrench here
