2 Carefully adjust comb to desired cast on or
cast off position (Figure 15) by sliding each
post equally in the desired direction. CAST
ON AND CAST OFF ADJUSTMENTS
ARE A MATTER OF TRIAL AND
ERROR. Adjust in small increments until
the desired sight picture on the rib is
reached. Each increment represents
1
⁄16
".
Move the posts to the right for cast off
and to the left for cast on.
3 Right handed shooters may desire some cast
off, with left handed shooters preferring
some cast on. The terminology is the same
for right or left-handed shooters. The net
effect is to move the cheek piece to allow
the face to move farther over the stock for
better eye-to-rib alignment.
4 When properly set, the front and rear
sight beads should line up perfectly each
time you shoulder your shotgun.
5 STANDARD MODEL: Once desired cast
has been obtained, tighten the Allen screw
in the recoil pad. The screw needs to be
firmly tightened, but be careful not to over
tighten. If drop at comb has not been set,
leave the Allen screw loose and proceed to
“Adjusting Drop at Comb.”
GRACOIL MODEL: Once desired cast has
been obtained, tighten the Allen screw in
the stock plate. The screw needs to be
firmly tightened, but be careful not to over
tighten. If drop at comb has not been set,
leave the Allen screw loose and proceed to
“Adjusting Drop at Comb.”

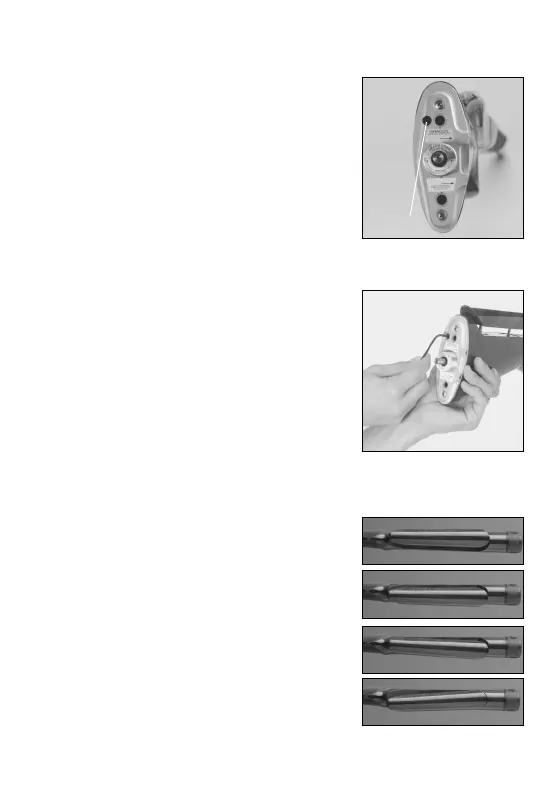

FIGURE 13
GraCoil Equipped Model
FIGURE 14
GraCoil Equipped Model
Insert Allen wrench here
FIGURE 15
With Allen screw loose, adjust
comb to desired position
