18

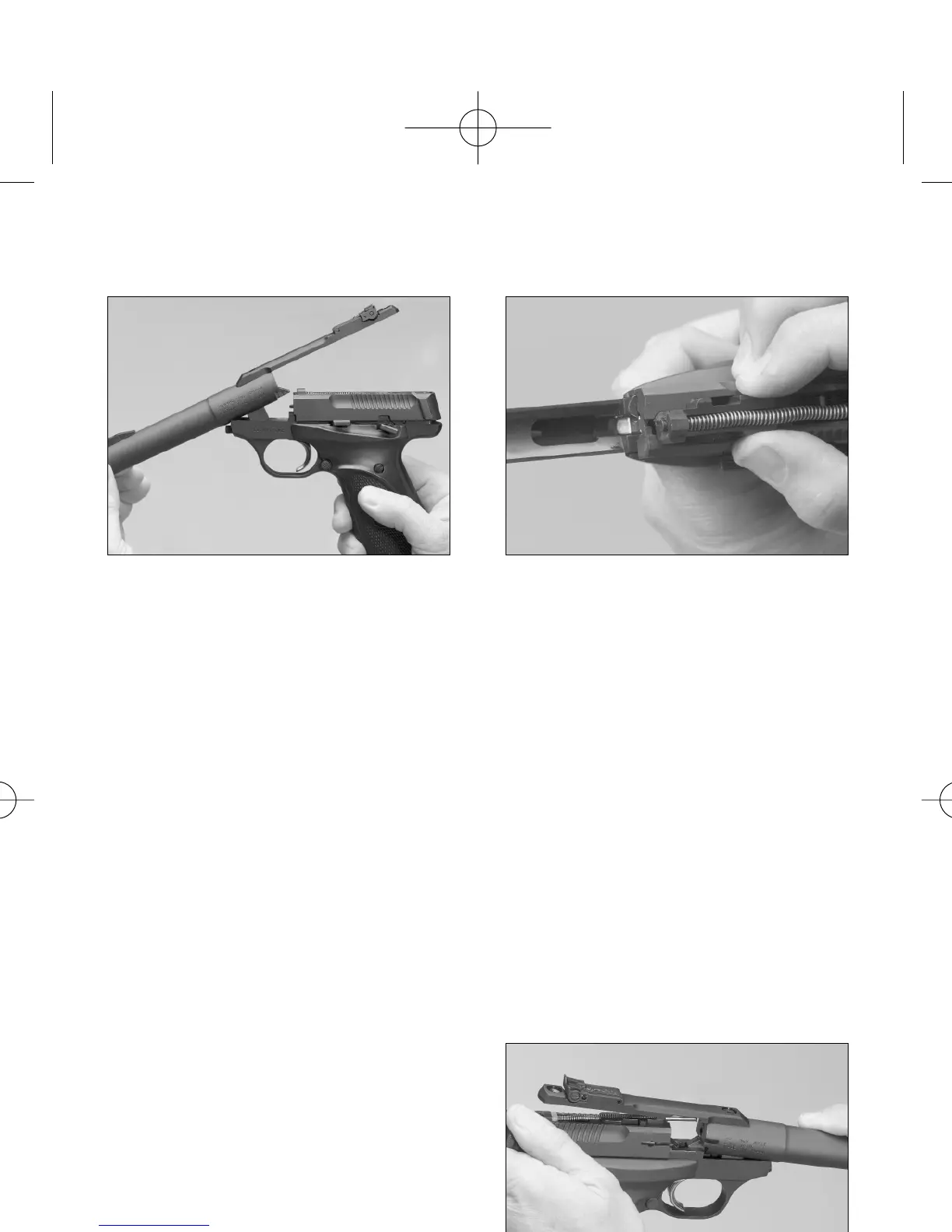

FIGURE 18
Pivot the barrel down and lift the barrel off
the frame.
FIGURE 19
Remove the recoil spring and slide.
4 Remove the recoil spring and slide. To do this pull the slide back
approximately one inch and lift the recoil spring guide rod upward
from the slide. The buffer will usually remain in place in the slide, in
front of the recoil post; however, it may stay affixed to the end of the
recoil spring guide rod. In either case, remove the firing pin housing
assembly and set it aside for cleaning (Figure 19).
5 Lift the slide from the frame. This is sufficient disassembly for all
practical cleaning and lubrication required. Further disassembly
should be performed only by a competent gunsmith or a Browning
service facility. Do not remove the grips from the pistol, as they
serve to retain and position internal parts.
REASSEMBLY
BUCK MARK, BUCK MARK PLUS
& BULLSEYE MODELS
1 Replace the slide on the frame.
2 Place the buffer on the end of the
recoil spring guide rod. Position
the buffer in front of the recoil
post and insert the end of the
recoil spring guide rod into the
small hole in the recoil post.
Grasp the sides of the firing pin
FIGURE 20
Tip the barrel block into the recess of the
frame and pivot the barrel up.
