NOTICE! loosen the sCrew only
enough to move the Comb.
Continuing to loosen the sCrew
will damage the Comb.
With the screw loose, remove
the comb from the shotgun.
2 With the comb removed, the
adjustment tower is exposed
(Figure 17). Insert a 4mm
Allen wrench into the hole
located between the uprights
on the adjustment tower
(Figure 18). Turn the wrench
counterclockwise to loosen the
screw. With the screw loose, the
adjustment tower should move
freely. Carefully adjust the
comb to the desired position by
sliding the adjustment tower in
the desired direction.
• Movetheposttotherightfor
more cast off.
• Movetheposttotheleftfor
more cast on.
3 When you have settled on the
position of the adjustment
tower, tighten the Allen screw
located between the uprights.
4 Reinstall the comb at the
desired cast position and comb
height using a 4mm Allen
located within the recoil pad (if
it was not left loose after setting
the cast.) Once the Allen
wrench is engaged with the
Allen screw, turn the wrench
counterclockwise three full
turns to loosen the Allen screw.
The comb will move freely, up
and down, on the stock
adjustment posts.
2 With the Allen screw loose,
carefully adjust the comb to
desired position (Figure 15) by raising or lowering each post
equally in the desired direction. Each increment represents
1
/16"
of movement.
• Todecreasedropatcomb,carefullyslideeachpostup
equally. Sliding the posts equally will reduce the chance of
the posts binding.
• Toincreasedropatcomb,carefullyslideeachpostdown
equally. Sliding the posts equally will reduce the chance of
the posts binding.
3 Once your desired drop at comb is obtained, tighten the Allen
screw in the recoil pad with a
7
/64" Allen wrench. The screw needs
to be firmly tightened, but be careful not to over-tighten.
ADJUSTING CAST ON AND CAST OFF (ORIGINAL CYNERGY, WOOD STOCK)
The adjustable comb on original Cynergy models features a total
adjustment range of ½" for cast on and cast off adjustment. The comb
comes set from the factory with cast in the center position.
1 Insert the provided 4mm Allen wrench into the hole found
on the upper left side of the comb and into the Allen screw
(Figure 16). Turn the wrench counterclockwise to loosen the screw
only enough to remove the comb.

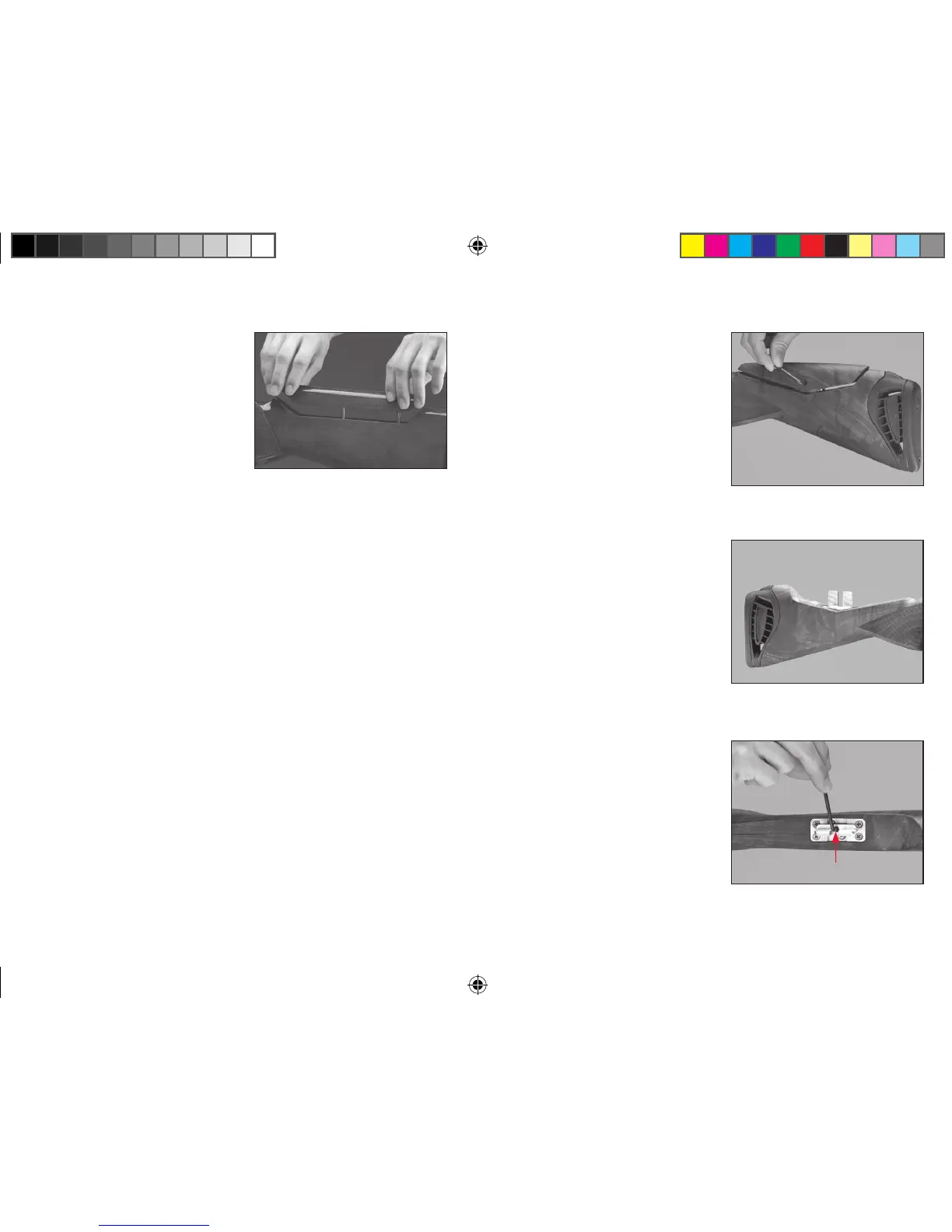

figure 17
With the comb removed, the adjustment tower
is exposed.
figure 18
Loosen the adjustment tower with the
Allen wrench.
figure 16
Loosen the screw between the height
adjustment uprights.
figure 15
With the Allen screw loose, adjust comb to
desired position by sliding each post up or
down in the desired direction.
