wrench. The screw needs to be firmly tightened, but be careful not
to over tighten.
ADJUSTING DROP AT COMB (ORIGINAL CYNERGY, WOOD STOCK)
The adjustable comb on original Cynergy models features a total
height adjustment range of ½".
do not go beyond the range of adjustment inCrements. should
this oCCur, the Comb will not be properly seCured to the
shotgun and Could result in injury or damage to the firearm.
1 Insert the provided 4mm Allen wrench into the hole found on the
upper left side of the comb and into the Allen screw (Figure 16).
Turn the wrench counterclockwise to loosen the screw.
NOTICE! loosen the sCrew only enough to move the Comb.
Continuing to loosen the sCrew will damage the Comb.
2 With the Allen screw loose, adjust the comb to the desired
position by moving the comb up or down on the adjustment
tower (Figure 17). Each increment on the height adjustment
tower represents
1
/16".
• Todecreasedropatcomb,slidethecombuponthe
adjustment tower.
•Toincreasedropatcomb,slidethecombdownonthe
adjustment tower.
3 Reinstall the comb at the desired cast position and comb height
using a 4mm Allen wrench. The screw needs to be firmly
tightened, but be careful not to over tighten.
ADJUSTING CAST ON AND CAST OFF
(ORIGINAL CYNERGY, COMPOSITE STOCK)
The adjustable comb on original Cynergy Composite stock models is
neutral (no cast on or cast off). Two optional combs with cast on or
off are available. They completely replace the neutral comb, and are
also fully adjustable in height. Extra recoil pads, spacers and combs
can be purchased by calling our Parts Dept. at 1-800-322-4626, or by
contacting your Browning dealer.
1 Remove the retaining pin from either side of the stock by tapping
it out with a
1
/8" drift punch and hammer (Figure 19).
2 Slide the comb forward off the stock. The new comb fits and
adjusts the same way your original comb does. It has ridges that
mate with the grooves in the stock. Each ridge represents
1
⁄8" in
height (Figure 20).
3 Slide the new comb in place, fitting it in the proper ridges to the
desired comb height. Shoulder the shotgun and check the comb
position before inserting the pin. When you have determined the
correct comb height, insert the pin. This will secure the comb
in place.
ADJUSTING DROP AT COMB (ORIGINAL CYNERGY, COMPOSITE STOCK)
1 Remove the retaining pin from either side of the stock by tapping
it out with a
1
/8" drift punch and hammer (Figure 19).
2 Slide the comb forward off the height adjustment ribs and off the
adjustment tower on the stock.
3 Each ridge represents on the adjustment tower
1
/8" in height
adjustment (Figure 20). Slide the new comb rearward into place,

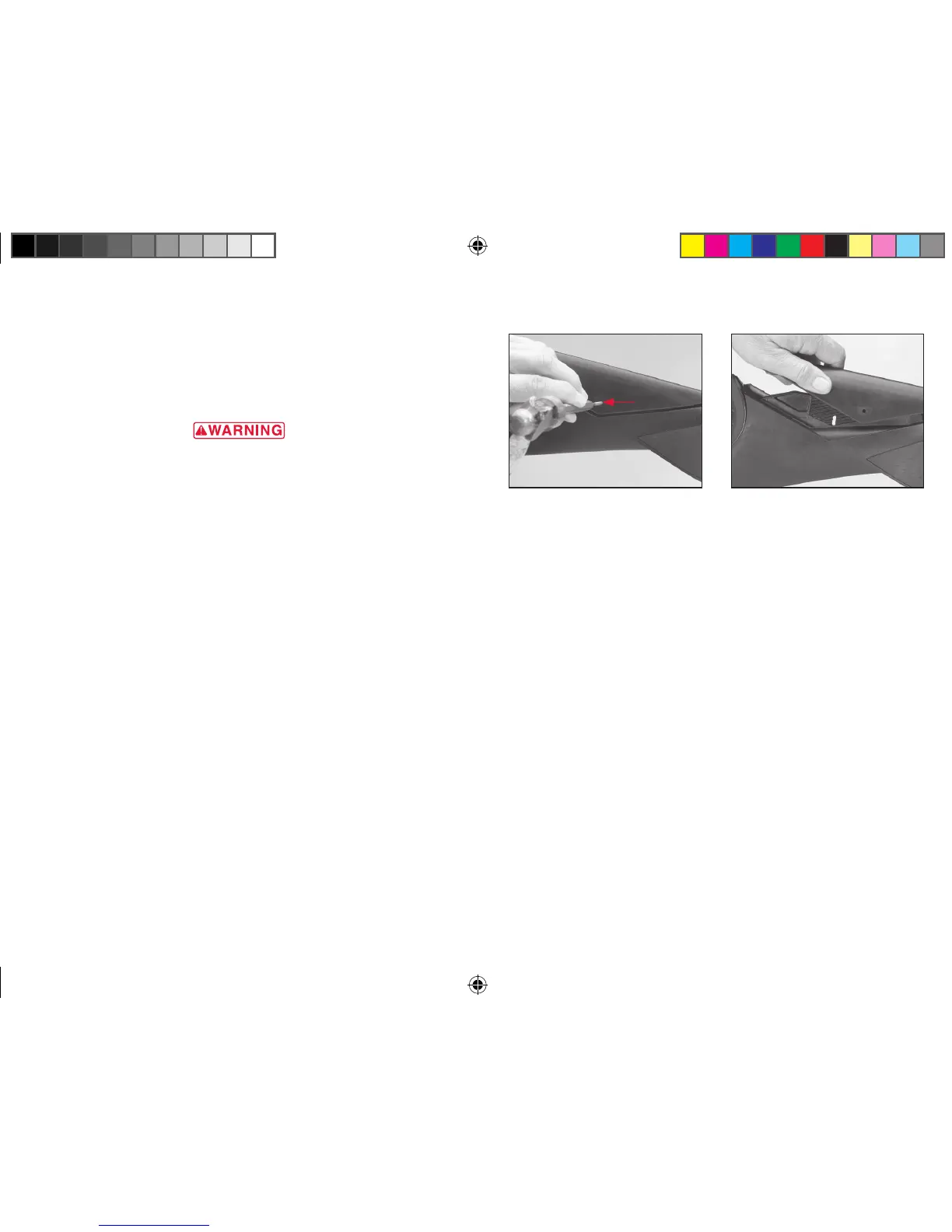

figure 20
Slide the comb into the ridges to obtain the
desired comb height.
figure 19
Tap out the retaining pin with a drift punch,
then slide the comb forward off the ribs.
