Browning Golden Eagle Mark III - LOWER SIDEBAND AND UPPER SIDEBAND BALANCE

10 pages

Save Page as PDF

To Previous Page

Loading...

Servicing Instructions/Field Alignment (Type Accepted Mode)1
Test Equipment Required/Pre-Set Front Panel Controls1
Refer to Diagram for Typical Hookup1
Idle Current Check/Adjust Oscillator/Peak for Max RF Power1
Set Carrier Oscillators on Either Side of Crystal Filter2
Carrier Balance2
Frequency Adjustment2
RF Power Balance3
SSB/AM Transmitter Test Set-Up4
Golden Eagle Mark III Receiver5
Gain Measurements6
Preset Front Panel Controls6
Signal Level for -5 Volts at Detector6
Front Panel Control Settings7
Dial Calibration8
Ssb9

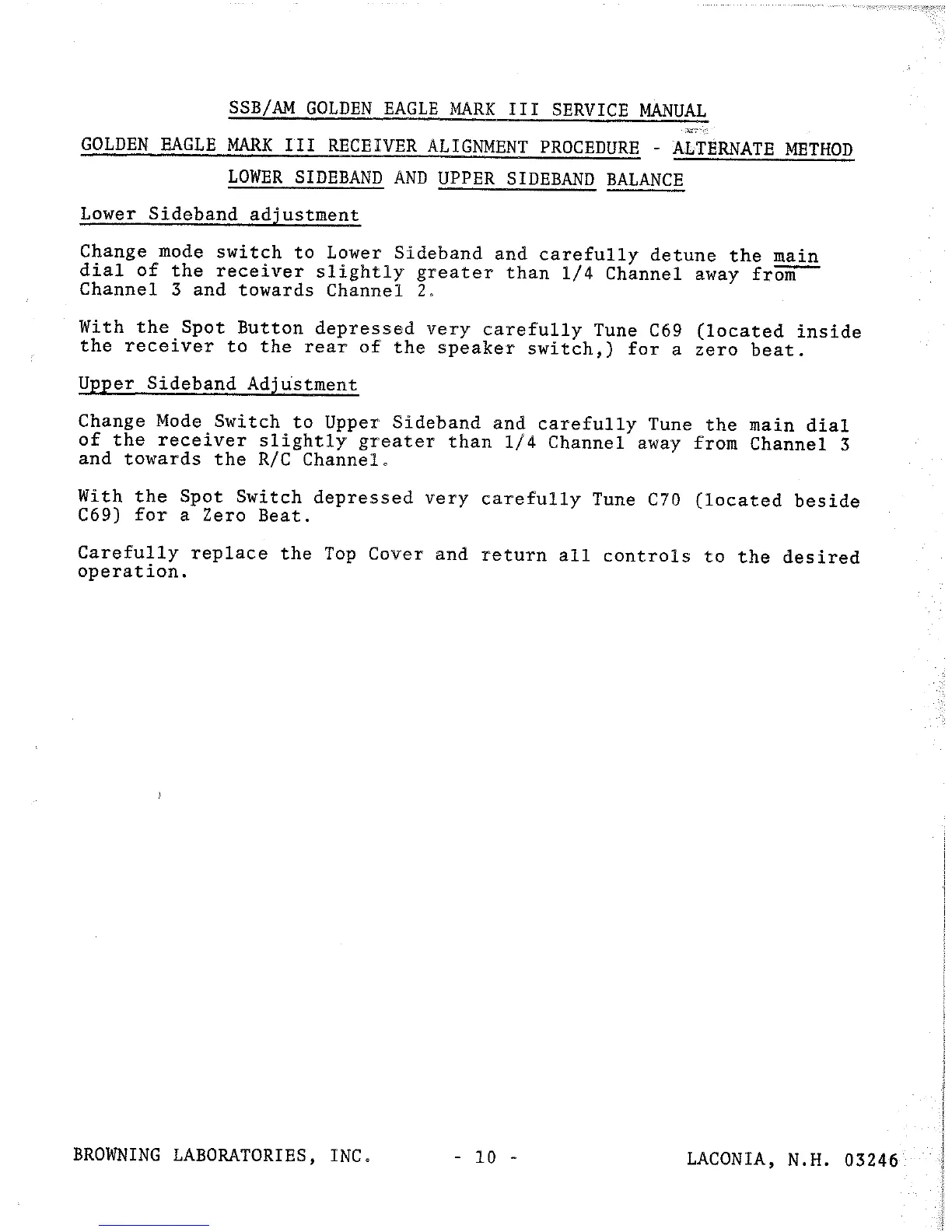

Alternate Method - Field Alignment for Golden Eagle Mark III Receiver Lower Sideband and Upper Sideband Balance9
Lower/Upper Sideband Adjustment10
