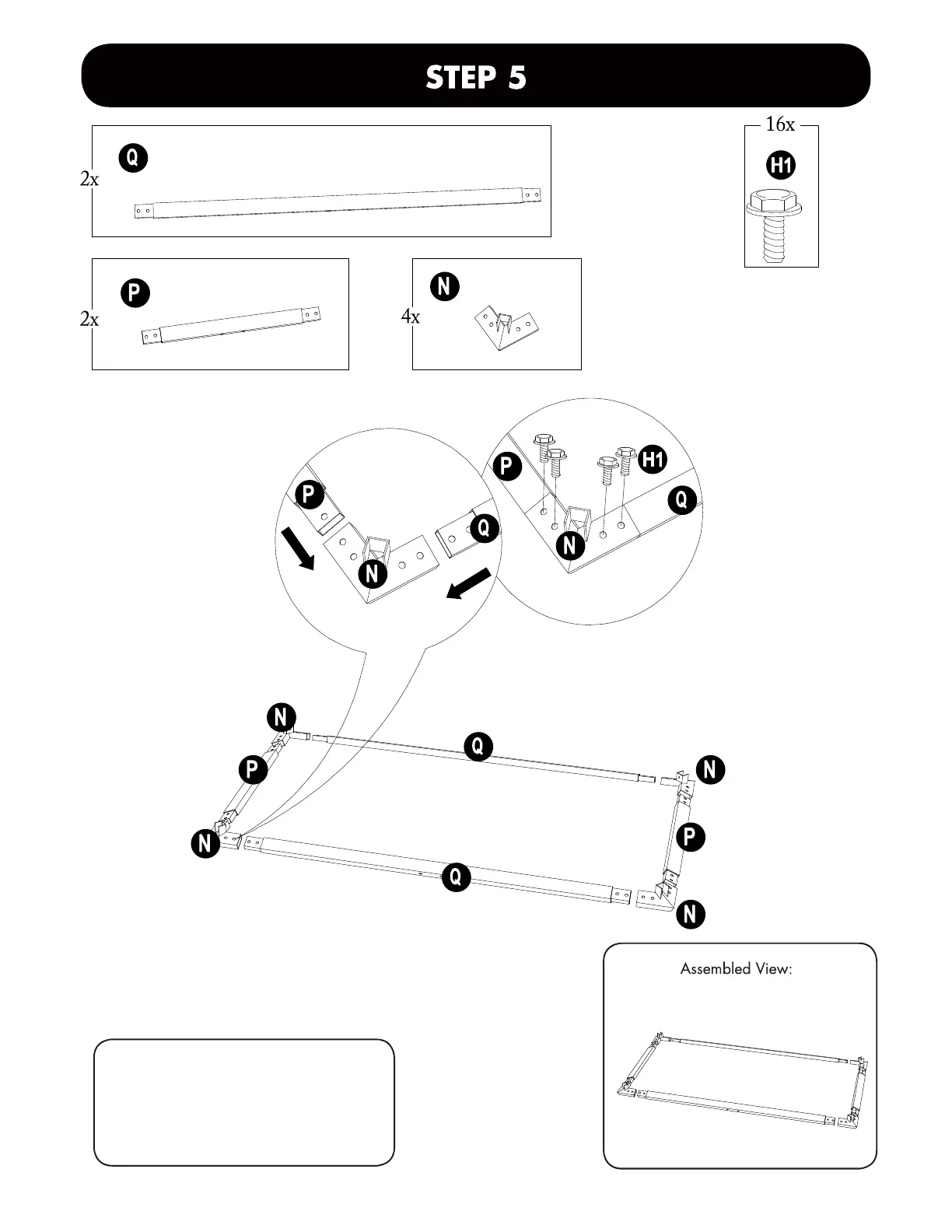

Assemble the Big roof frame long side(Q), Big
roof frame short side(P) and Big top
connector(N) by Bolt(H1), tighten with
wrench(HW1).
12/29
