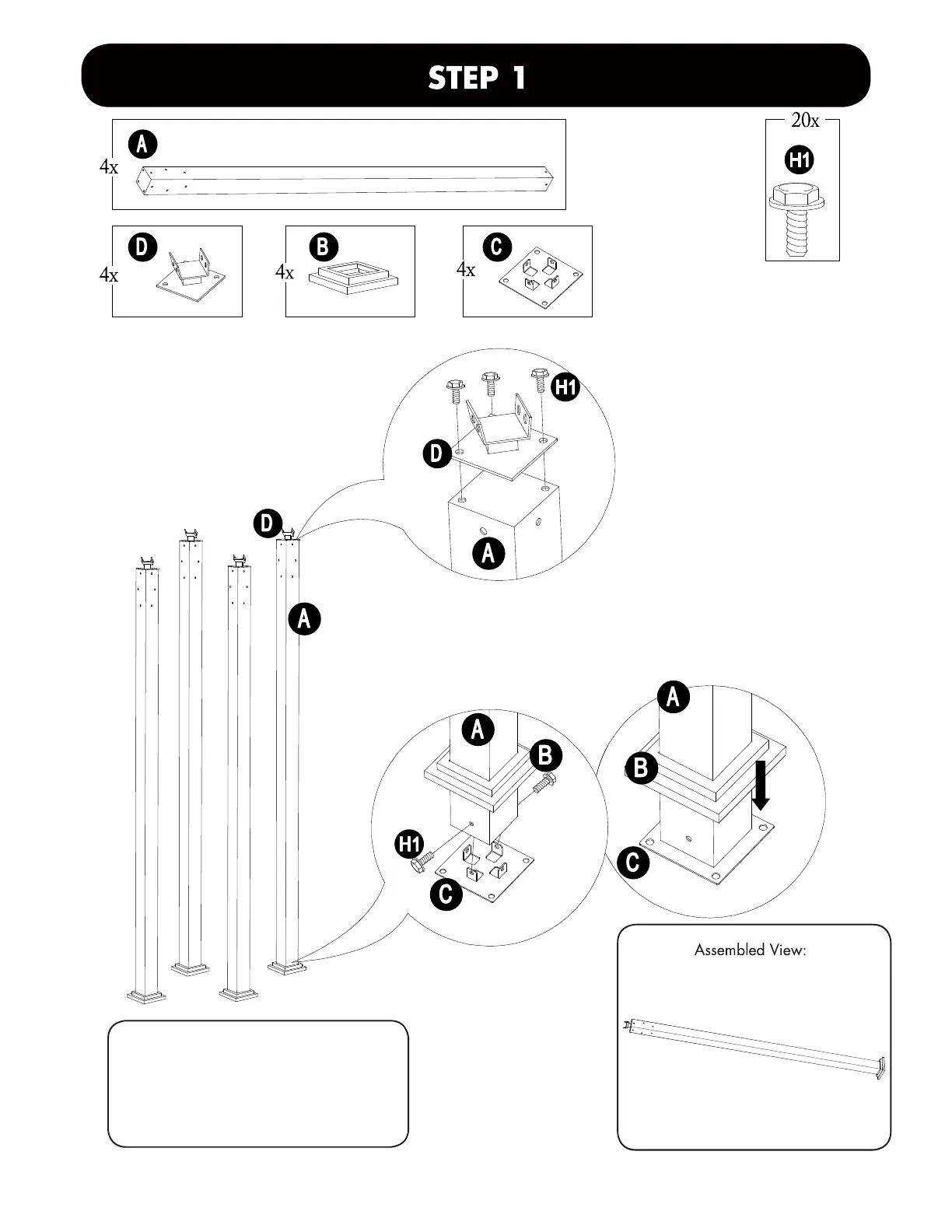

Attach the Base plate(C) and Base cover (B) to
the Post(A) by by Bolt(H1), then attach
Connector for cant beam(D) to the upper
Post(A), tight them by Wrench(HW1)
