20/26

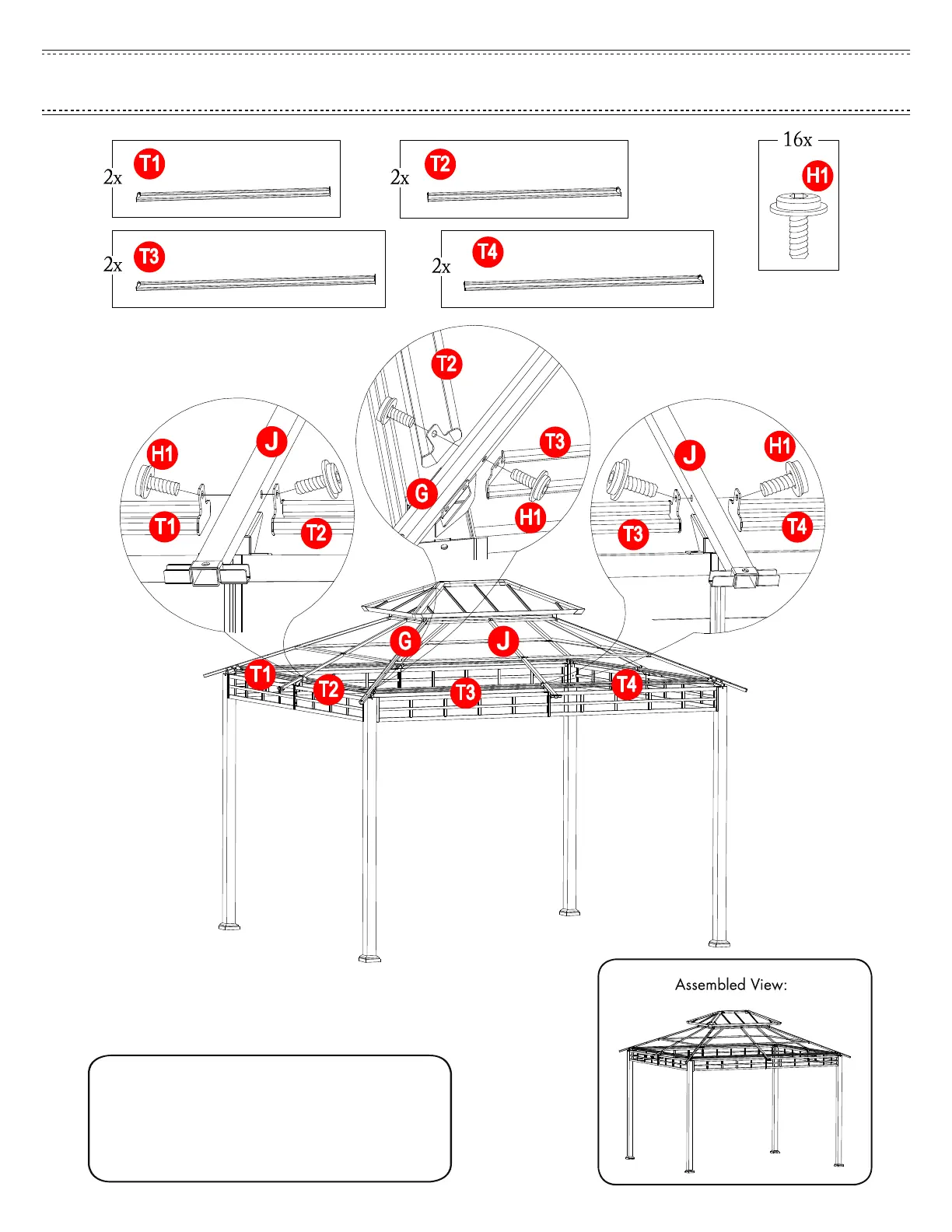

STEP 12
Assemble the Short Mosquito Netting Rod
(T1)&(T2) to Middle Beam(J) and Rafter(G) with
bolts(H1), Assemble the Long Mosquito Netting
Rod(T3)&(T4) to Middle Beam(J) and Rafter(G)
with bolts(H1), tighten by wrench (HW1).
