OILING SYSTEM
OILING RATES
8
OILING RATES
EMM programming controls the rate of oil injec-
tion. Use engine diagnostics software to access
this EMM feature.
Oil Injection Rate
The TC-W3 OIL control setting allows the out-
board to be run on TC-W3 outboard lubricant.
Changing to the optional XD100 OIL CONTROL
setting requires the use of Evinrude XD100 out-
board lubricant. Running the outboard in XD100
OIL mode can reduce oil consumption by approxi-
mately one third. See Oil Control on p. 109.
Powerhead oil programming labels are provided
to identify EMM oil programming. Install the cor-
rect label to alert user to specific oil requirements.
IMPORTANT: Make sure the engine label and
boat decal match EMM programming.
XD100 Outboard Oil Decal
Evinrude/Johnson XD100 oil decals are available
to label boats equipped with Evinrude E-TEC out-
boards that have been programmed for the
XD100 oil injection ratio.
Use the XD100 Outboard Oil Decal, P/N 352369,
to accurately inform the boat operator of the
XD100 outboard oil requirement.
Install decal(s) in one or more of the highly visible
recommended locations to alert the outboard
operator(s).
Recommended Locations:
• Dashboard/deck of boat, adjacent to key switch
• Deck of boat, adjacent to the remote oil fill
• Deck of boat, adjacent to oil tank assembly
• Oil tank cover
• Cover of oil tank compartment
• Attach to oil tank or oil fill cap
IMPORTANT: Make sure the engine label and
boat decal match EMM programming.
An optional XD100 Oil Tank Tag, P/N 352927, is
available to label oil tanks on outboards pro-
grammed to operate on XD100 outboard oil.
Break-in Oiling
The Break-in Oil setting doubles the oiling ratio for
the first two hours of operation above 2000 RPM.
See Oil Control on p. 109.

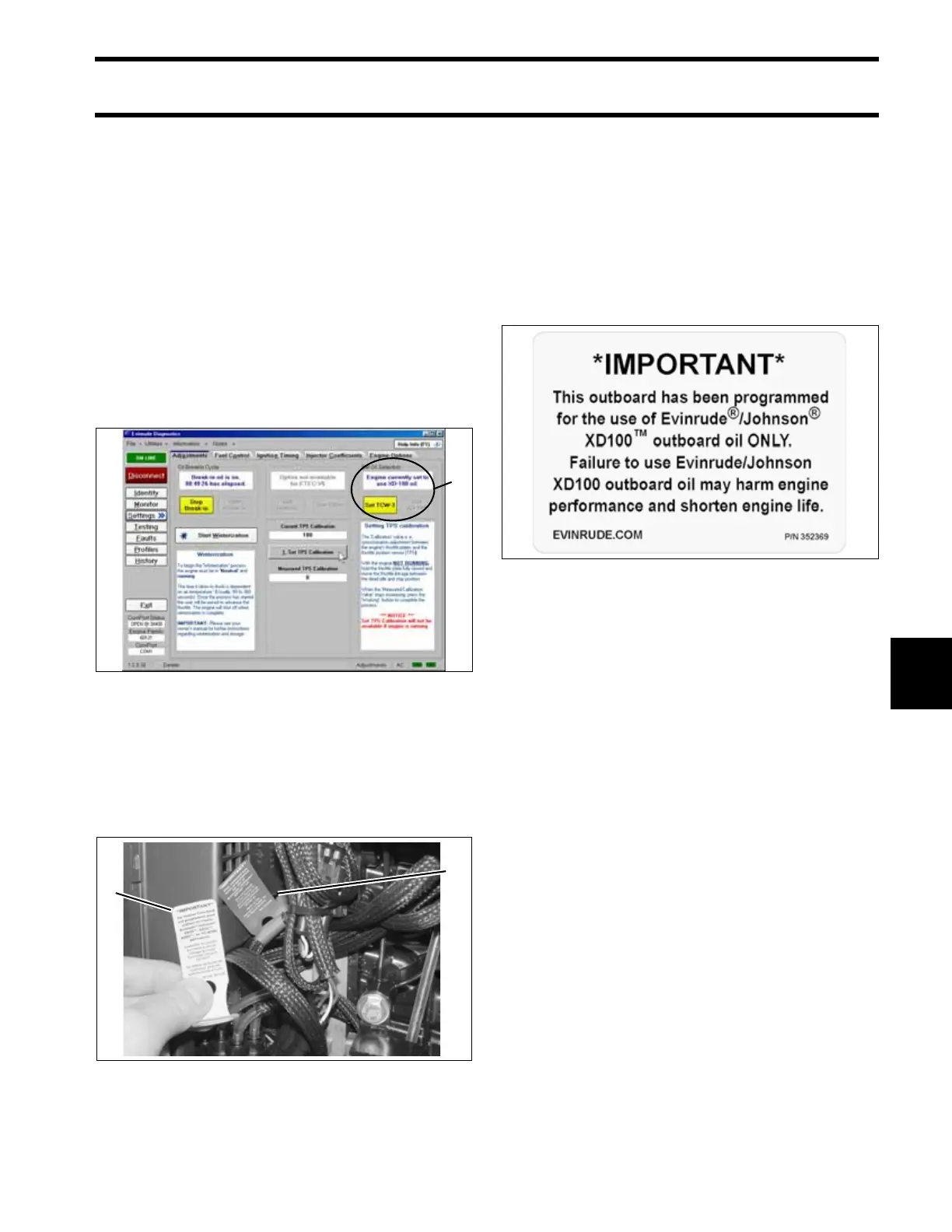

1. Oil control setting 005140
1. Evinrude /Johnson XD30 outboard lubricant (TC-W3)
YELLOW label
2. Evinrude /Johnson XD100 outboard lubricant (Premium)
BLUE label (Installed)
004964
1
2
1
XD100 Outboard Oil Decal 004522
