MIDSECTION
STERN BRACKET

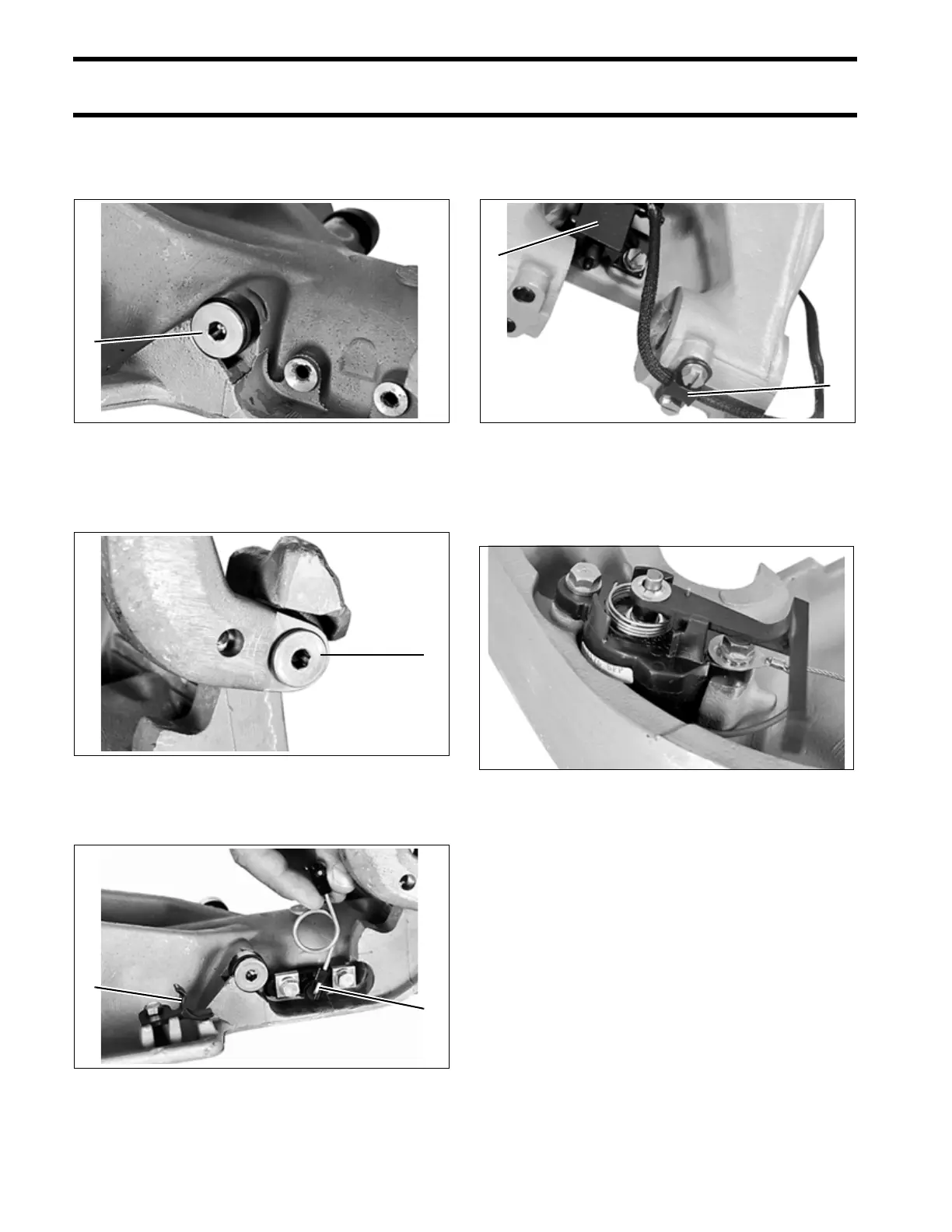

Install the two trim rod rollers on the swivel
bracket. Torque to 216 to 240 in. lbs. (25 to 27
N·m).
Install the trail lock and bushings in the swivel
bracket. Torque to 216 to 240 in. lbs. (25 to 27
N·m).
Install the trail lock spring in the swivel bracket
and connect the spring to the trail lock.
Install the tilt limit switch and retainer on the swivel
bracket. Torque screws to 40 to 50 in. lbs. (4.5 to
5.7 N·m).
Route the trim sender wires through the braided
tube, and install the sender unit in the port stern
bracket.
Install the upper and lower steering shaft bushings
and new seals in the swivel bracket. Both seal lips
face out.
• Coat the outside surfaces of seals with Gasket
Sealing Compound.
1. Trim rod roller 30754
1. Trail lock bushing 30755
1. Trail lock spring
2. Trail arm retainer
30756
1
1
1
2
1. Tilt limit switch
2. Retainer
30758
30760
2
1
