INSTALLATION AND PREDELIVERY
BOAT RIGGING
Control Cable Identification
IMPORTANT: Control cable function must be
identified before rigging outboard.
Identify each control cable:
• Put the control handle into NEUTRAL position.
The throttle cable casing guide will retract com-
pletely and the shift cable casing guide will go to
the midpoint of its travel.
Extend the control cables and lubricate them with
Triple-Guard grease.

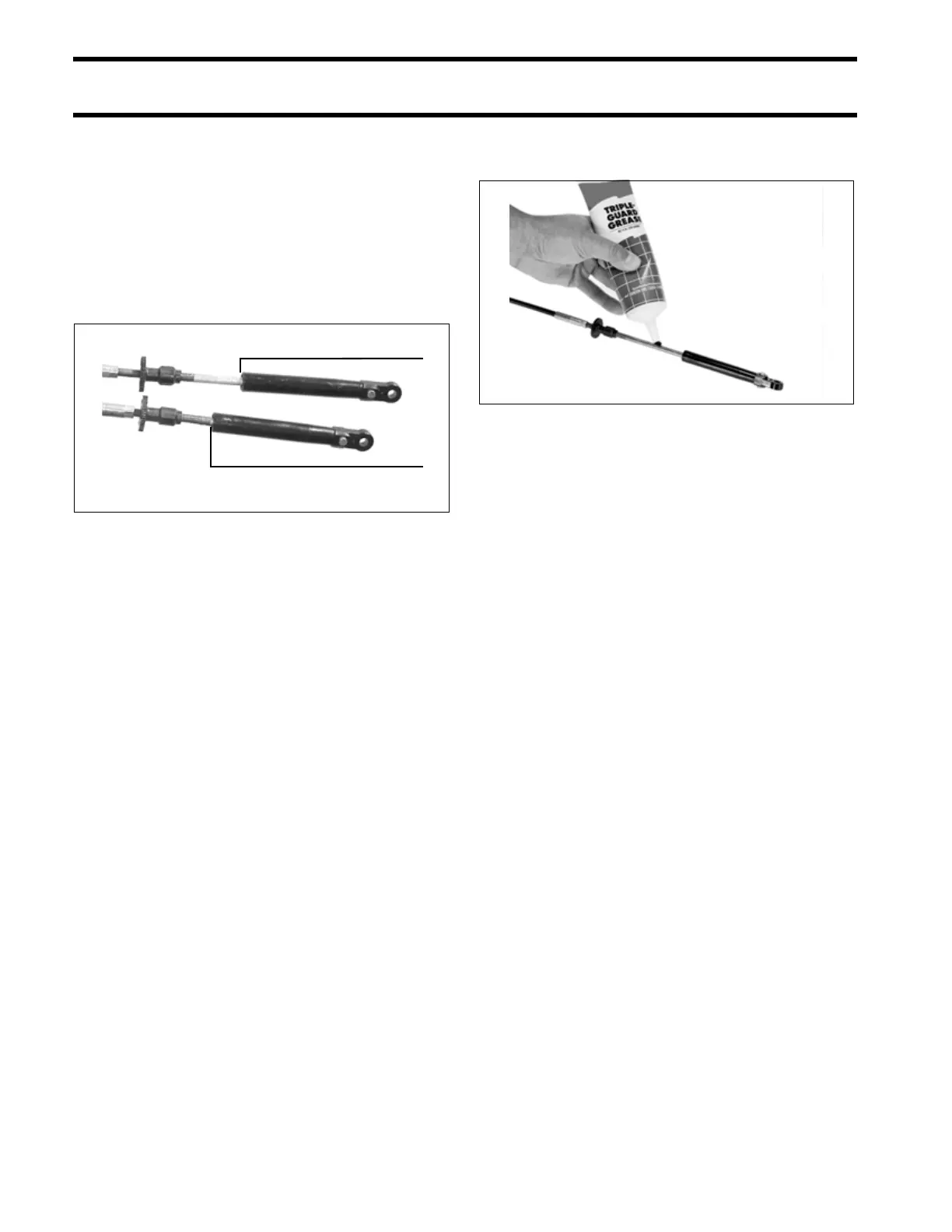

1. Shift cable casing guide extended to midpoint
2. Throttle cable casing guide retracted
DP0811
1
2
30501
