56
MMAAIINNTTEENNAANNCCEE
The following maintenance proce-
dures will help you maintain your
Evin-
rude
outboard.

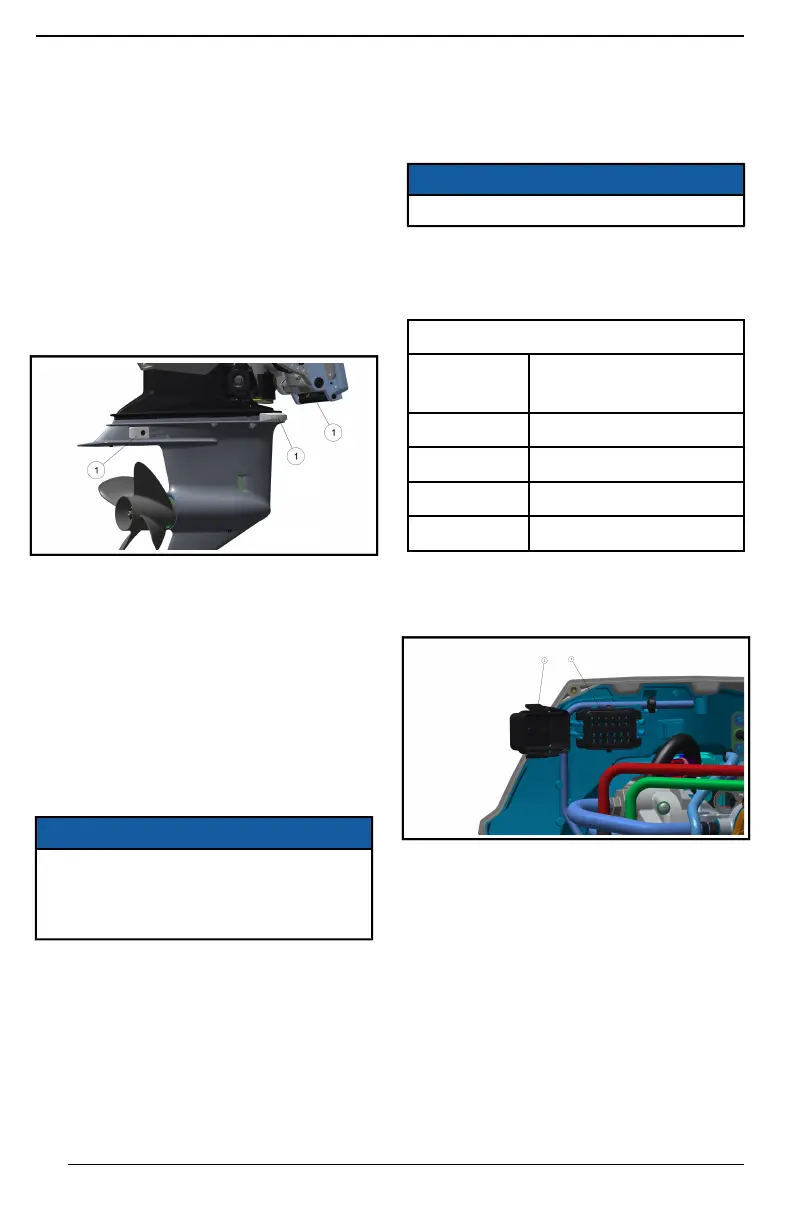

AAnnooddeess
Your outboard is equipped with one or
more sacrificial anodes that protect it
from galvanic corrosion. Disintegra-
tion of the anode is normal and indi-
cates it is working. Check each anode
periodically. Replace anodes smaller
than 2/3 their original size. See your
Dealer for replacements.
1. Anode
Galvanic corrosion destroys under-
water metal parts and can occur in
fresh or salt water; however, salt,
brackish, and polluted waters will ac-
celerate corrosion.
Metal-based anti-fouling paint on the
outboard and the use of improperly in-
stalled shore power in the area of your
moored boat will also accelerate
corrosion.
NNOOTTIICCEE
NNEEVVEERR ppaaiinntt tthhee aannooddee,, iittss ffaass--
tteenneerrss,, oorr iittss mmoouunnttiinngg ssuurrffaaccee..
PPaaiinnttiinngg wwiillll rreedduuccee iittss ccoorrrroossiioonn
pprrootteeccttiioonn..
FFuusseess
A blown fuse could prevent the engine
from starting.
The fuse box is located under the en-
gine covers, and requires the removal
of the starboard cover to gain access.
Please see your local servicing
Evinrude
dealer or consult the
Evin-
rude
service manual.
FFuussee RReeppllaacceemmeenntt
NNOOTTIICCEE
UUssee oonnllyy ffuusseess ooff tthhee ssaammee rraattiinngg
Your outboard uses the following Mini-
fuses. See your dealer for replace-
ment fuses.
FFuusseess
FFuussee
RRaattiinngg
RReeppllaacceemmeenntt FFuussee
PP//NN
3 3011805
5
514764
10 514766
30 3011729
Remove the starboard engine cover.
Remove the cover from fuse box. Re-
place the failed fuse.
1. Fuse Box
2. Fuse Box Cover
GGeeaarrccaassee LLuubbrriiccaanntt LLeevveell
1. Remove the starboard engine cov-
er from the engine.
2. Inspect the level of oil in the oil
reservoir.
