BSTA 180 – 500 BBV 190/85
BBV 190/85H
2

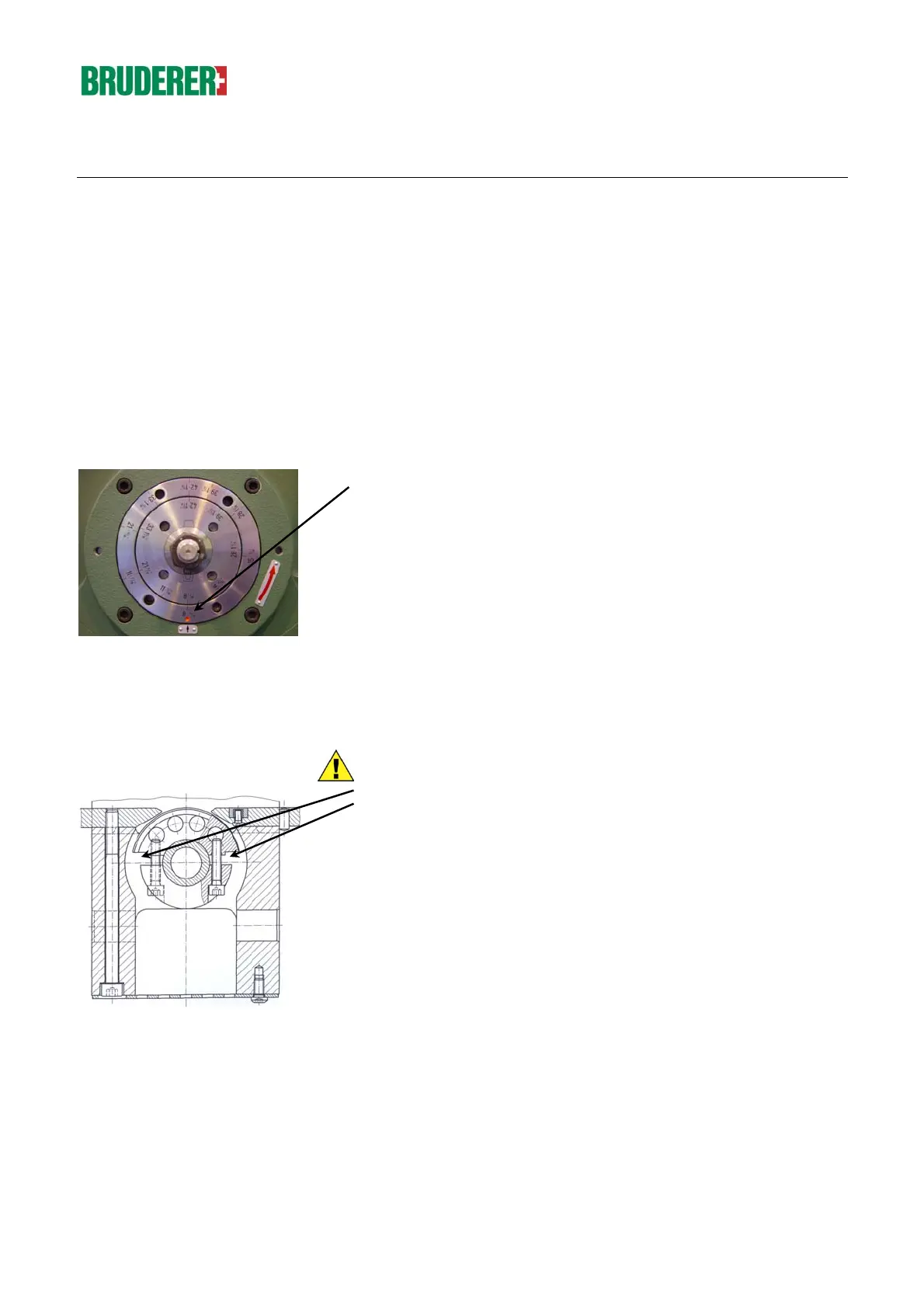

Disassembly of the clamping bar and the feed rollers
1. Disassemble clamping bar
2. To access the clamping screws of the rollers M6x30 the eccentric
shaft has to be turned accordingly.
Installation of the lower feed roller
1. Turn to BDC position.
2. Install the tension bracket 12116.00.0.00 and the lower feed roller
12115.00.0.00 with the screws M6x30 but do not tighten the
screws.
Important: The distance between the tension bracket and the
feed roller has to be exactly the same on both sides (check
eventually with the feeler gauge).
3. At the side take the average of the feed roller to the clamping bar.
4. Adjust the feed roller horizontally. (Press has to be at BDC or TDC
position, if there is no phase quadrature.)
5. Measure the distance between the roller ends and the base
surface of the housing with a ruler and take the average.
6. Tighten the four screws M6x30 with Loctite 243 and a torque of
14Nm.
