BSTA 180 – 500 BBV 190/85
BBV 190/85H
4

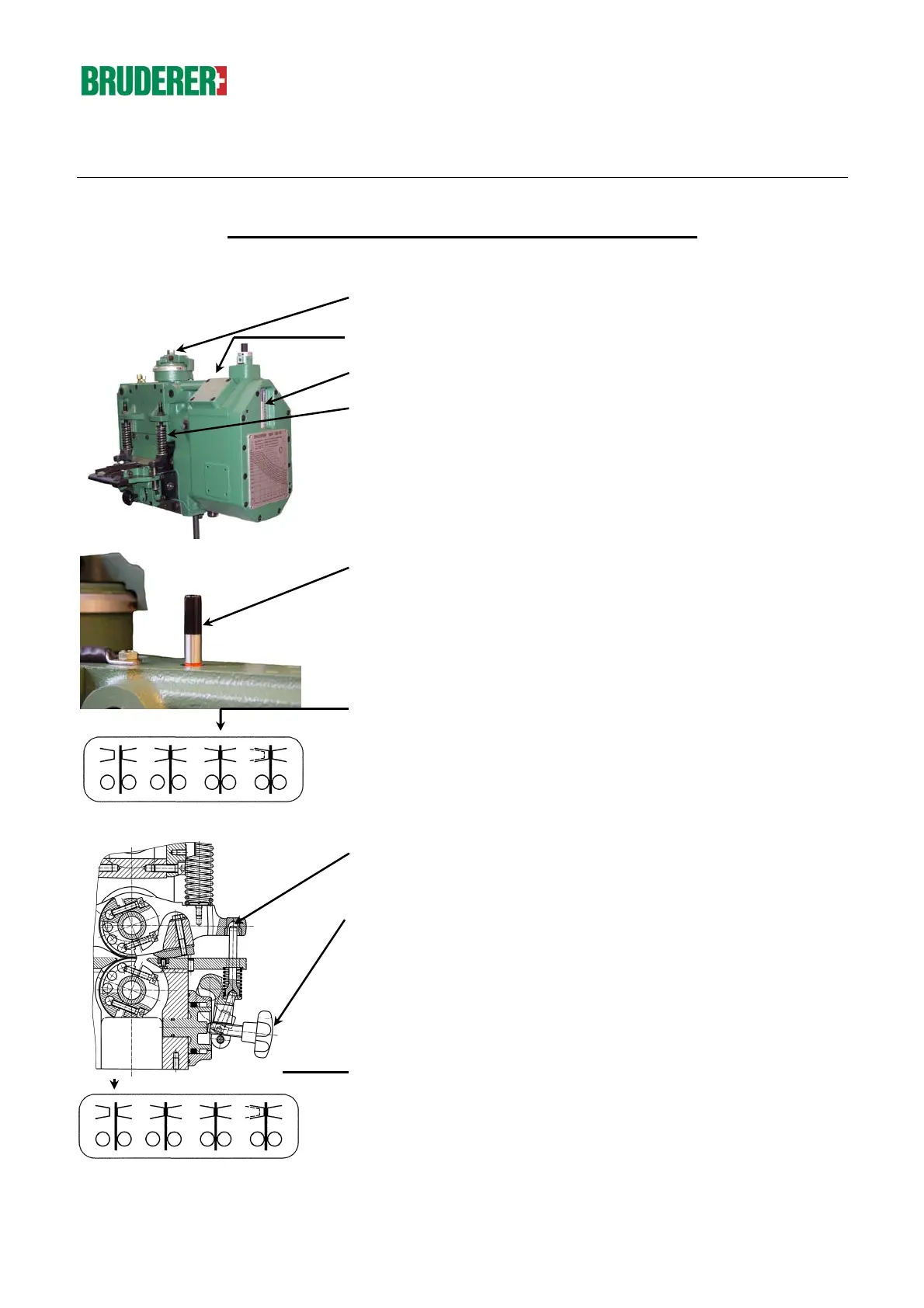

Basic setting of the feed rollers and the clamping bar
1. Set the material thickness scale to zero.
2. Remove the plug screw M14x1,5.
3. Set feeding length to 20mm.
4. Set the spring force of the roller press springs to 10mm.
5. To position the feeder you need a piece of steel with Ø 12mm and
a length of 150mm.This bolt has to be put into the drilling of the
plug screw M14x1,5. By turning the crank shaft slowly and carefully
you will find the position of the hose connector 12140.00.1.00. This
adjusting drilling is the feeding start for a BBV feeder installed on
the left hand and the feeding end for a BBV feeder installed on the
right hand side. (feeding direction = feeder installation).
6. Set to control valve to feeding without roller lifting.
7. The lifter spindles 12330.00.0.00 may not lean on the lifter seats
12122.00.0.00 this may lead to a misadjustment.
Should the lifter spindle be fixed, the adjusting screw of the roller
lifter has to be turned back.
8. Set the control valve to open position.
