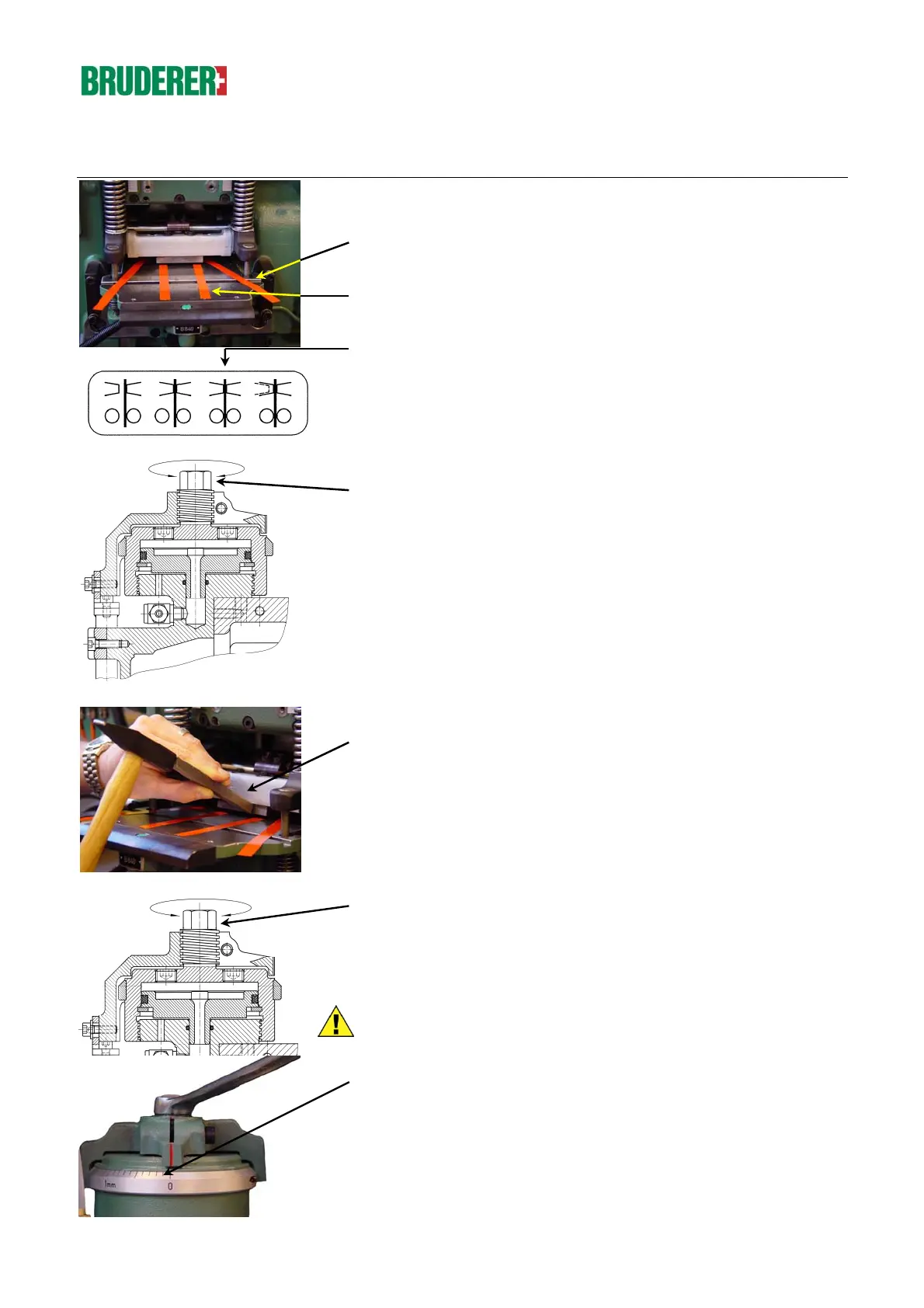

9. Push two foils with a thickness of 0,02mm under the feed rollers on
the left and the right hand side (length of foil approx. 250mm).
10. Place two foils with a thickness of 0,02mm on the left and the right
hand side between the clamping bar and strip feeding table.
11. Set the control valve to feeding without roller lifting position.
12. Adjust the strip thickness until the two foils between the feed rollers
are fixed however the two foils between the clamping bar have to
be lose.
13. The clamping bar has to be adjusted by carefully hitting with a
small hammer and a key steel so that the two foils under the
clamping bar are fixed and can not be pulled out. (the two foils
under the feed rollers have to remain fixed)
14. By turning the strip thickness adjustment clockwise (direction 0)
pressure is given on the feed roller and the clamping bar is lifted.
Turn until the two foils under the clamping bar can be moved.
Should only one foil be movable, turn until the second one can be
moved as well Please mark the setting on the scale.
Important:: In this case the adjustment process has to be
repeated starting with item 12.
