BRUEL & KJAER 2230 Service

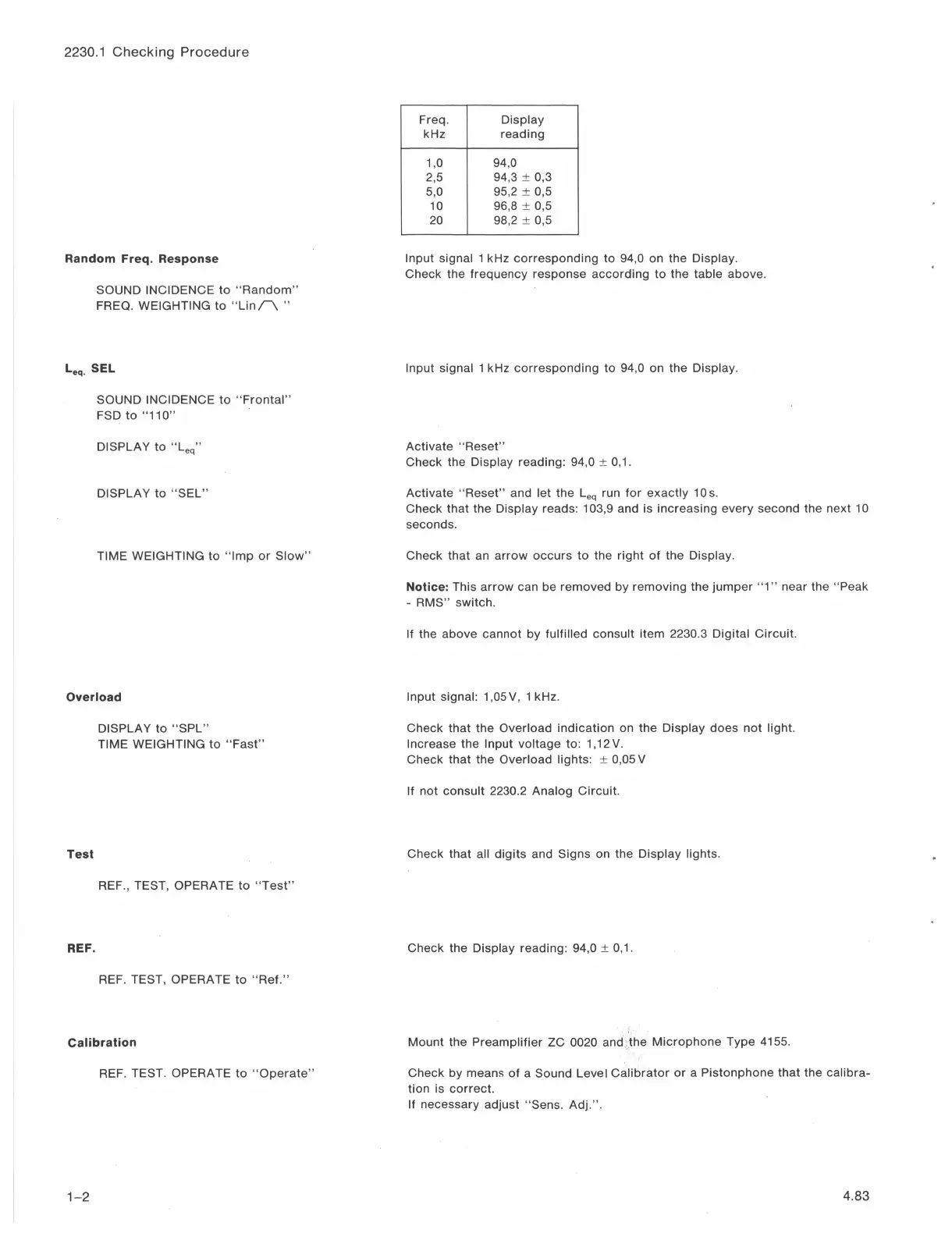

2230.1 Checking Procedure
Random Freq. Response
SOUND INCIDENCE to "Random"
FREQ. WEIGHTING to "Lin 1\ "
Leq. SEL
SOUND INCIDENCE to "Frontal"
FSDto"110"
DISPLAY to " Leq"
DISPLAY
to "SEL"
TIME WEIGHTING to "Imp or Slow"
Overload
DISPLAY to "SPL"
TIME WEIGHTING to "Fast"
Test
REF., TEST, OPERATE to "Test"
REF.
REF. TEST, OPERATE to "Ref."
Calibration
REF. TEST. OPERATE to "Operate"
1-2
Freq. Display
kHz
reading
1,0
94,0
2,5 94,3 ± 0,3
5,0
95,2 ± 0,5
10
96,8 ± 0,5
20
98,2 ± 0,5
Input signal
1 kHz corresponding to 94,0 on the Display.
Check the frequency response according to the table above.
Input signal 1 kHz corresponding to 94,0 on the Display.
Activate "Reset"
Check the Display reading: 94,0 ± 0, 1.
Activate " Reset" and let the Leq run for exactly 10 s.
Check that the Display reads: 103,9 and is increasing every second the next 10
seconds.
Check that an arrow occurs to the right of the Display.
Notice: This arrow can be removed by removing the jumper "1" near the "Peak
- RMS" switch.
If the above cannot by fulfilled consult item 2230.3 Digital Circuit.
Input signal: 1,05 V, 1kHz.
Check that the Overload indication on the Display does not light.
Increase
the Input voltage to: 1,12 V.
Check that the Overload lights : ± 0,05 V
If not consult 2230.2 Analog Circuit.
Check that all digits and Signs on the Display lights.
Check the Display reading: 94,0 ± 0, 1.
Mount the Preamplifier ZC 0020 and .;, the Microphone Type 4155.
Check by means of a Sound Level Calibrator or a Pistonphone that the calibra-
tion is correct.
If necessary adjust "Sens. Adj. ".
