BRUEL & KJAER 2230 Service

BROEL & KJIER
Nrerum- Denmark
Detector Balance
POWER: "On"
REF., TEST, OPERATE: "Operate"
FSD: "11 0 dB "
FREQ. WEIGHTING: "Lin 1\ "
EXT. FILTER: "In"
SOUND INCIDENCE: "Frontal"
DISPLAY: "SPL"
TIME WEIGHTING: "Fast"
DETECTOR: "RMS"
ALL-MAX/MIN-PAUSE : "All"
Pr eamp Offset
FSD to " 70 dB "
EXT. FILTER to " Out "
FSDto " 110"
Weighting Network
FREQ. WEIGHTING to " C"
FREQ. WEIGHTING to "A"
Overload
EXT. FILTER to " In"
FREQ. WEIGHTING to " Lin 1\ "
Reference Generator
4.83
REF. , TEST, OPERATE to " Ref."
EXT. FILTER to "Out "

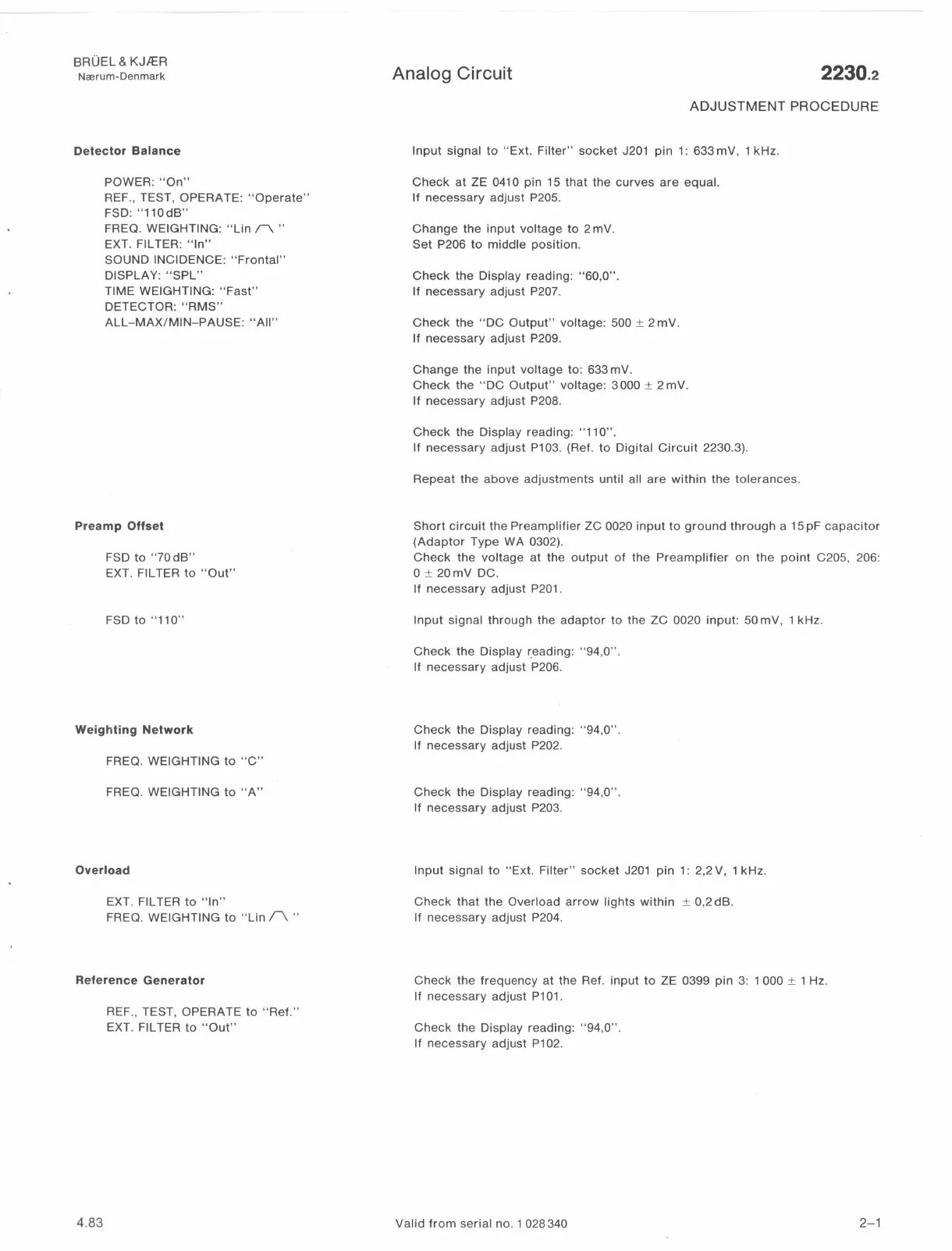

Analog Circuit
2230.2
ADJUSTMENT PROCEDURE
Input signal to " Ext. Filter" socket J201 pin 1: 633 mV , 1kHz .
Check at ZE 0410 pin 15 that the curves are equal.
If necessary adjust P205.
Change the input voltage to 2 mV.
Set P206 to middle position.
Check the Display reading: "60,0".
If necessary adjust P207.
Check the "DC Output" voltage: 500 ± 2 mV.
If necessary adjust P209.
Change the input voltage to : 633 mV .
Check the " DC Output " voltage : 3 000 ± 2 mV.
If necessary adjust P208.
Check the Display reading: "11 0" .
If necessary adjust P1 03. (Ref. to Digital Circuit 2230. 3) .
Repeat the above adjustments until all are within the tolerances.
Short circuit the Preamplifier ZC 0020 input to ground through a 15 pF capacitor
(Adaptor Type W A 0302).
Check the voltage at the output of the Preamplifier on the point C205, 206:
0
± 20mV DC.
If necessary adjust P201.
Input signal through the adaptor to the ZC 0020 input: 50 mV , 1kHz.
Check the Display r.eading: " 94,0".
If
necessary adjust P206.
Check the Display reading: "94,0".
If necessary adjust P202.
Check the Display reading: "94 , 0".
If necessary adjust P203.
Input signal to " Ext. Filter" socket J201 pin 1: 2,2 V, 1 kHz.
Check that the Overload arrow lights within ± 0,2 dB.
If necessary adjust P204.
Check the frequency at the Ref. input to ZE 0399 pin 3: 1 000 ± 1 Hz.
If necessary adjust P1 01 .
Check the Display reading: " 94,0".
If
necessary adjust P1 02.
Valid from serial no. 1 028 340
2-1
