Chapter 7 — Mechanical Parts
Mains Switch and Fuseholder
Acquisition Front-end Type 2825
Service Manual
BI 5033 –12e
7
−
3
7.1.2 Removing the Backplane
1. Start by removing the power supply as described above
2. Unscrew the 6 screws from the back of the backplane panel
3. Remove the back panel together with the backplane
4. Unscrew the screws holding the backplane to the back panel
5. Remove the backplane
7.2 Mains Switch and Fuseholder

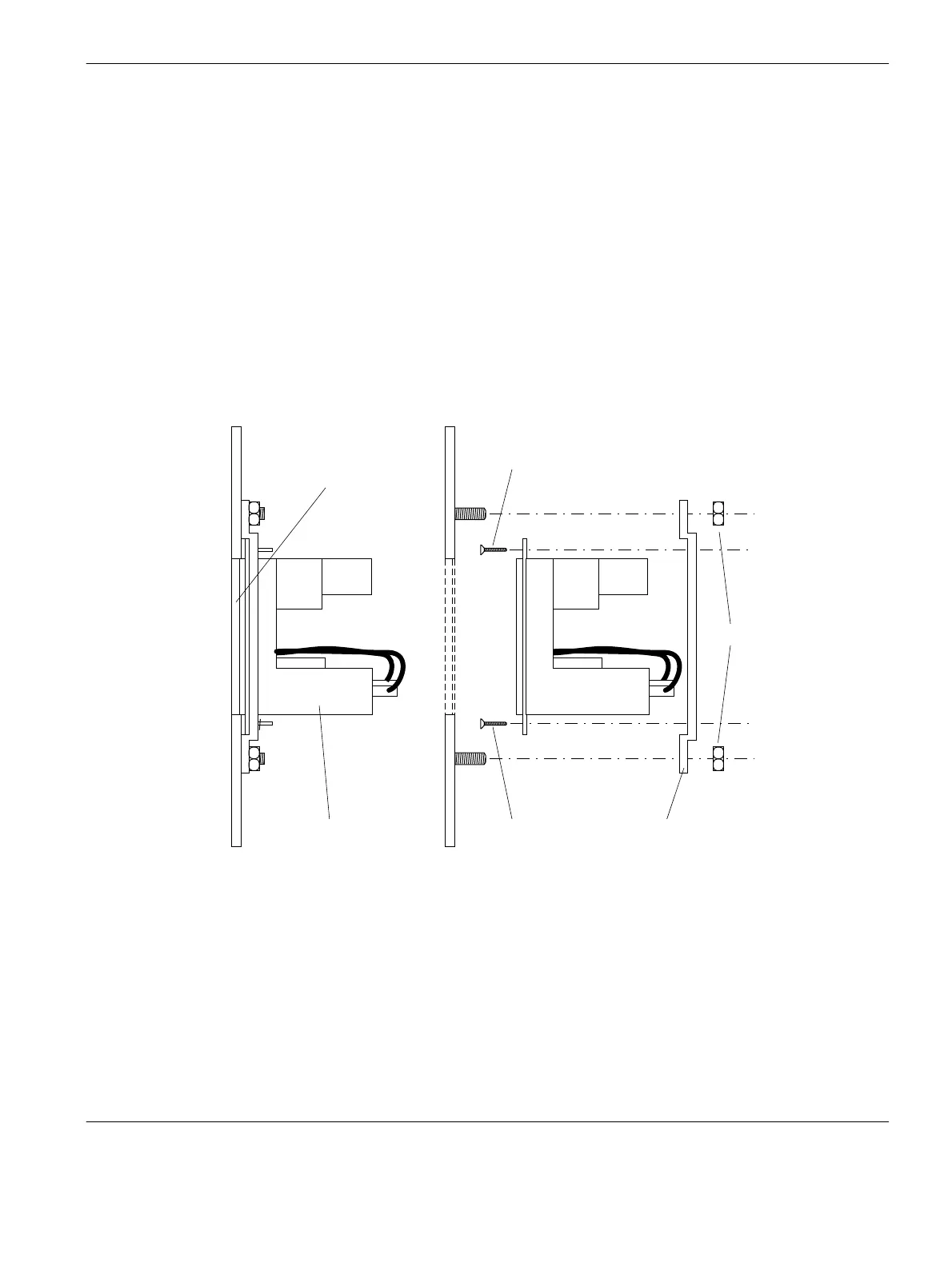

Fig.7.2 Mains switch and fuseholder
970178e
OA 0077 YK 2306
YK 2306
GU 1804
YM 0409
OA 0076
