BRUNSWICK INSTALLATION MANUAL PAGE 11
EDINBURGH

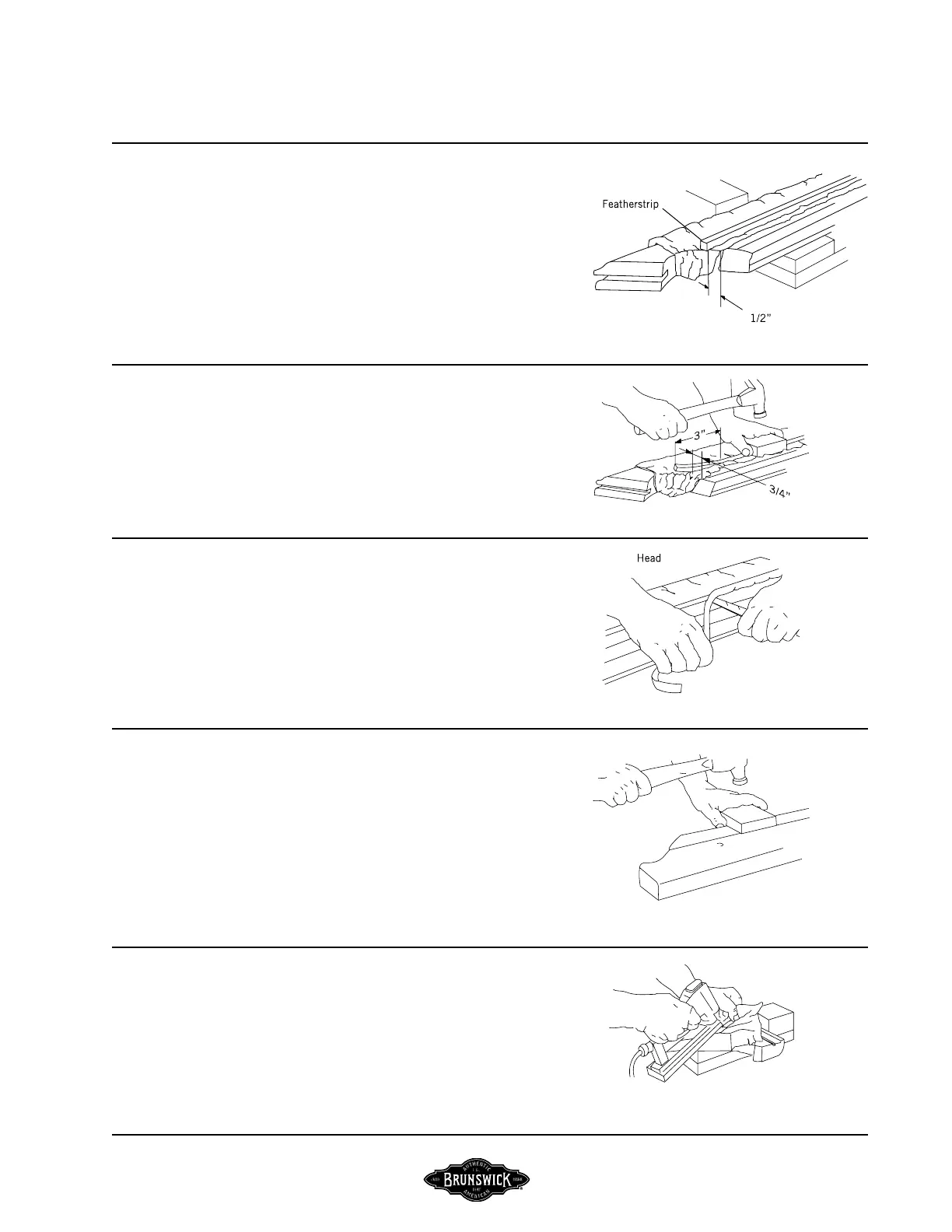

ATTACHING RAIL CLOTH
CORNER POCKET
FIGURE ONE
Step #1: Place cloth on rail with the back side down. The cloth
should have equal amount of overhang at both ends of rail and
extend 1/2” over the featherstrip groove on the cushion side as
shown.
Step #2: Except for approximately 3” at end of rail, tap feather-
strip down with a tapping block and hammer, starting at center of
rail. Stretch cloth tightly toward each end of rail and tap feather-
strip down.
FIGURE ONE
FIGURE TWO
Step #3: At each end of rail, pull the cloth toward the rubber
cushion an additional 3/4”. Then tap remainder of featherstrip
down.
FIGURE TWO
FIGURE THREE
Step #4: Trim the cloth on cushion side of featherstrip along the
total length of featherstrip as illustrated.
FIGURE THREE
FIGURE FOUR
Step #5: Fold the cloth down over front of rail, then using thumb
and forenger as a guide along front edge of the cushion to keep
the tapping block at rear edge of featherstrip, tap the featherstrip
down ush with rail surface as shown.
NOTE: Never try to tap a featherstrip ush with just a hammer
as you will surely dent the rail surface behind the
featherstrip.
FIGURE FOUR
FIGURE FIVE
Step #6: Turn rail over and at corner pockets fold the cloth over
the mitered edge as shown, stretching tightly and working out any
wrinkles as you staple three places in area shown.
FIGURE FIVE
