BRUNSWICK INSTALLATION MANUAL PAGE 3
EDINBURGH
BASEFRAME AND PEDESTAL ASSEMBLY

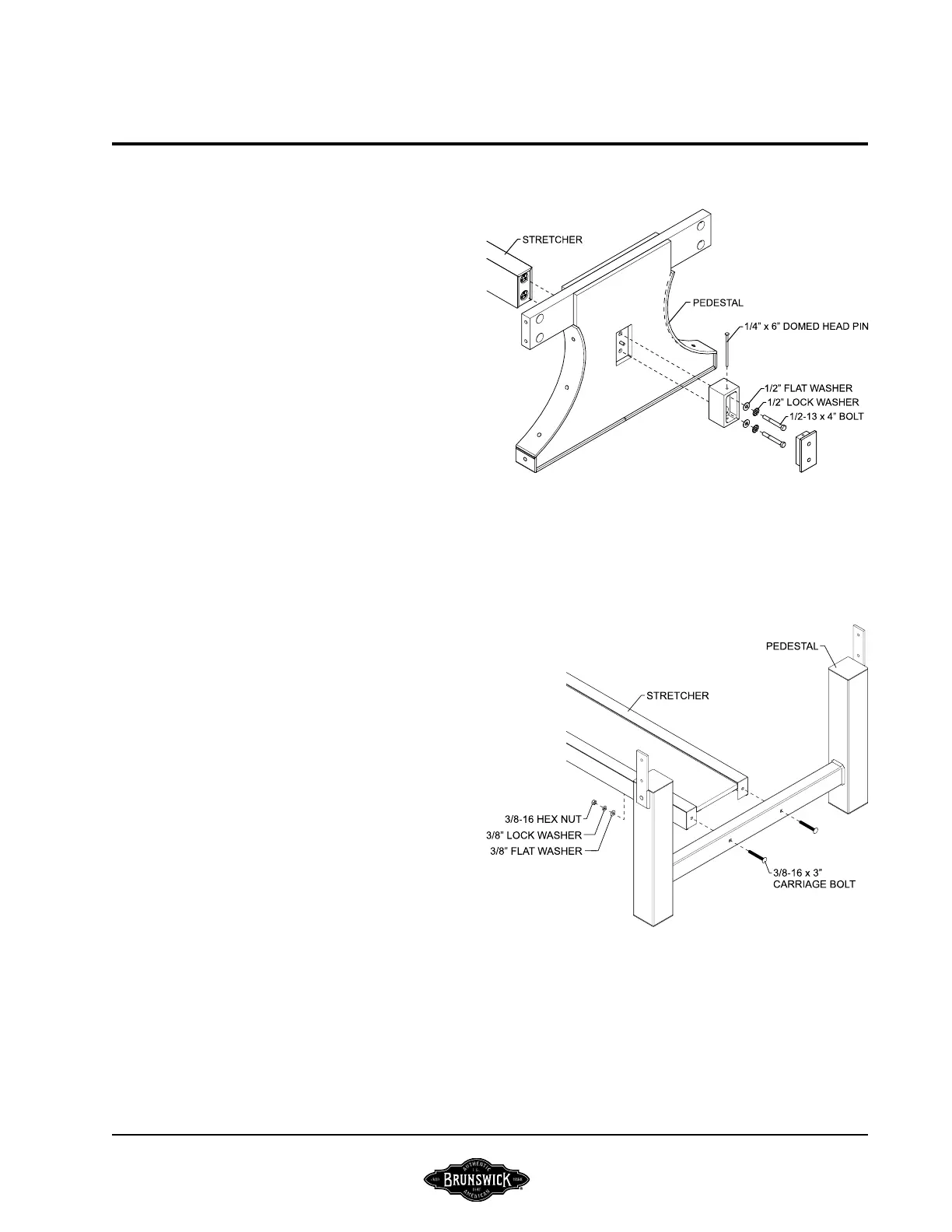

FIGURE ONE (EDINBURGH)
NOTE: Requires two people to assemble.
Step #1: Position the pedestals and stretcher assembly as shown.
Step #2: Insert stretcher into recess of pedestal. Align bolt holes
of beam assembly with pedestal and beam end attach block. Insert
two 1/2-13 x 4” bolts with lock and at washers.
Step #3: Tighten bolts securely.
Step #4: Repeat at opposite end.
Step #5: Insert beam end cap plate assembly into beam and at-
tach block. Secure in position with 1/4 x 6” domed head pin.
Step #6: Repeat at opposite end.
FIGURE ONE
FIGURE ONE (EDINBURGH - STEEL)
NOTE: Requires two people to assemble.
Step #1: Position the pedestals and stretcher assembly as shown.
Step #2: Align bolt holes of stretcher and pedestal. Insert two
3/8-16 x 3” carriage bolts. Attach with 3/8 at washers and nuts.
Step #3: Tighten nuts securely.
Step #4: Repeat at opposite end.
FIGURE ONE
