PAGE 4 BRUNSWICK INSTALLATION MANUAL
EDINBURGH
BASEFRAME AND PEDESTAL ASSEMBLY
CONTINUED

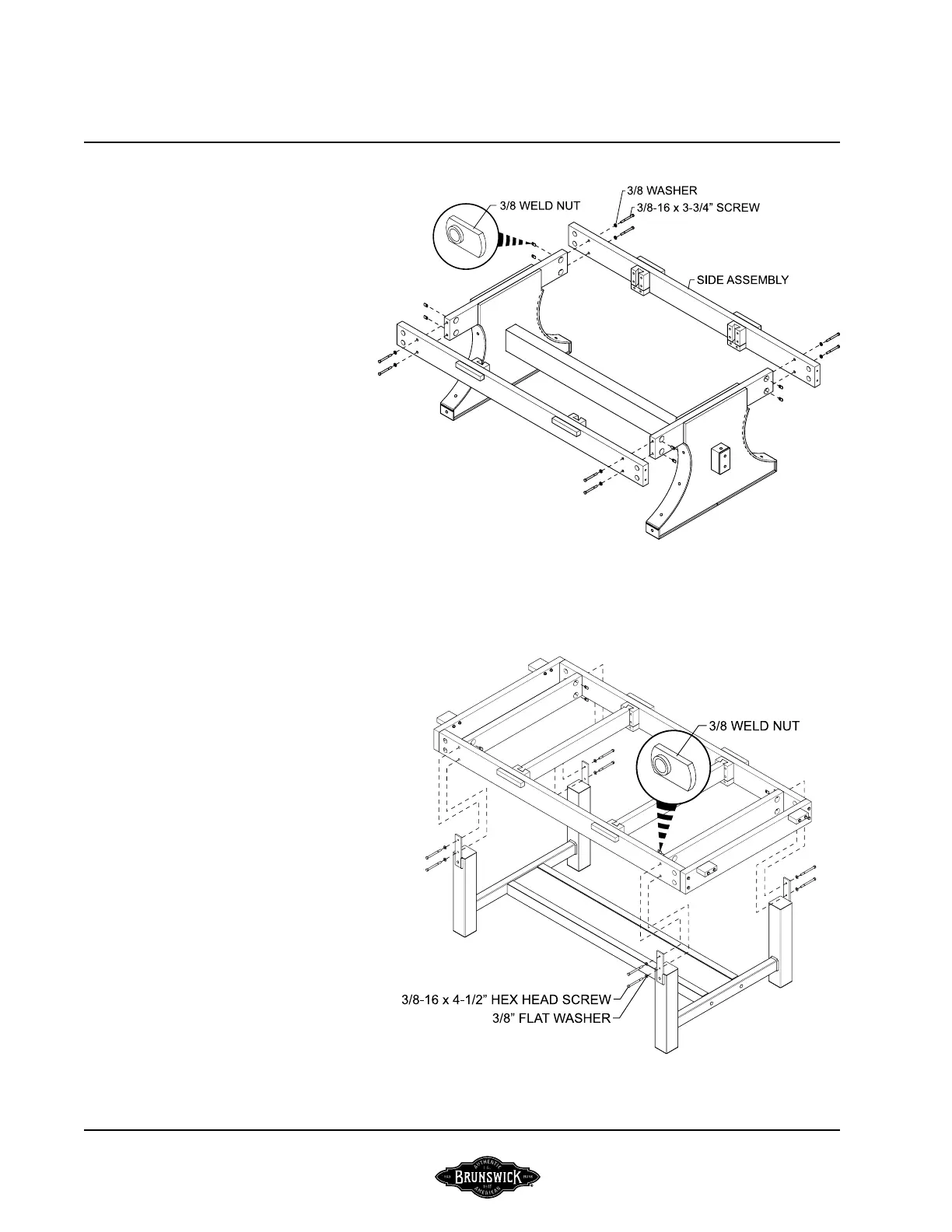

FIGURE TWO (EDINBURGH)
Step #7: Loosely attach the baseframe side assemblies to the leg
assemblies and cross supports using 3/8-16 x 3-3/4” hex head cap
screws and 3/8 at washers adn 3/8-16 weld nuts.
FIGURE TWO
FIGURE TWO (EDINBURGH - STEEL)
Step #7: Loosely attach the baseframe side assemblies to the leg
assemblies and cross supports using 3/8-16 x 4-1/2” hex head cap
screws and 3/8 at washers adn 3/8-16 weld nuts.
FIGURE TWO
To Next Page
