BRUNSWICK INSTALLATION MANUAL PAGE 5
EDINBURGH
BASEFRAME AND PEDESTAL ASSEMBLY
CONTINUED

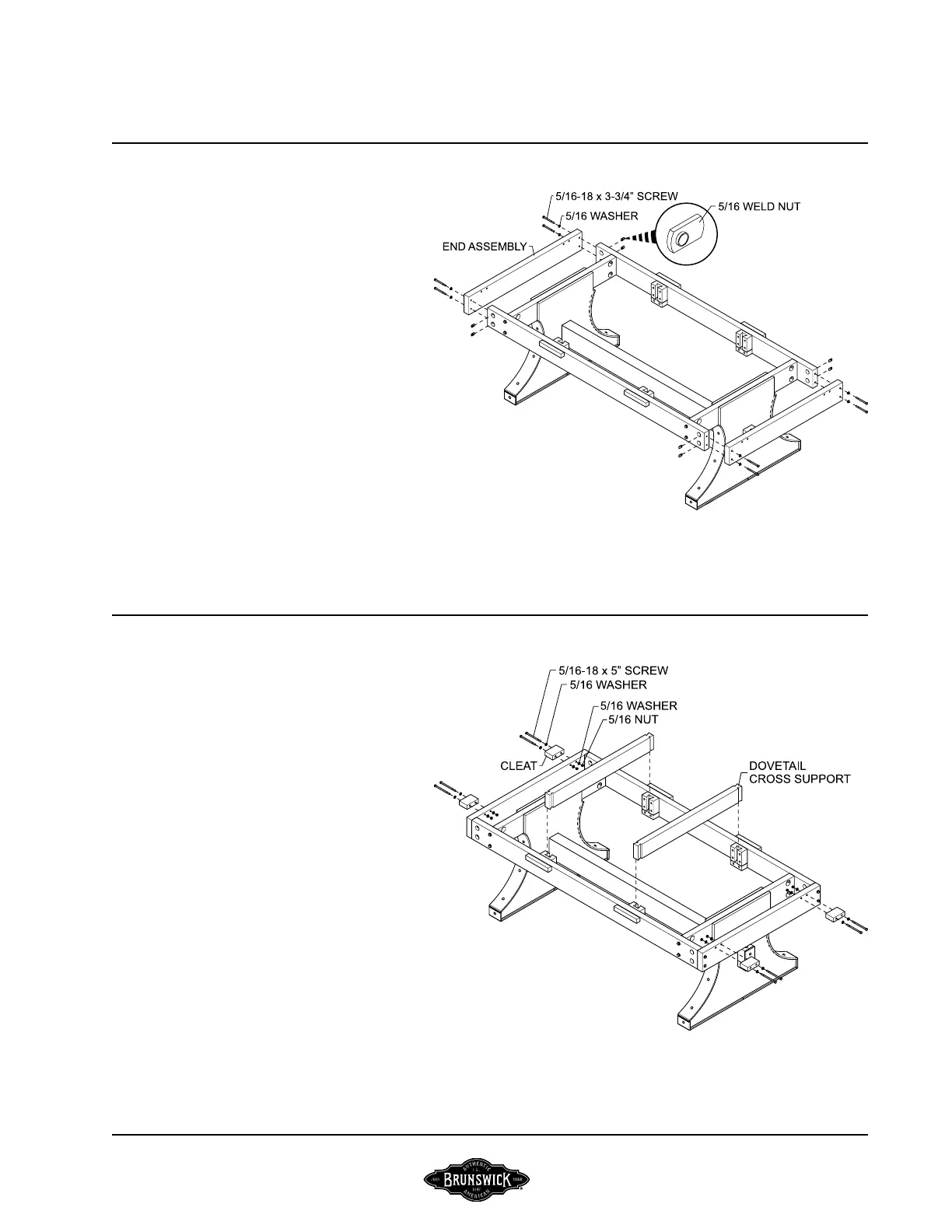

FIGURE THREE
Step #8: Loosely attach baseframe end assemblies to the side as-
semblies using 5/16-18 x 3-3/4” hex head screws with 5/16 washer
and 5/16-18 weld nuts.
FIGURE THREE
FIGURE FOUR
Step #9: Attach slate attach cleats to the baseframe end as-
semblies using 5/16-18 x 5” hex head screws with 5/16 washer and
5/16-18 hex nuts.
Step #10: Install the two dovetail cross supports into the dove-
tail cleats.
FIGURE FOUR
