PAGE 6 BRUNSWICK INSTALLATION MANUAL
EDINBURGH
BASEFRAME AND PEDESTAL ASSEMBLY
(CONTINUED)

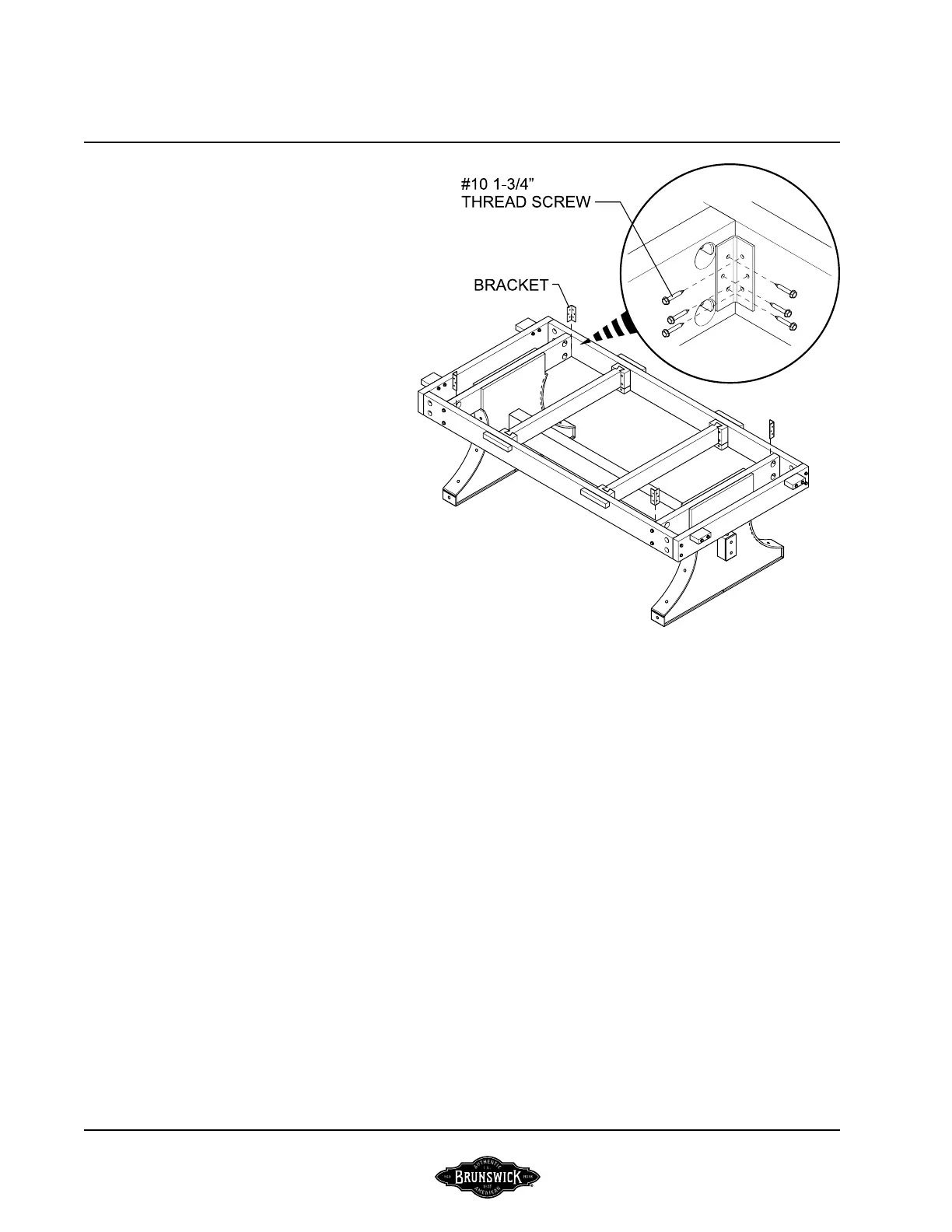

FIGURE FIVE
Step #11: Square the baseframe by using a carpenter’s square
or measuring the diagonal corners The diagonal measurements
should not vary over 1/8”. With the table square, securely tighten
all remaining hardware.
Step #12: Attach pedestal attach brackets to inside corners of
pedestal/baseframe #10 x 1-3/4” thread cutting screws.
FIGURE FIVE
To Next Page
