BRUSTOR B-128 - 2. Placing the Guides; Prepare Guides and Housing; Position and Fasten Supports

V2017

B-128 Conservatory awning Mounting instructions
3
5
c
m
3
5
c
m
=
=
Socket-head 3mm
Fastening plate
. P   

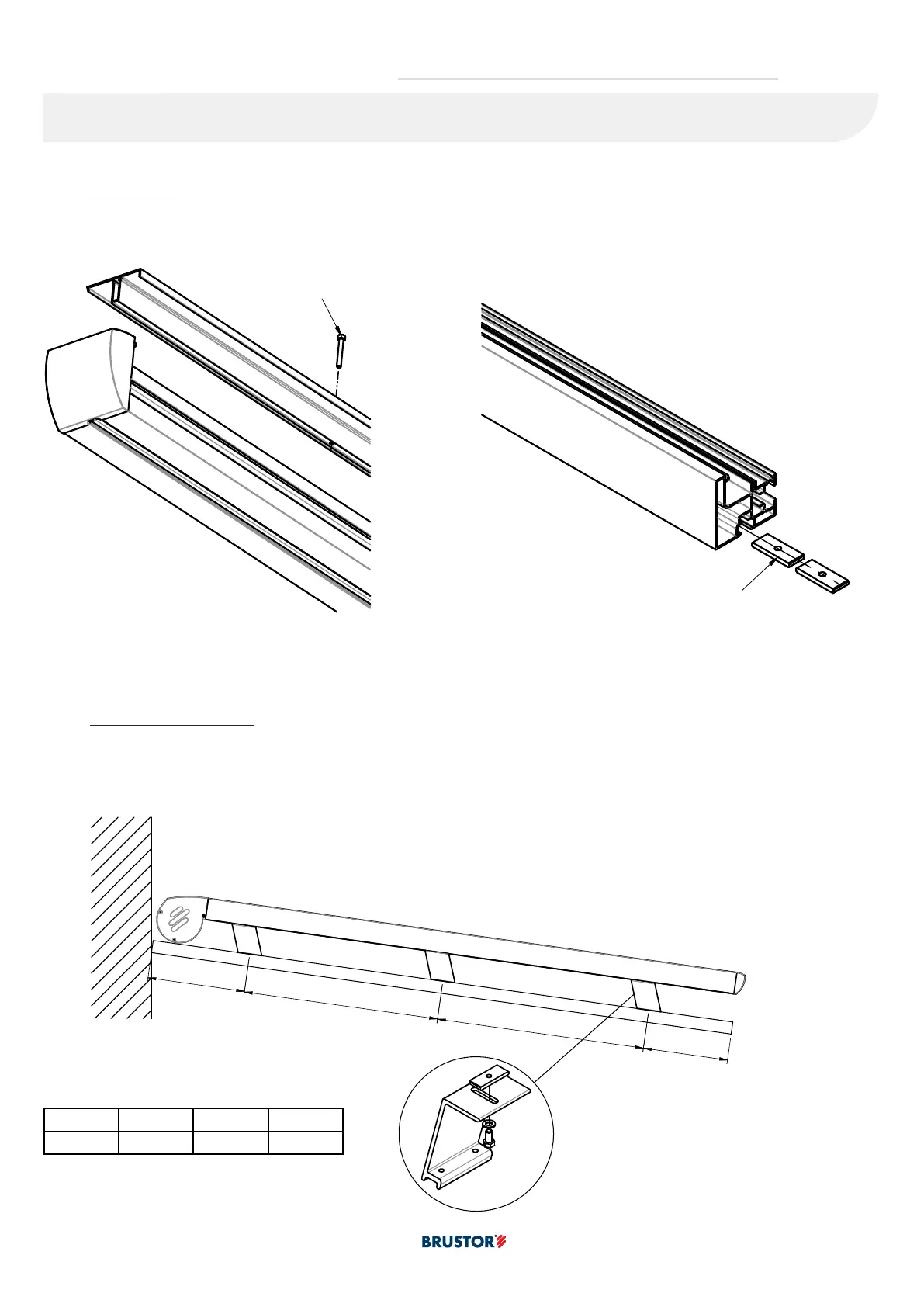

› First remove the covers of the guides (socket-head 3 mm) and of the housing.
› ! If a support beam is also placed, extra fastening plates must be slid into the guide. (1x le 1x right) Make sure that the guide
plates are in the correct place, before and/or behind the guide support.
› Slide the guides on the housing.
› Determine the position of the supports. The back of the support comes flush with the back of the guide.
› Place the top support and bottom support approximately 35 cm from the end. Spread the other supports equally between the first and
last support.
› ! With hanging veranda beams, use shims between the guide and the central support to align the guide supports.
› Take the guide o again to fasten the supports.
› Use a double guide support if an additional veranda screen is placed alongside.
Number of supports per extension
0,5 - 1,5 1,51 - 2,5 2,51 - 4 4,01 - 5
2 3 4 5
