BRUSTOR B-128 - Align and Secure Guides

V2017

B-128 Conservatory awning Mounting instructions

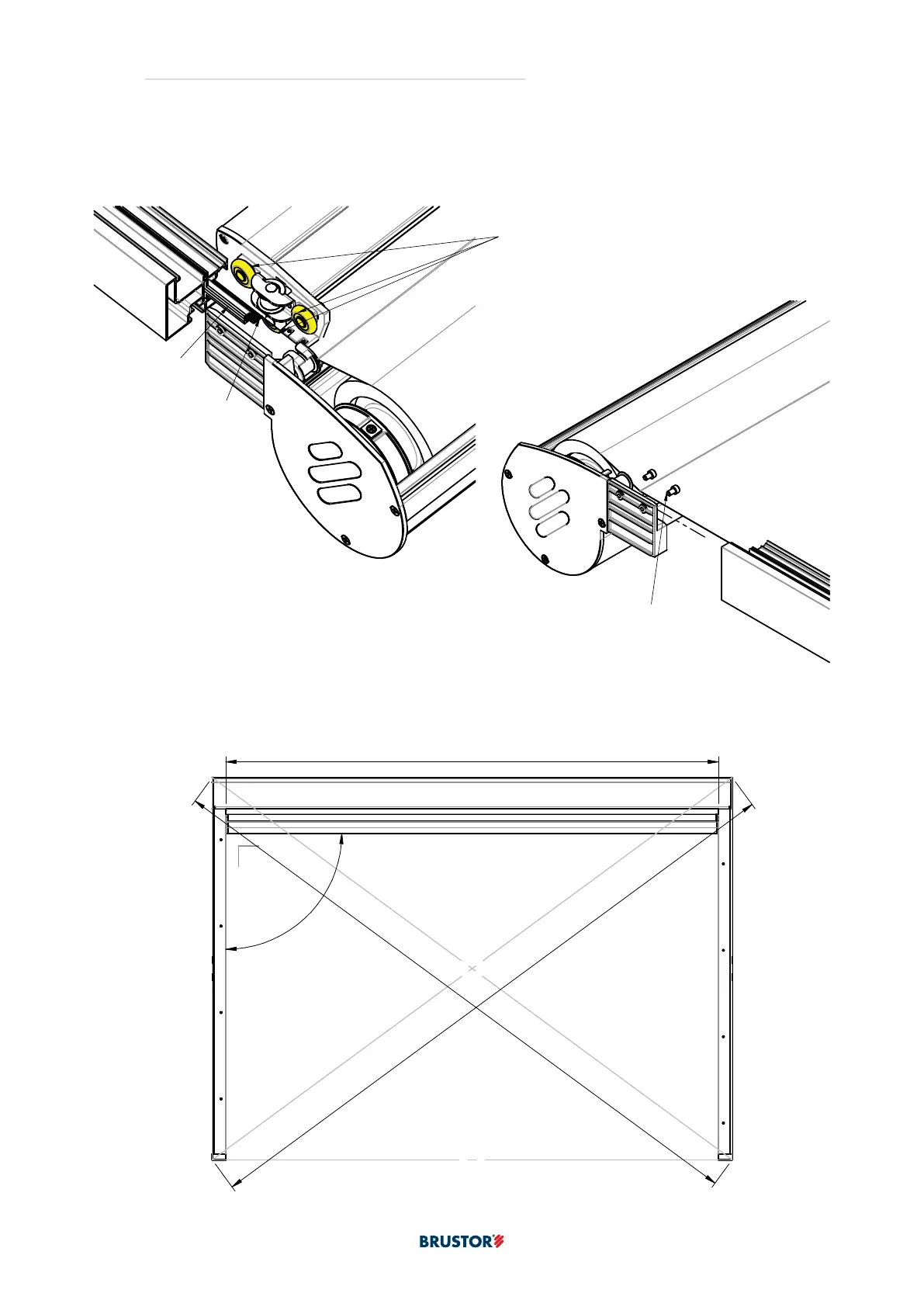

› Tighten the bolts of the upper guide supports.
› Check the squareness of the first guide on the housing and fasten it.
› Check the parallelism of the other guides with respect to the first distance.
› Check the fixation by measuring diagonally. The dierence may be no more than 2 mm.
› Firmly tighten all nuts.
› Slide the guides upwards over the fastening plates of the guide supports.
› Slide the zipper in the PVC rail and place the guide wheels in the guide.
› Slide the side guides on the side plates of the screen housing.
› Fasten the guide to the side plate of the screen housing with bolts DIN912 M6x10.
=
=
9
0
°
Guide wheels
PVC rail
Zipper
DIN912 M6x10
