V2017
B-128 Conservatory awning Mounting instructions

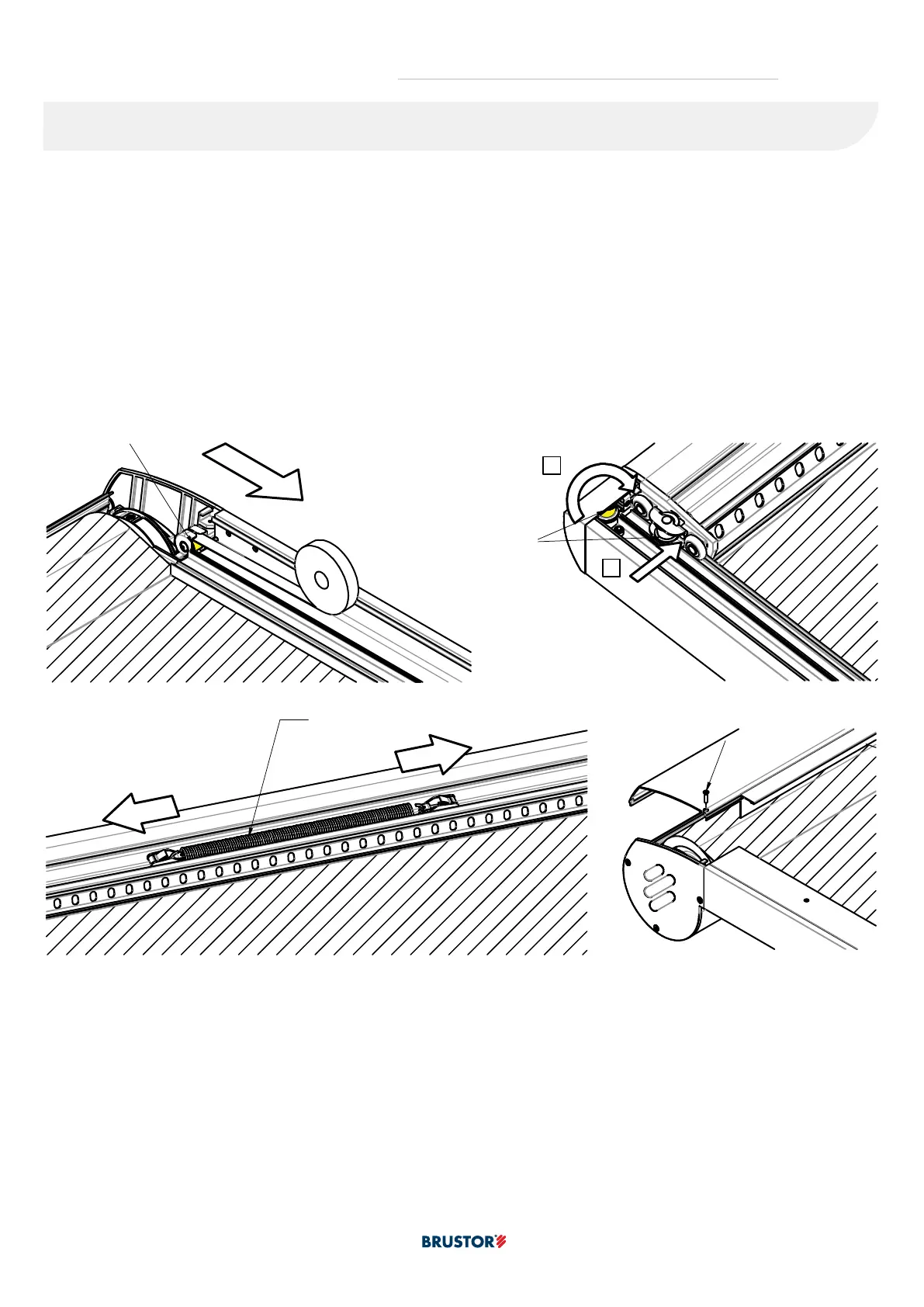

› Remove the cover of the front louvre.
› The belt comes horizontally out of the housing. Bring the belt forwards and insert it vertically along the wheel in the end cap of the
guide. Do not turn the belt more than 90 degrees.
› Preferably place the belt with the white side on the first wheel, and with the black side on the second. Then the black and least
conspicuous side of the belt is visible when closing the canvas.
› Then insert the belt along the wheel on the side plate of the front louvre in the opening in the front louvre.
› Join the belt with the buckles in the front louvre on the spring.
› Evenly tighten the belt along both sides until the canvas is nicely stretched. Make sure that the spring never becomes longer than 2
metres.
› Replace the covers on the front louvre, the guides and the housing.
1
2
Guide wheel
Guide wheel
Do not remove cladding!
DIN965 M4x20
. T
