ASSEMBLY STEP 5

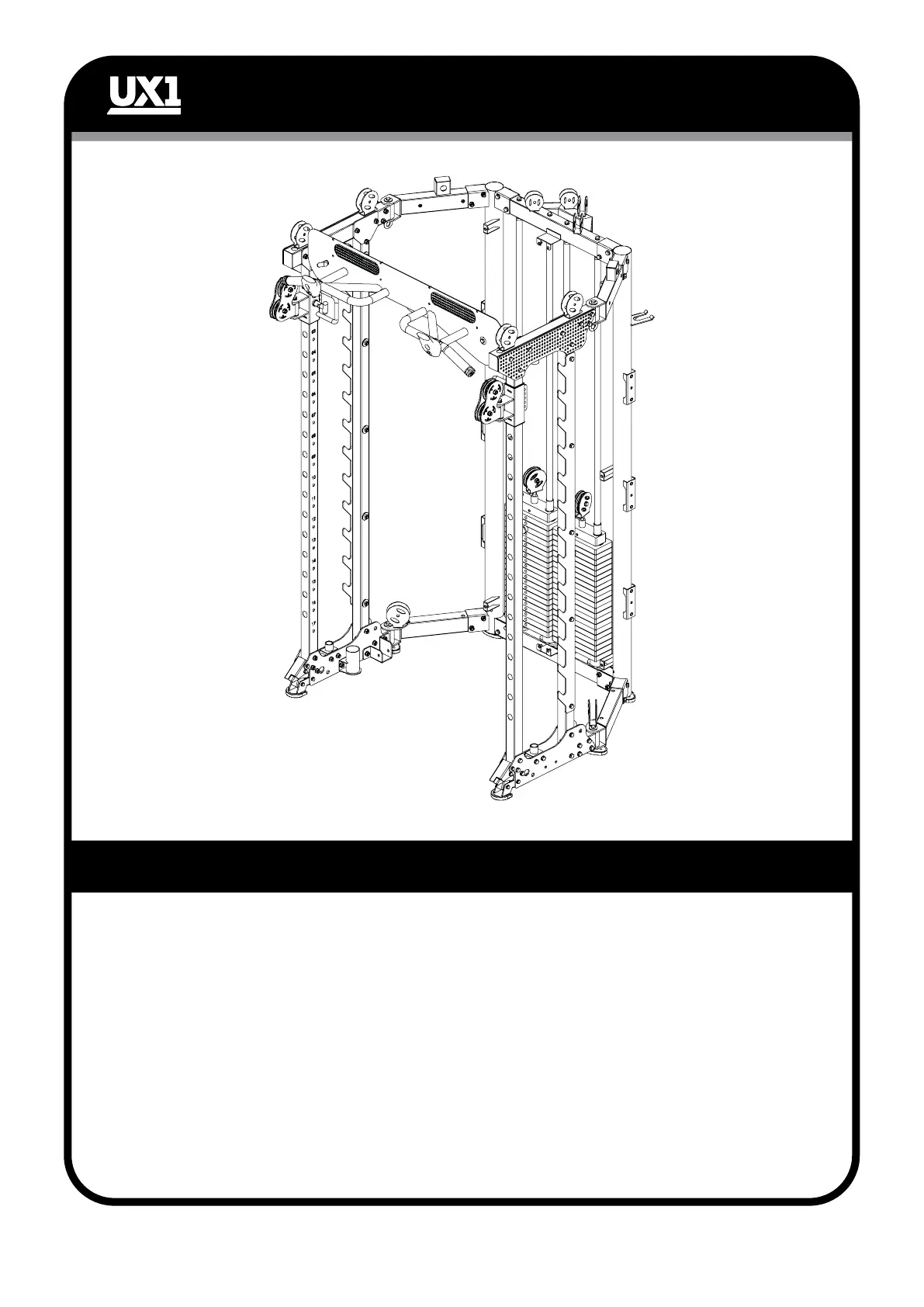

ASSEMBLY STEP 5 INSTRUCTIONS
- 14 -
1. Assemble the stainless steel guide rod (45) through the weight stack rubber pad (43),
weight stack (44) and fix to the main frame with M10*95 hexagon bolt (50) and Ø10 flat
washer (6).
2. Install selector rod (46) on weight stack (44) with cylindrical pin (47).
3. Install the weight stack pulley (49) on the selector rod (46).
4. Put magnetic pull pin (48) into weight stack (44).
To Next Page
