ASSEMBLY STEP 6
ASSEMBLY STEP 6 INSTRUCTIONS
- 16 -

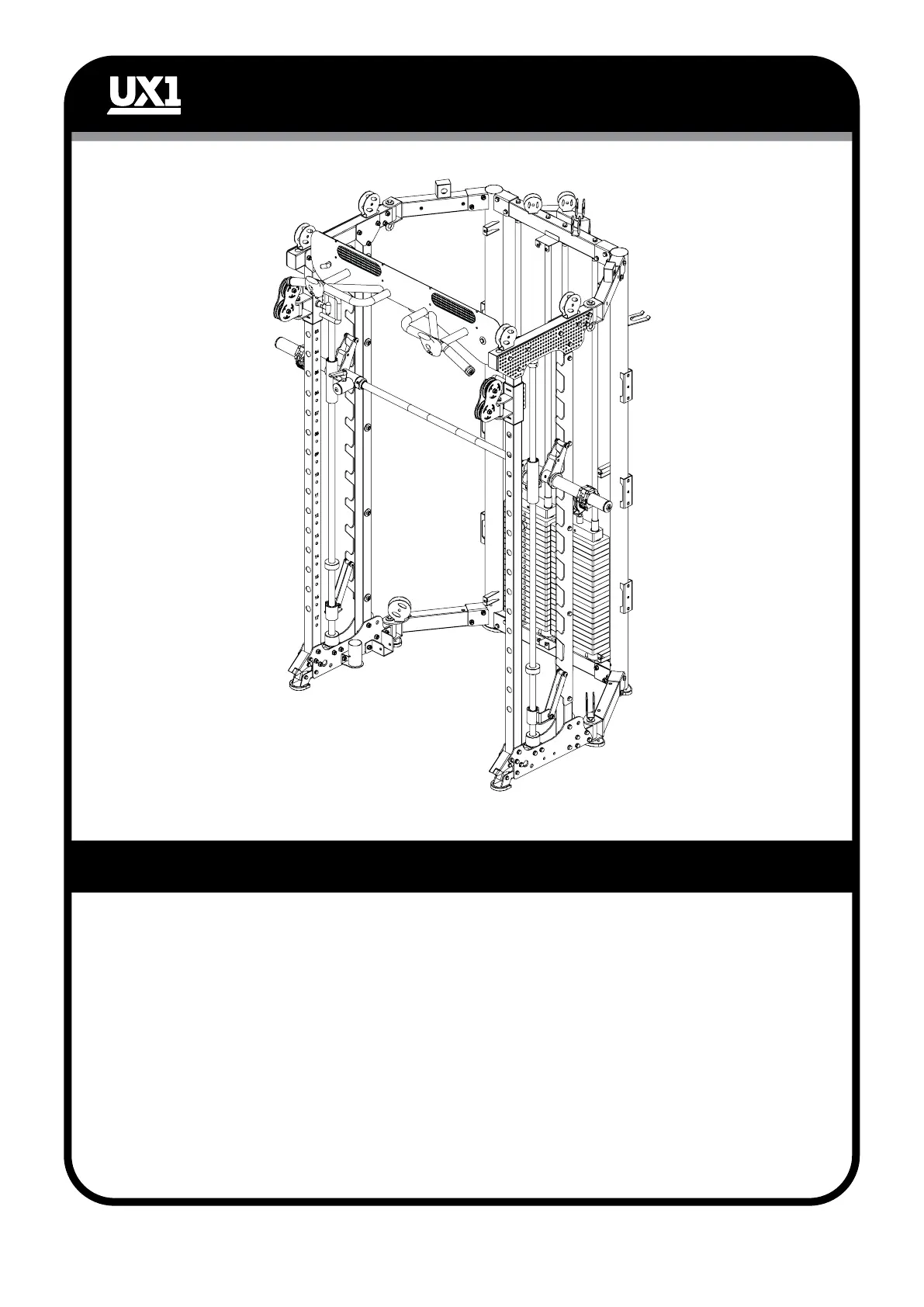

1. Pass the long smith machine guide rod (51) through the long smith machine guide rod
rubber pad lower (58), safety hook left (52), long smith machine guide rod rubber pad
upper (59), sliding tube left (53) and fix to left frame with fixing sleeve (62) and M8*10
grub screw (63).
2. Connect smith machine bar (54) through sliding tube left (53) with M10*20 hexagon bolt
(67), Ø10 spring washer (68), Ø50*Ø19*Ø11 aluminium cover (61).
3. Pass the long guide rod (51) through the long smith machine guide rod rubber pad lower
(58), safety hook right (57), long smith machine guide rod rubber pad upper (59), sliding
tube right (56) and fix to left frame with fixing sleeve (62) and M8*10 grub screw (63).
4. Use M12*45 button head socket screw (64), Ø12 flat washer (66) and Ø12 spring
washer (65) to cover the smith machine bar sleeve (55) to mount on the smith machine (54).
5. Install the snap lock collars (69) on the smith machine bar sleeve (55) and adjustable
setting lever M12*32 (60) mounted on sliding tube left (53).
To Next Page
