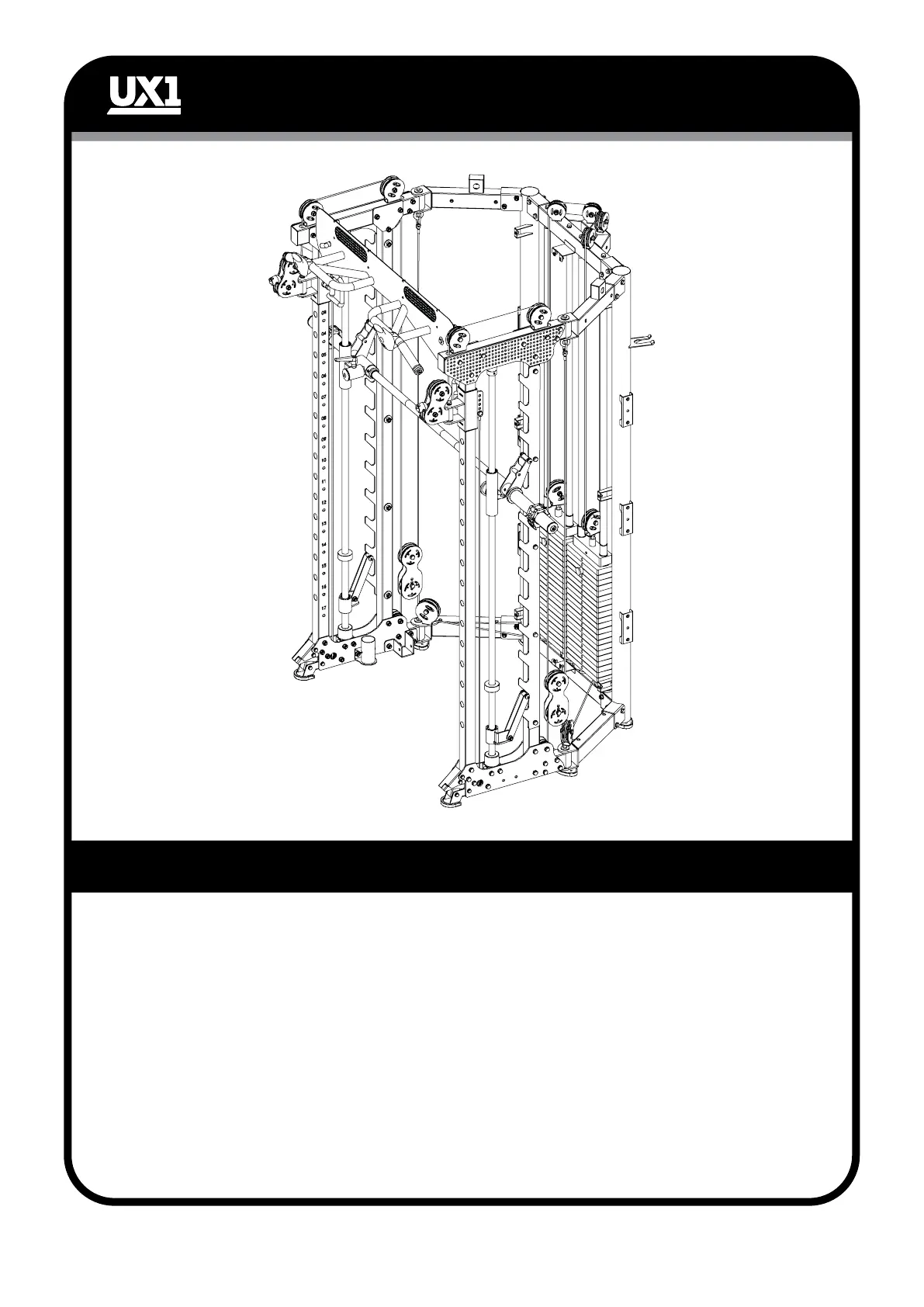

ASSEMBLY STEP 7
ASSEMBLY STEP 7 INSTRUCTIONS
- 18 -
1. Install pulley (70) with M10*45 hexagon bolt (71), Ø10 flat washer (6), M10 lock nut (5)
on the main frame.
2. Install Ø50 pulley (73) on main frame with sleeve (74), M10*75 hexagon bolt (4), Ø10
flat washer (6) and M10 lock nut (5).
3. Install the cable (75) and (79) to the main frame as shown in diagram with M10*25
hexagon bolt (27), Ø10 flat washer (6), M10 lock nut (5) and hoist hook (76).
