Assembly
Adjusting the Handle Height
1. Remove the wingnuts (A, Figure 4), washers (not
shown), and bolts (B) from the right and left handle
brackets (C).
NOTE: Do not remove the lower set of bolts, washers and
nuts (D) securing the lower handle.
2. To raise the handle, mount the lower handle to a higher
adjustment hole (A, Figure 5). To lower the handle,
mount the lower handle to a lower adjustment hole.
3. Replace the bolts, washers and wingnuts removed in
Step 1, tightening securely.
A

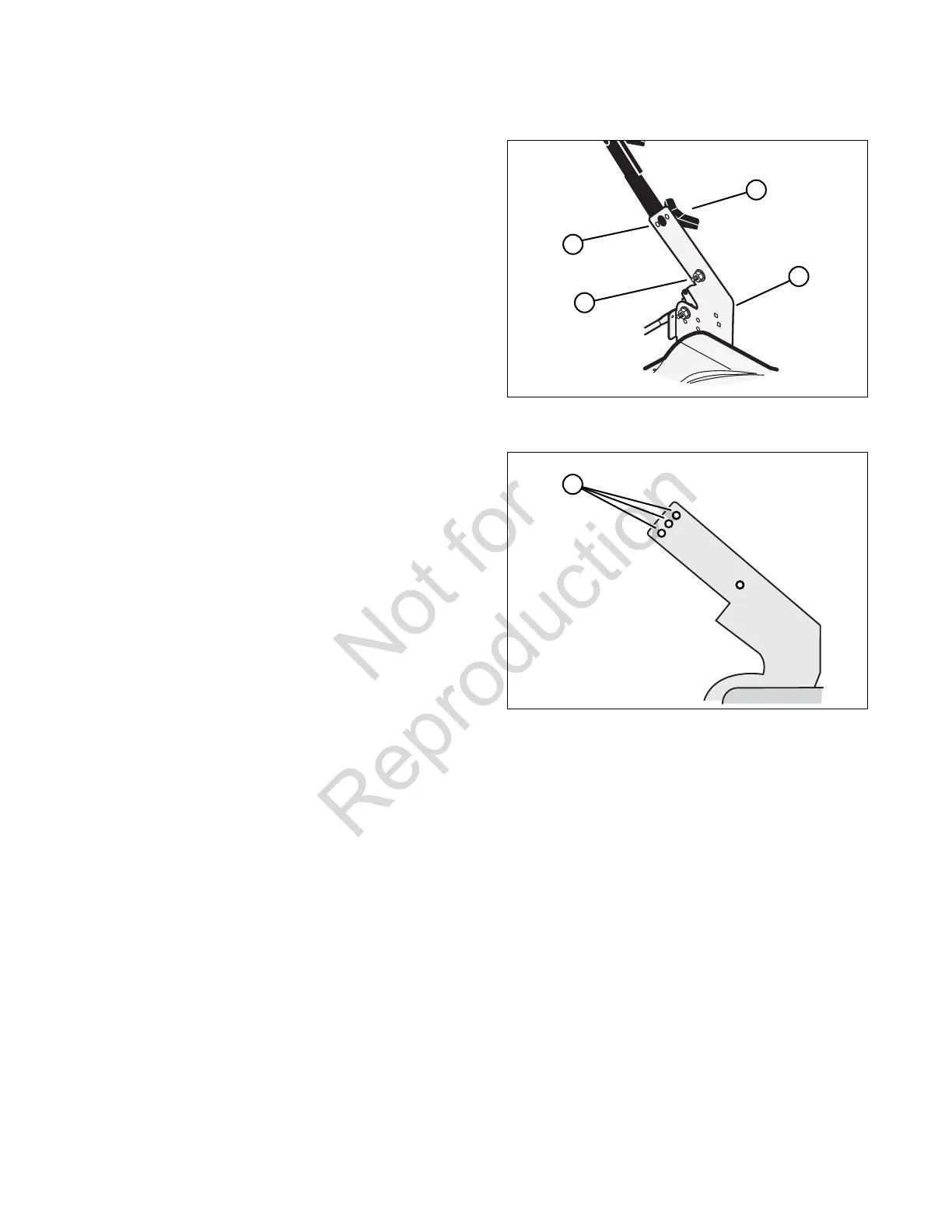

Figure 4: Removing the handle adjustment hardware
C
B
Figure 5: Height adjustment holes
D
A
(Components removed for clarity)
