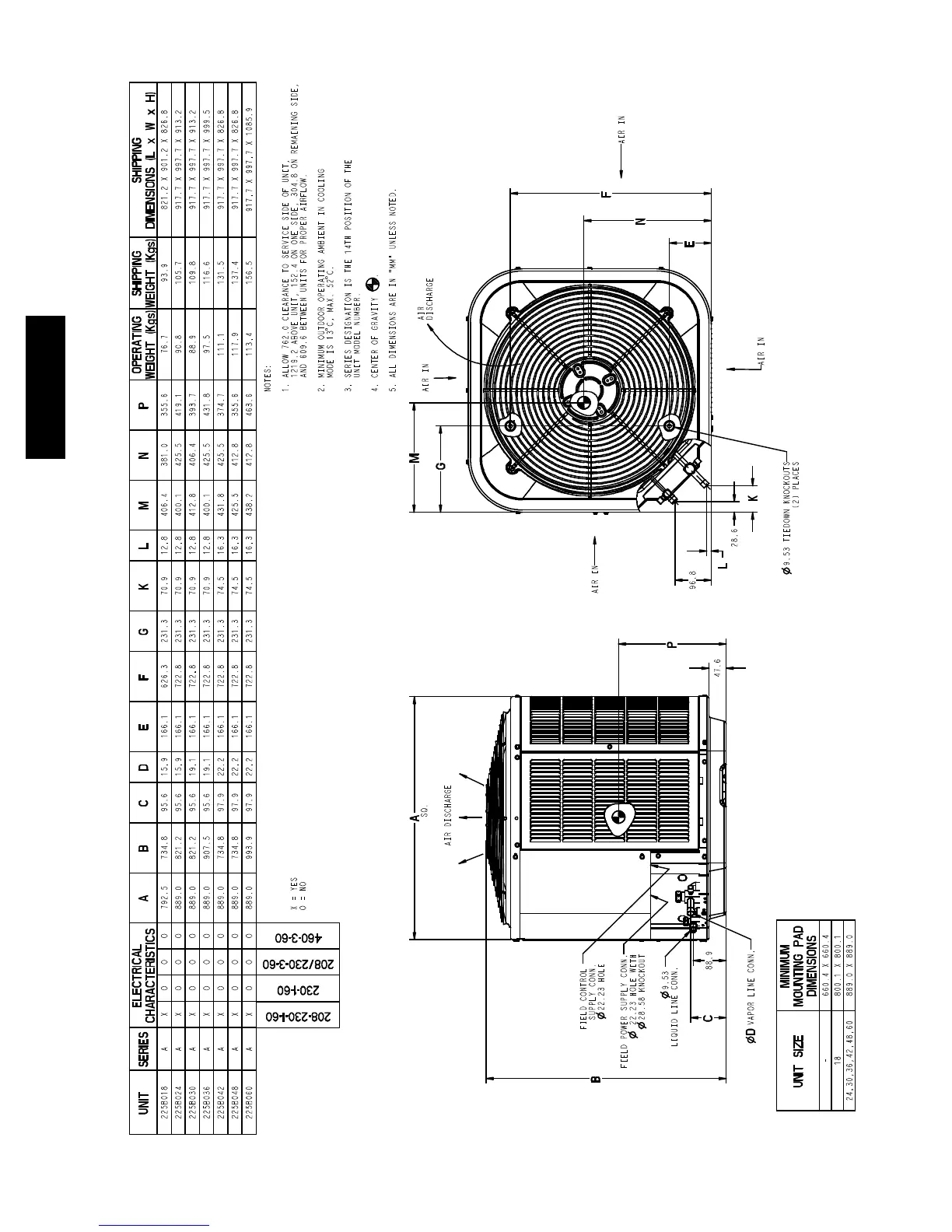

Bryant 225B - DIMENSIONS - SI; MINIMUM MOUNTING PAD DIMENSIONS

10
DIMENSIONS -- SI
B
96.8
K
28.6
L
C
88.9
47.6
N
P
M
E
F
G
A
208-230-1-60
230-1-60
208/230-3-60
460-3-60
UNIT SIZE
MINIMUM
MOUNTING PAD
DIMENSIONS
- 660.4 X 660.4
18 800.1 X 800.1
24,30,36,42,48,60 889.0 X 889.0
UNIT SERIES
ELECTRICAL
CHARACTERISTICS
ABCDEFGKLMNP
OPERATING
WEIGHT (Kgs)
SHIPPING
WEIGHT (Kgs)
SHIPPING
DIMENSIONS (L x W x H)
225B018 A X O O O 792.5 734.8 95.6 15.9 166.1 626.3 231.3 70.9 12.8 406.4 381.0 355.6 76.7 93.9 821.2 X 901.2 X 826.8 225B024 A X O O O 889.0 821.2 95.6 15.9 166.1 722.8 231.3 70.9 12.8 400.1 425.5 419.1 90.8 105.7 917.7 X 997.7 X 913.2 225B030 A X O O O 889.0 821.2 95.6 19.1 166.1 722.8 231.3 70.9 12.8 412.8 406.4 393.7 88.9 109.8 917.7 X 997.7 X 913.2 225B036 A X O O O 889.0 907.5 95.6 19.1 166.1 722.8 231.3 70.9 12.8 400.1 425.5 431.8 97.5 116.6 917.7 X 997.7 X 999.5 225B042 A X O O O 889.0 734.8 97.9 22.2 166.1 722.8 231.3 74.5 16.3 431.8 425.5 374.7 111.1 131.5 917.7 X 997.7 X 826.8 225B048 A X O O O 889.0 734.8 97.9 22.2 166.1 722.8 231.3 74.5 16.3 425.5 412.8 355.6 117.9 137.4 917.7 X 997.7 X 826.8 225B060 A X O O O 889.0 993.9 97.9 22.2 166.1 722.8 231.3 74.5 16.3 438.2 412.8 463.6 113.4 156.5 917.7 X 997.7 X 1085.9
AIR DISCHARGE
SQ.
AIR DISCHARGE
AIR IN
VAPOR LINE CONN.
D
AIR IN
AIR IN
AIR IN
9.53 TIEDOWN KNOCKOUTS
(2) PLACES
FIELD CONTROL
SUPPLY CONN.
22.23 HOLE
FIELD POWER SUPPLY CONN.
22.23 HOLE WITH
28.58 KNOCKOUT
X = YES O=NO
C, MAX. 52
225B
