Bryant 3-PHASE 601A User Manual

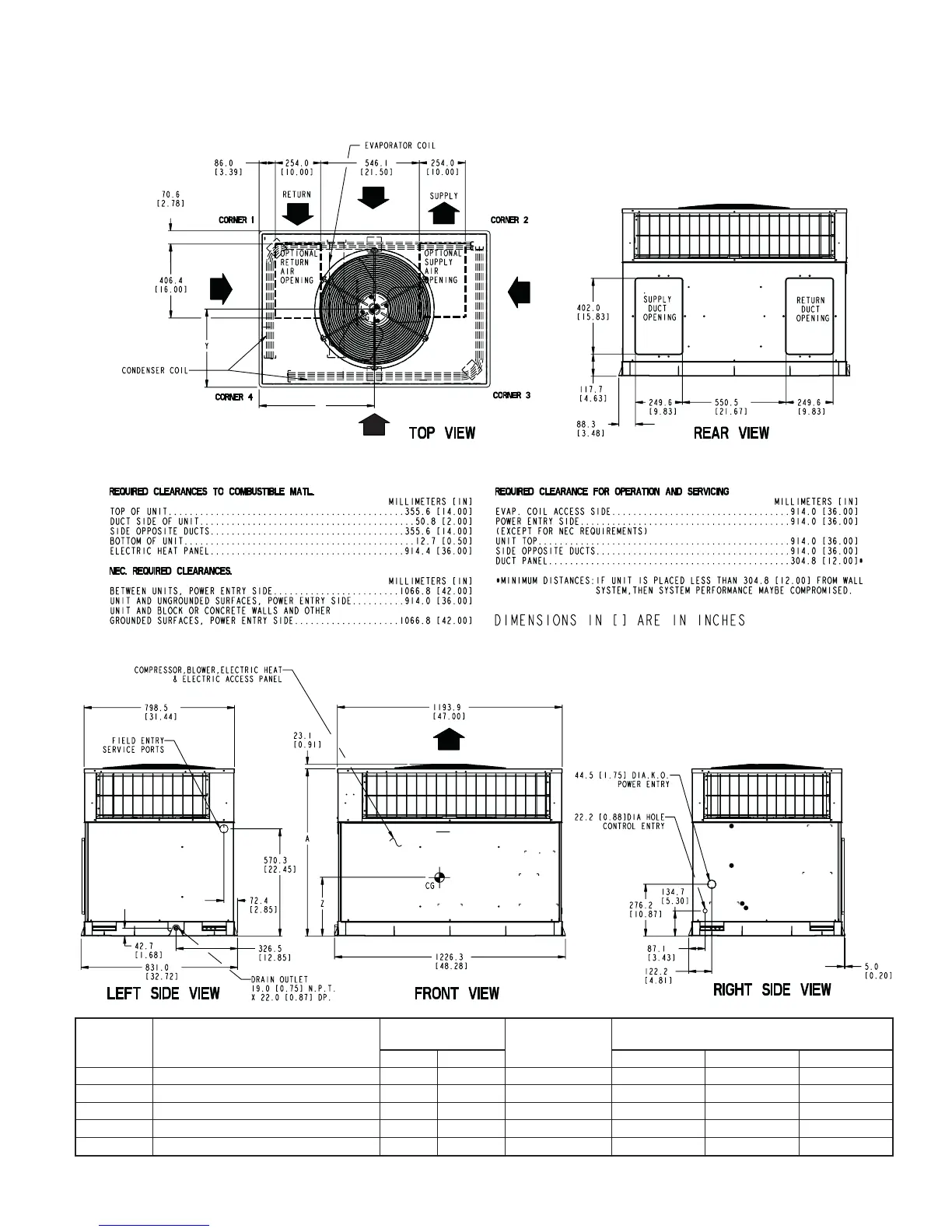

Fig. 2—601A030-042/602A030-036 Unit Dimensions
UNIT ELECTRICAL CHARACTERISTICS
UNIT WEIGHT
UNIT HEIGHT
IN. (MM)
”A”
CENTER OF GRAVITY
IN. (MM)
Lb Kg X Y Z
601A030 208/230-3-60 287 130.2 39.02 (991.1) 19.5 (495.3) 13.7 (348.0) 15.0 (381.0)
601A036 208/230-3-60, 460-3-60 291 132.0 37.02 (940.3) 19.5 (495.3) 13.7 (348.0) 13.0 (330.2)
601A042 208/230-3-60, 460-3-60 323 146.5 37.02 (940.3) 19.7 (500.4) 14.0 (355.6) 13.0 (330.2)
602A030 208/230-3-60 320 145.2 37.02 (940.3) 19.7 (500.4) 14.0 (355.6) 17.6 (447.0)
602A036 208/230-3-60, 460-3-60 328 148.8 37.02 (940.3) 19.7 (500.4) 14.0 (355.6) 16.5 (419.1)
