Bryant 538F User Manual

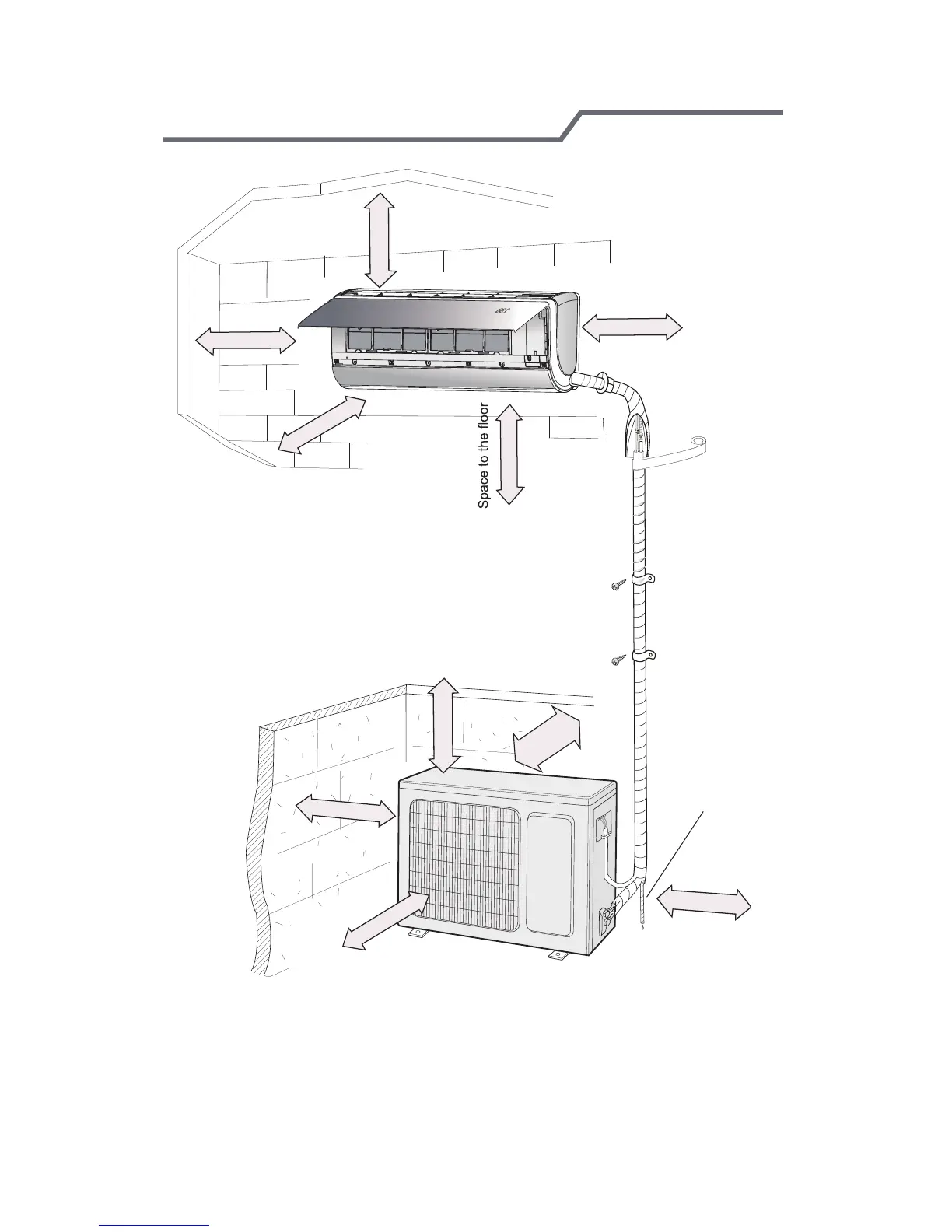

Installation diagram
Drainage pipe
At least 8.2 ft (250cm)
At least 4.9 ft (15cm)
At least 1.64 ft (50cm)
At least 1.64ft (50cm)
At least
0.98 ft (30cm)
At least 9.8 ft (300cm)
At least 6.56 ft (200cm)
Space to the obstruction
Space to the
obstruction
Space to the
obstruction
Space to the ceiling
Space to the obstruction
Space to the obstruction
At least 0.98 ft (30cm)
At least 0.49 ft (15cm)
At least 0.49ft (15cm)
Space to the wall
Space to the wall
Space to the wall
-23-

Bryant 538F Specifications

General

Brand	Bryant
Model	538F
Category	Air Conditioner
Language	English
