Bryant 547K User Manual

12

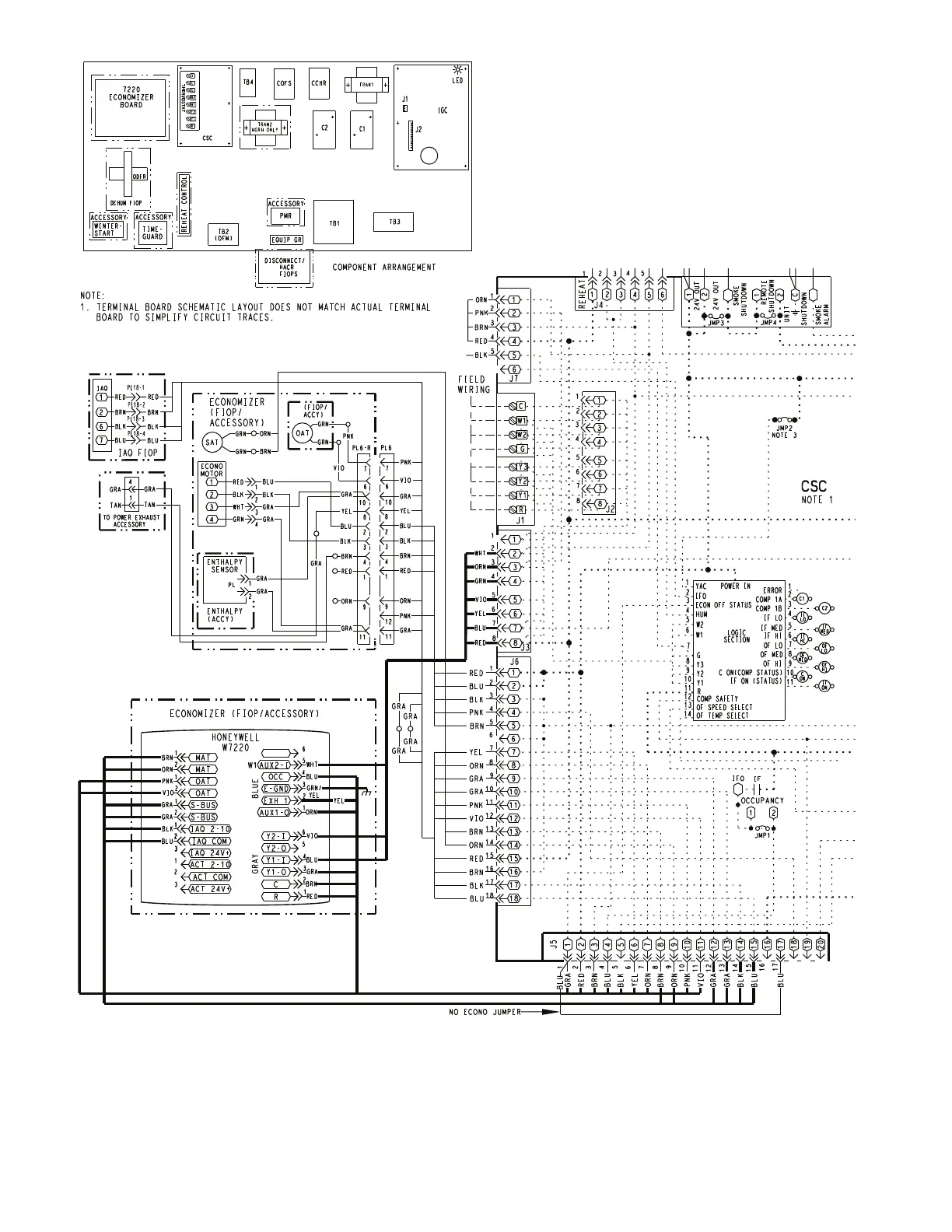

Fig. 28 — Typical Wiring Diagram For 48/50LC 07-12 Units
NOTES:
1. Harness shown in bold is 48LCHSRADH--A00 harness, which is shipped in the control box
of 48/50LC 07-12 units and must be field connected to the W7220 controller provided with
the economizer.
2. Harness attached to the W7220 controller from the Carrier factory is removed and not used
with 48/50LC 07-12 units.

Bryant 547K Specifications

General

Brand	Bryant
Model	547K
Category	Air Conditioner
Language	English
