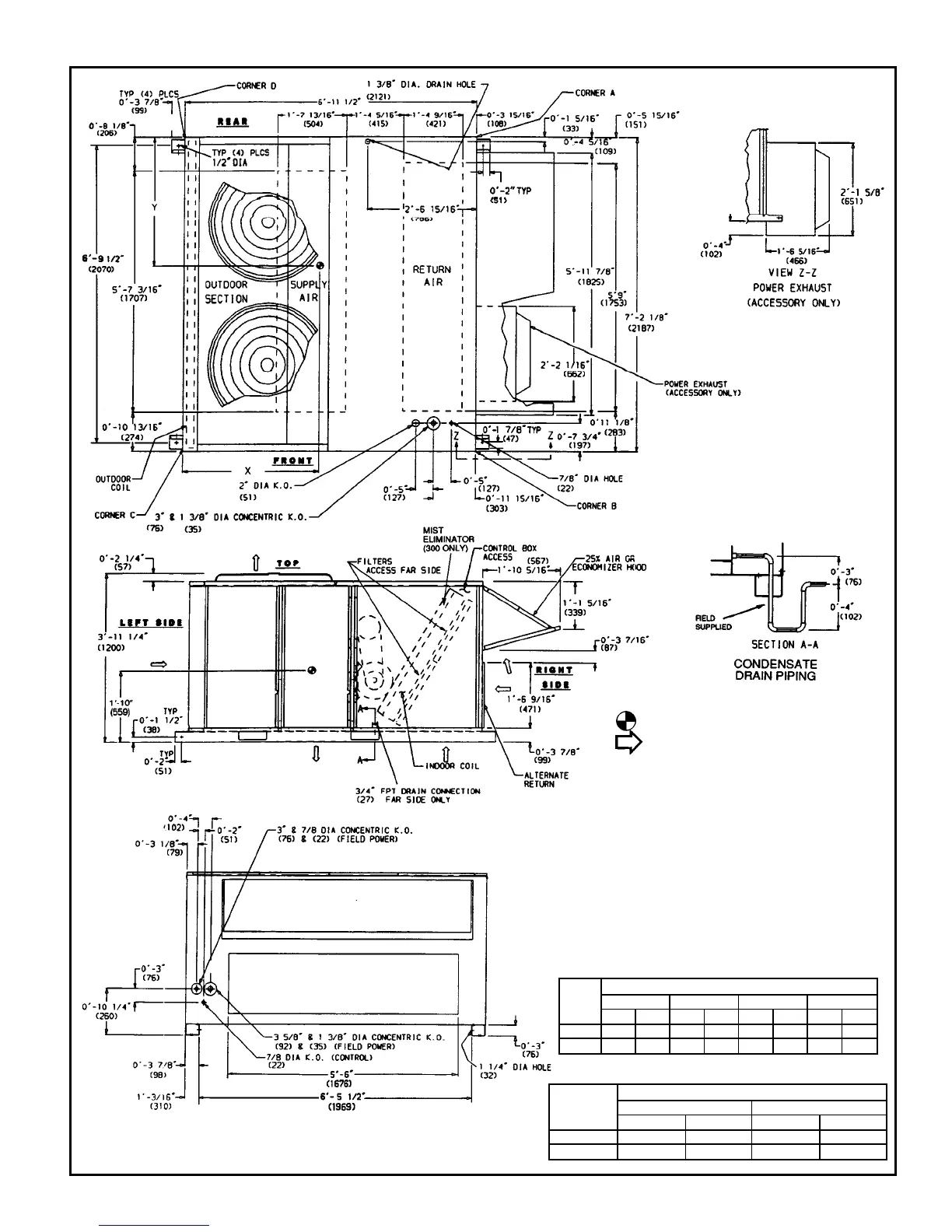

DIMENSIONAL DRAWING — 559F240,300
NOTES:
1. Dimensions in ( ) are in millimeters.
2. Center of gravity.
3. Direction of airflow.
4. Ductwork to be attached to accessory roof curb or adapter
only.
5. For units with electric heat, a field-supplied 90° elbow must
be installed in the supply ductwork below the unit discharge
connection.
6. Minimum clearance:
a. Rear: 78-09 (2134) for coil removal. This dimension can
be reduced to 48-09 (1219) if conditions permit coil re-
moval from the top.
b. Left side: 48-09 (1219) for proper condenser coil airflow.
c. Front: 48-09 (1219) for control box access.
d. Right side: 48-09 (1219) for proper operation of damper
and power exhaust if so equipped.
e. Top: 68-09 (1829) to assure proper condenser fan
operation.
f. Local codes or jurisdiction may prevail.
7. With the exception of clearance for the condenser coil and
the damper/power exhaust as stated in note no. 6, remov-
able fence or barricade requires no clearance.
8. Dimensions are from outside of corner post. Allow 08-
5
⁄
16
9 (8)
on each side for top panel drip edge.
UNIT
559F
CORNER WEIGHT*
ABCD
Lb Kg Lb Kg Lb Kg Lb Kg
240 497 225 470 213 461 209 672 305
300 513 233 532 241 542 246 563 255
*Weights are for unit only and do not include options or crating.
UNIT
559F
DIMENSIONS
XY
Ft-in. mm Ft-in. mm
240 3-7 1092 3-2 965
300 3-5 1035 3-7 1092
