Bryant 574B Installation Instructions

6
12
43
x
y
C00070

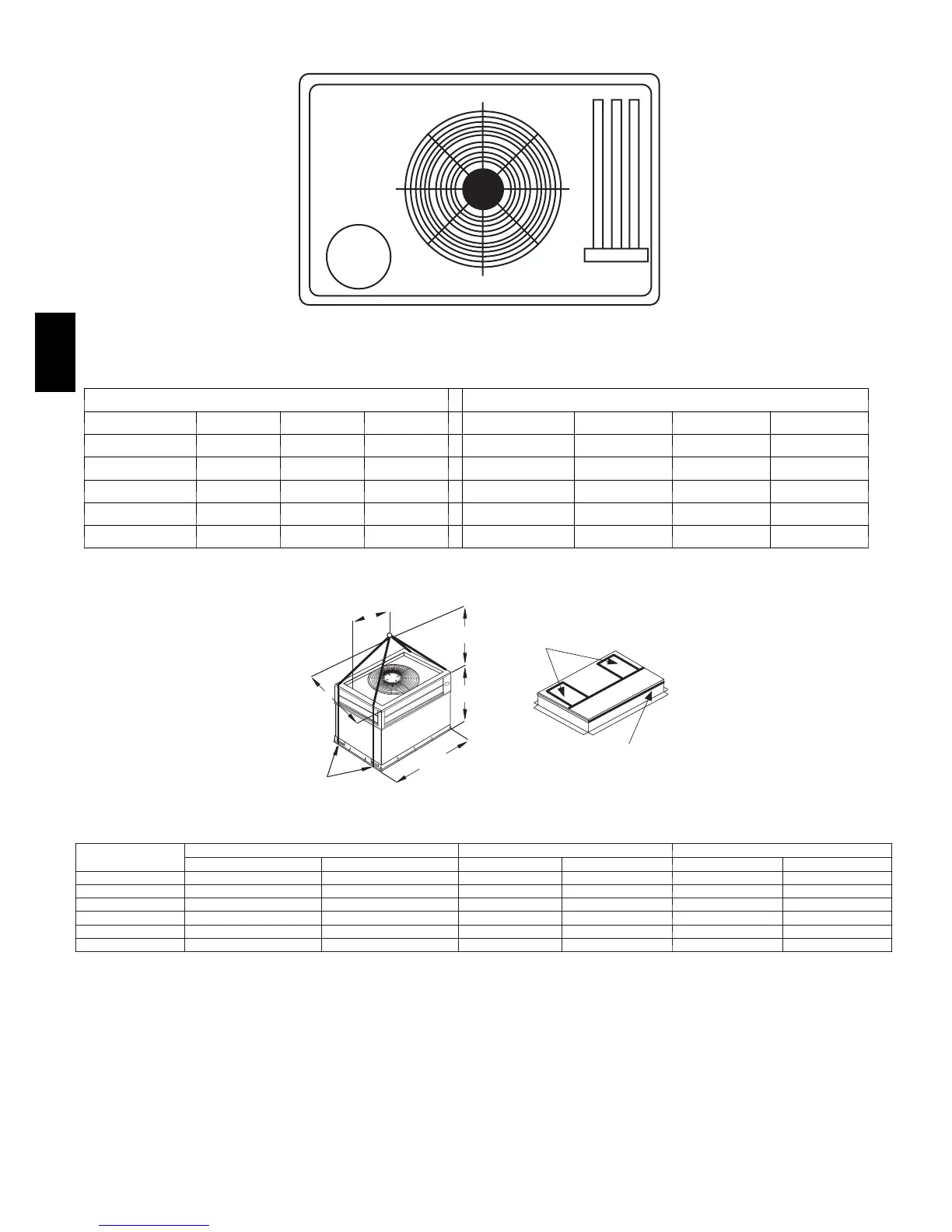

CORNER WEIGHTS (SMALL CABINET) CORNER WEIGHTS (LARGE CABINET)
Unit 024 030 036 Unit 042 048 060
Total Weight 350 350 388 Total Weight 440 463 499
Corner Weight 1 70 70 78 Corner Weight 1 88 92 100
Corner Weight 2 54 54 60 Corner Weight 2 68 72 78
Corner Weight 3 84 84 94 Corner Weight 3 106 111 120
Corner Weight 4 141 141 156 Corner Weight 4 177 188 201
Fig. 5 -- 574B Corner Weights
A
1226.3
(48.28”)
914-1371
(36”-54”)
927.57
(36”-52”)
PLACE RIGGING STRAPS IN
BASEPAN SLOT (BELOW HANDHOLDS)
BEFORE RIGGING
SEAL STRIP MUST BE IN
PLACE BEFORE PLACING
UNIT ON ROOF CURB
DUCTS
B
C99015
UNIT 574B
MAXIMUM SHIPPING WEIGHT
A B
lb kg in. mm in. mm
024 372 169 22.0 558.5 14.50 368.3
030 372 169 22.0 558.5 14.50 368.3
036 410 186 22.0 558.5 15.30 388.6
042 462 210 20.0 508.0 21.25 539.8
048 485 220 21.5 546.1 16.3 414.0
060 521 236 23.5 596.9 16.3 414.3
Fig. 6 -- Suggested Rigging
574B
