Bryant 576C User Manual

—2—
UNIT
ALUMINUM COIL lb (kg) COPPER COIL lb (kg)
Standard
Weight
Corner
A
Corner
B
Corner
C
Corner
D
Standard
Weight
Corner
A
Corner
B
Corner
C
Corner
D
569D072 300 (136) 62 (28) 103 (47) 62 (28) 72 (33) 352 (160) 95 (43) 92 (42) 92 (42) 72 (33)
569D090 383 (174) 86 (39) 123 (56) 85 (39) 89 (40) 484 (220) 122 (55) 137 (62) 122 (55) 104 (47)
569D120 430 (195) 84 (38) 166 (75) 66 (30) 114 (52) 531 (241) 121 (55) 176 (81) 103 (47) 128 (58)
576C090 550 (249) 49 (22) 262 (119) 75 (34) 165 (75) 651 (295) 88 (40) 273 (124) 114 (52) 177 (80)
576C102 575 (261) 55 (25) 265 (120) 88 (40) 167 (76) 676 (307) 94 (43) 276 (125) 127 (58) 179 (81)
576C120 575 (261) 55 (25) 265 (120) 88 (40) 167 (76) 676 (307) 94 (43) 276 (125) 127 (58) 179 (81)
UNIT
ALUMINUM COIL COPPER COIL
Center of Gravity
mm [in.]
Center of Gravity
mm [in.]
XYXY
569D072 831.9 [32.75] 641.4 [25.25] 789.7 [31.09] 619.3 [24.38]
569D090 822.3 [32.38] 635.0 [25.00] 806.5 [31.75] 621.8 [24.48]
569D120 812.8 [32.00] 676.3 [26.63] 800.1 [31.50] 656.3 [25.84]
576C090 924.1 [36.38] 657.3 [25.88] 896.4 [35.29] 644.1 [25.36]
576C102 927.1 [36.50] 647.7 [25.50] 900.2 [35.44] 636.3 [25.05]
576C120 927.1 [36.50] 647.7 [25.50] 900.2 [35.44] 636.3 [25.05]

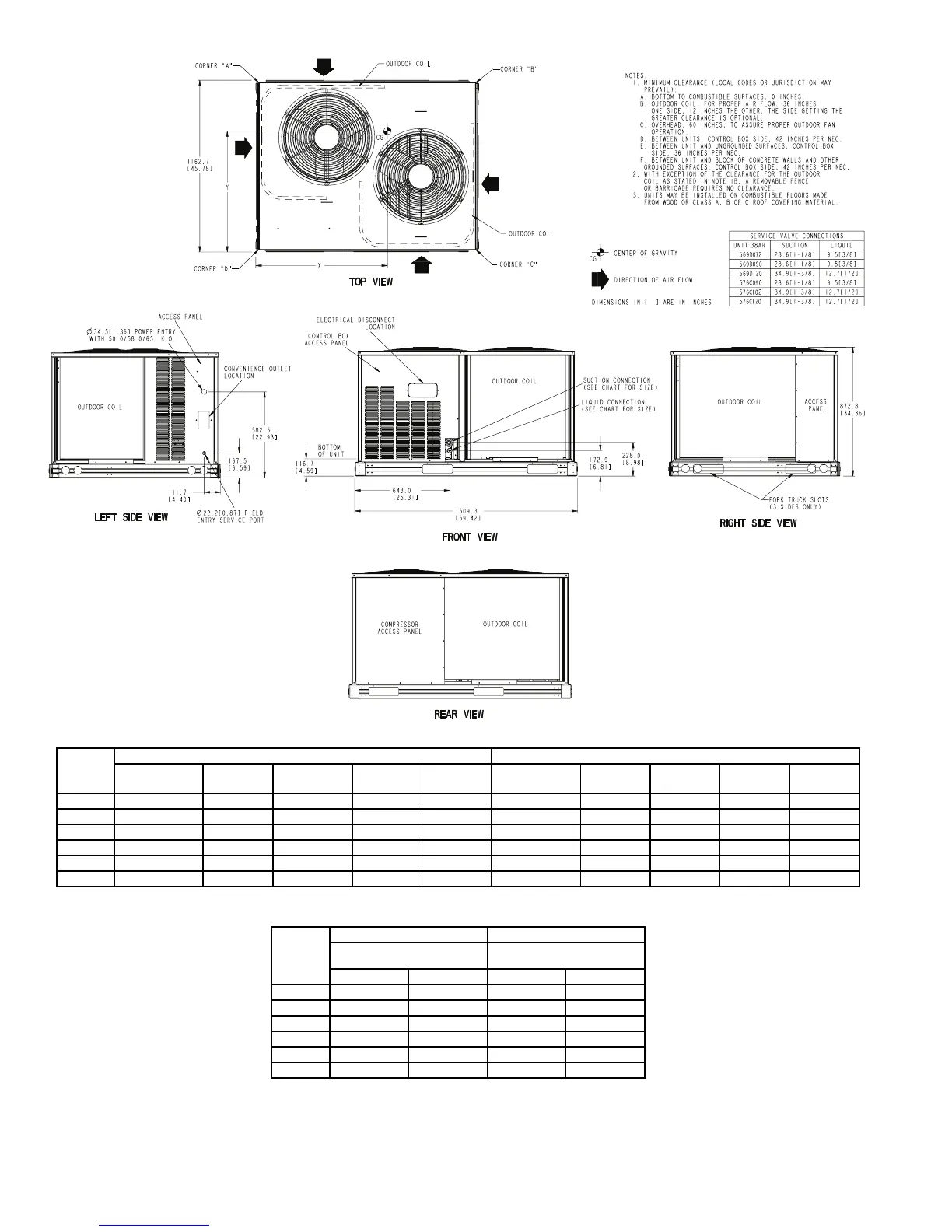

Fig. 1 — 569D072-120, 576C090-120 Unit Dimensions
