Bryant 619E Installation, Start-Up And Service Instructions

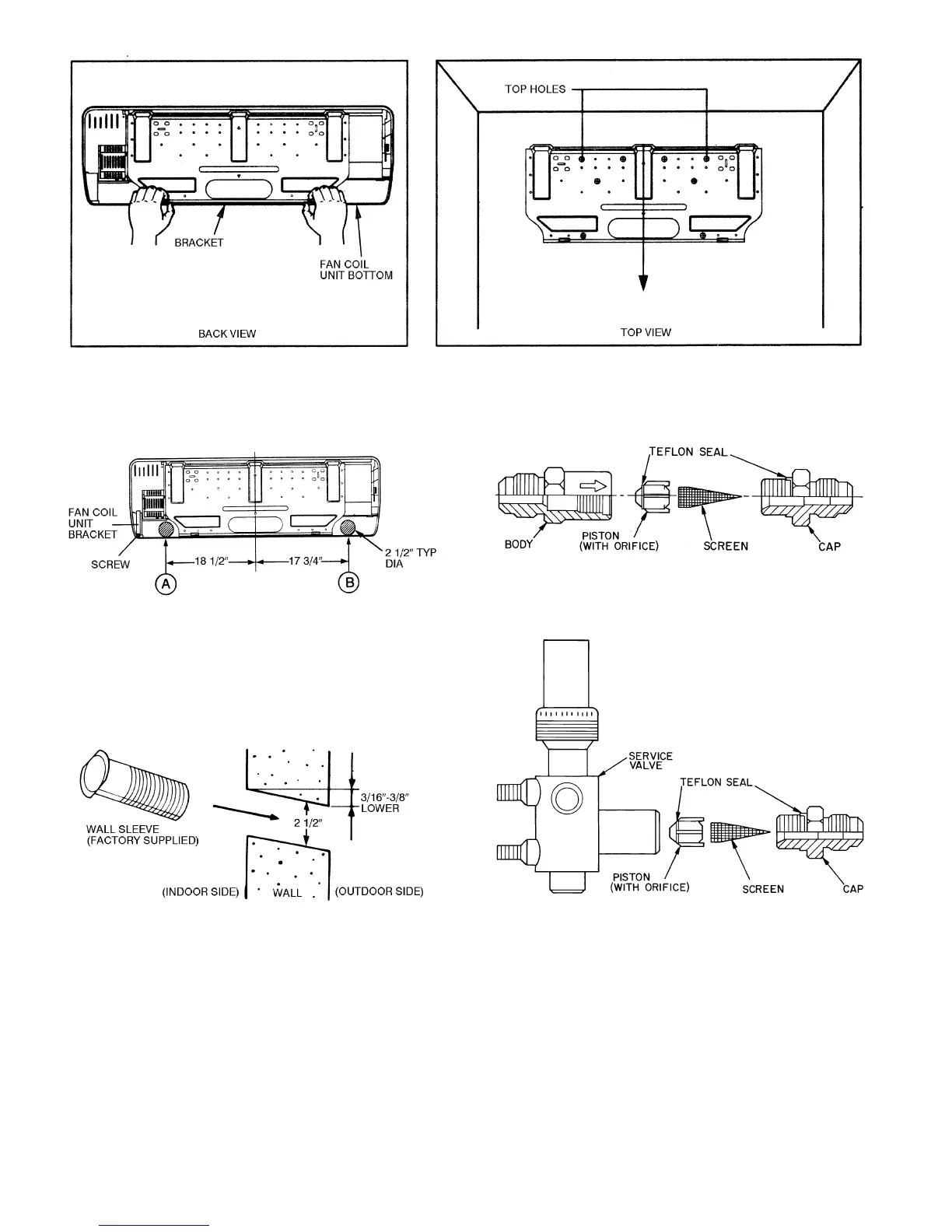

Fig. 6 — Bracket Mounting
NOTE: Arrow on AccuRaterT body points in free flow direction away
from the coil.
Fig. 9 — AccuRater Metering Device in Liquid
Line (Bypass Type Components); Cooling
Fig. 10 — AccuRater Metering Device at Service
Valve (Bypass Type Components); Heating
NOTE: Use either point ‘‘A’’ or point ‘‘B.’’
Fig.7—WallHole Location for Rear Piping
Fig. 8 — Piping Hole
—6—
