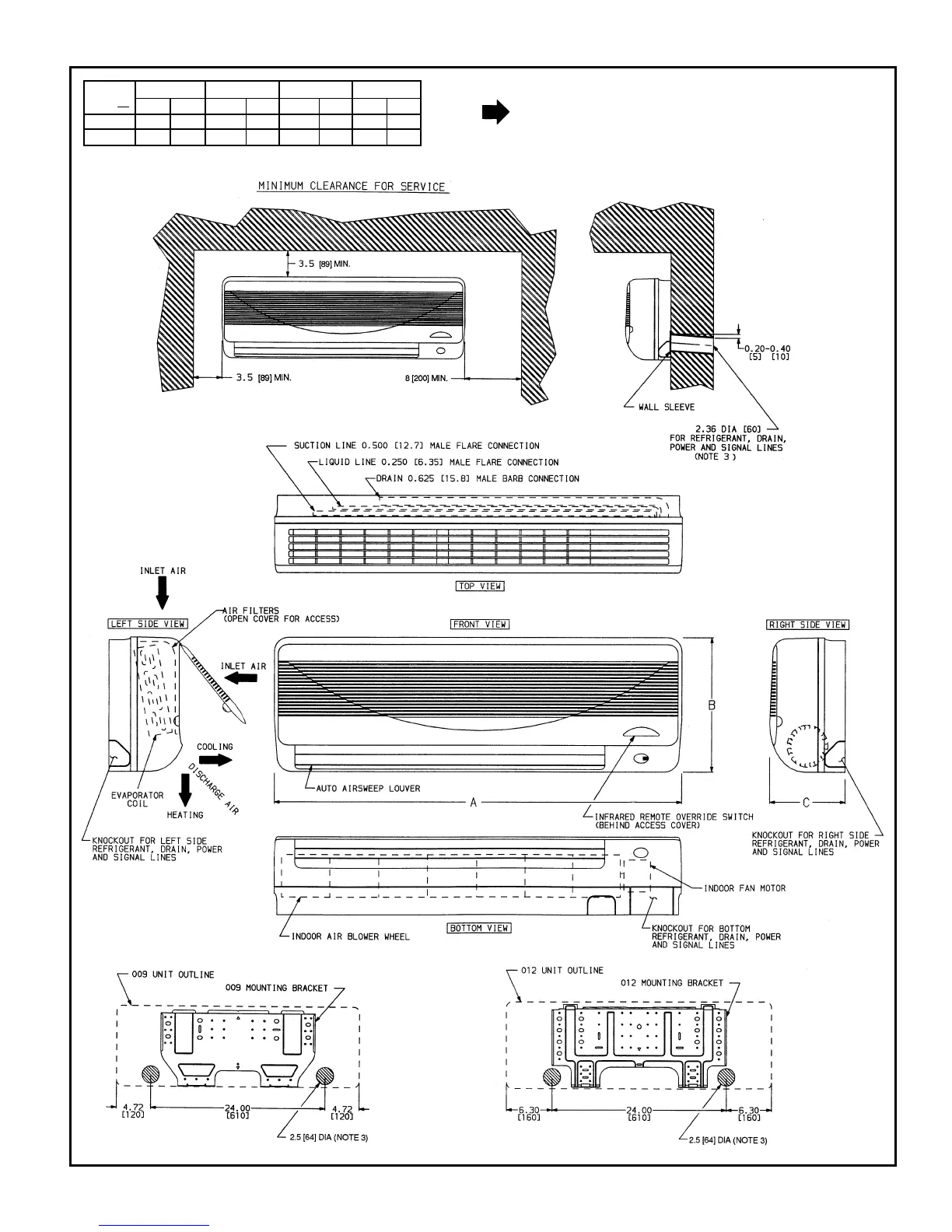

DIMENSIONAL DRAWING, BASE UNIT — 619E009,012 FAN COIL UNITS
UNIT
619E
WEIGHT A B C
Lb Kg in. mm in. mm in. mm
009 18.7 8.5 33.46 850 11.02 280 6.29 160
012 24.2 11.0 36.61 930 11.81 300 7.28 185
NOTES:
1. Dimensions are in inches. Dimensions in [ ] are in millimeters.
2. Direction of airflow.
3. Refrigerant, drain and power connections may be made rear, left side or right side.
4. Refrigerant is metered by capillary tubes in the outdoor unit. Insulate both refrig-
erant lines.
5. Clearances of 3
1
⁄
2
9 on top and to the left of the fan coil unit are absolute minimums.
Clearances of 109 are recommended.
13
