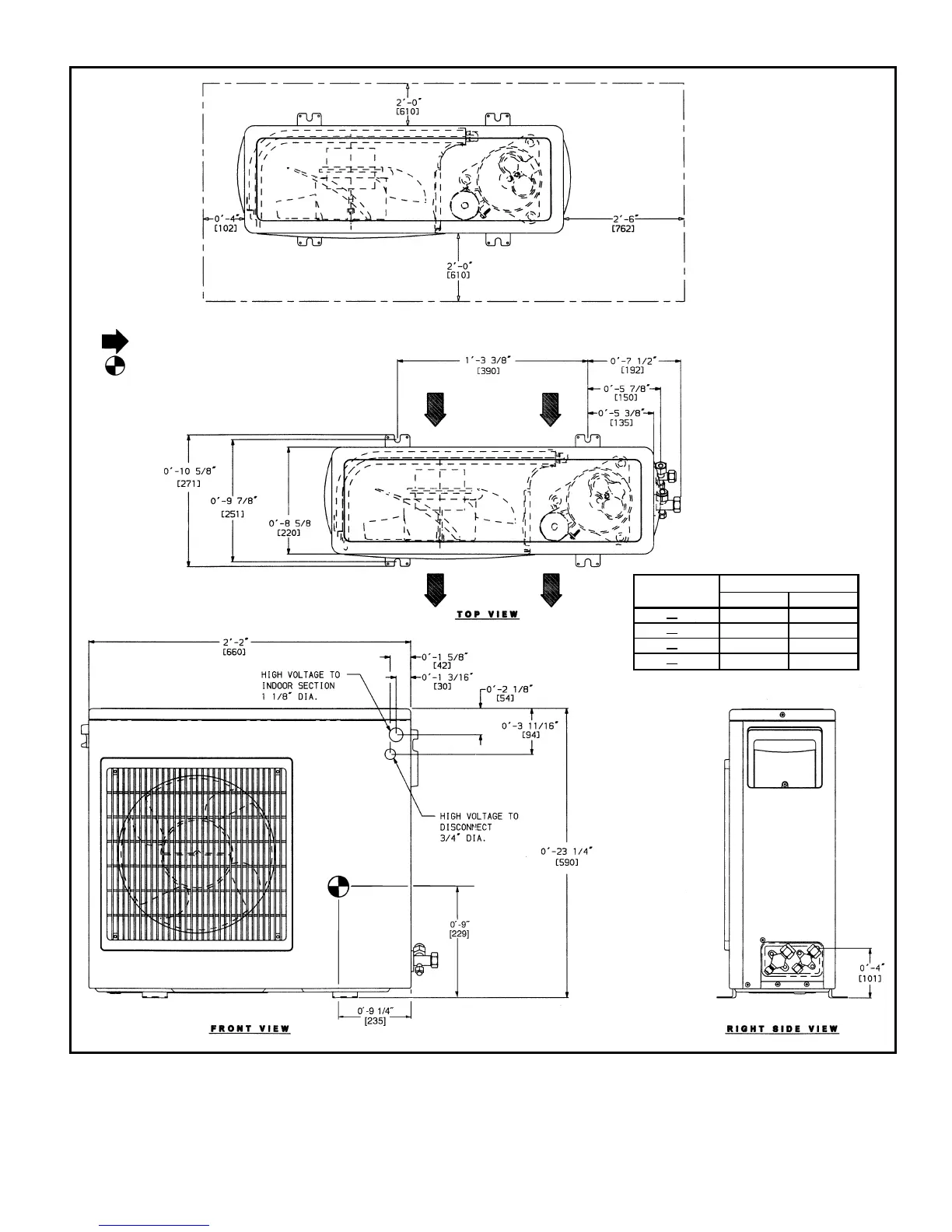

DIMENSIONAL DRAWING, BASE UNIT — 538C/D009,012 COOLING ONLY AND HEAT PUMP UNITS
NOTES:
1. Dimensions in [ ] are in millimeters.
2. Direction of airflow.
3. Center of gravity.
4. Minimum clearances, 4 in. on coil sides, 24 in. on fan
side, and 30 in. service side.
UNIT
538
WEIGHT
Lb Kg
C 009
55.0 25.0
C 012
62.0 28.1
D 009
60.7 27.5
D 012
66.5 30.2
9
