Bryant 619E - Page 27

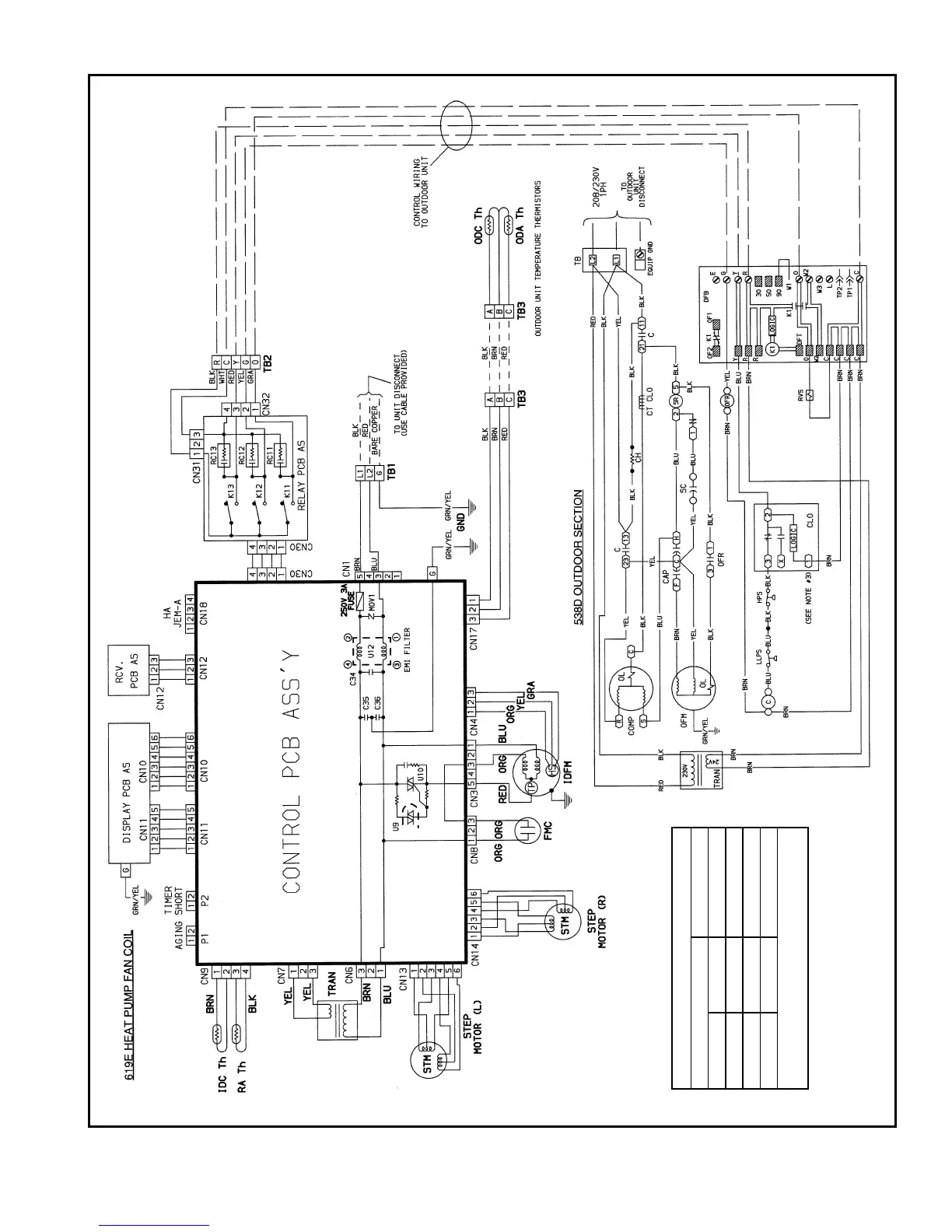

TYPICAL WIRING SCHEMATIC — 538D018,024 HEAT PUMP SYSTEM
THERMISTOR EQUIVALENCE
Temperature Resistance
°F °C V
95 35 6,500 72 22 11,400 32 0 32,500
All thermistors in the 619E systems
are identical to each other
(See Legend and Notes, page 28.)
27
