35

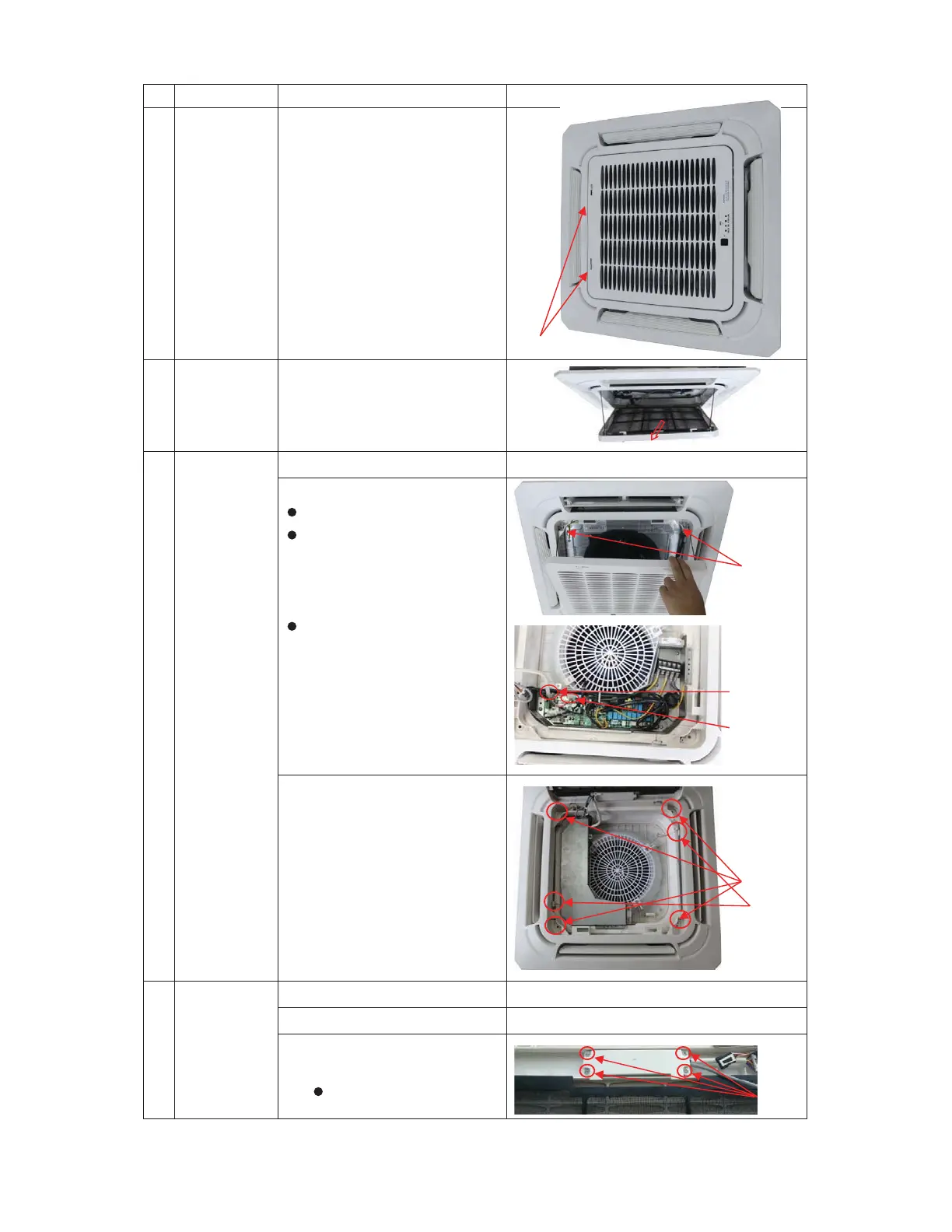

Disassembly Instructions Cassette
No.
1 Remove the
filter
1) Open the grille
2) Remove the filter
Note: the filter is easy to be
damaged, be careful when
removing it.
2 Remove the
panel
1) Open the grille
Repeat the operation of step1 of No.1
2) Remove the grille
Screw off two screws.
Disconnect the display
board wire and swing
motor wire connected to
the PCB.
Remove the grille.
3) Loose the four screws
and two wireropes, then
the panel can be
disassembled.
3 Remove the
display
board
1) Open the grille
Repeat the operation of step1 of No.1
2) Remove the grille
Repeat the operation of step2 of No.2
3) Disassemble the display
board
Remove the display
4 screws
4 screws
2 wireropes
display board wire
swing motor wire
Grill switch
Parts name Procedures Remarks
2 screws
To Next Page
