12
Grille Louver Motor Power.
5 Pin Port
Grille Display
10 Pin Port
CN40 Connector
Used for Wired Remote Control with
a 4 Pin Molex plug
Wired Remote Controller
(Available as Accessory)
5 Pin Molex plug to be
connected to Wired
Controller’s cable
Grille Display.
10 pin Molex plug to be
connected to Control Board.
Grille Louver Motor Power.
5 Pin Molex plug to be
connected to Control Board

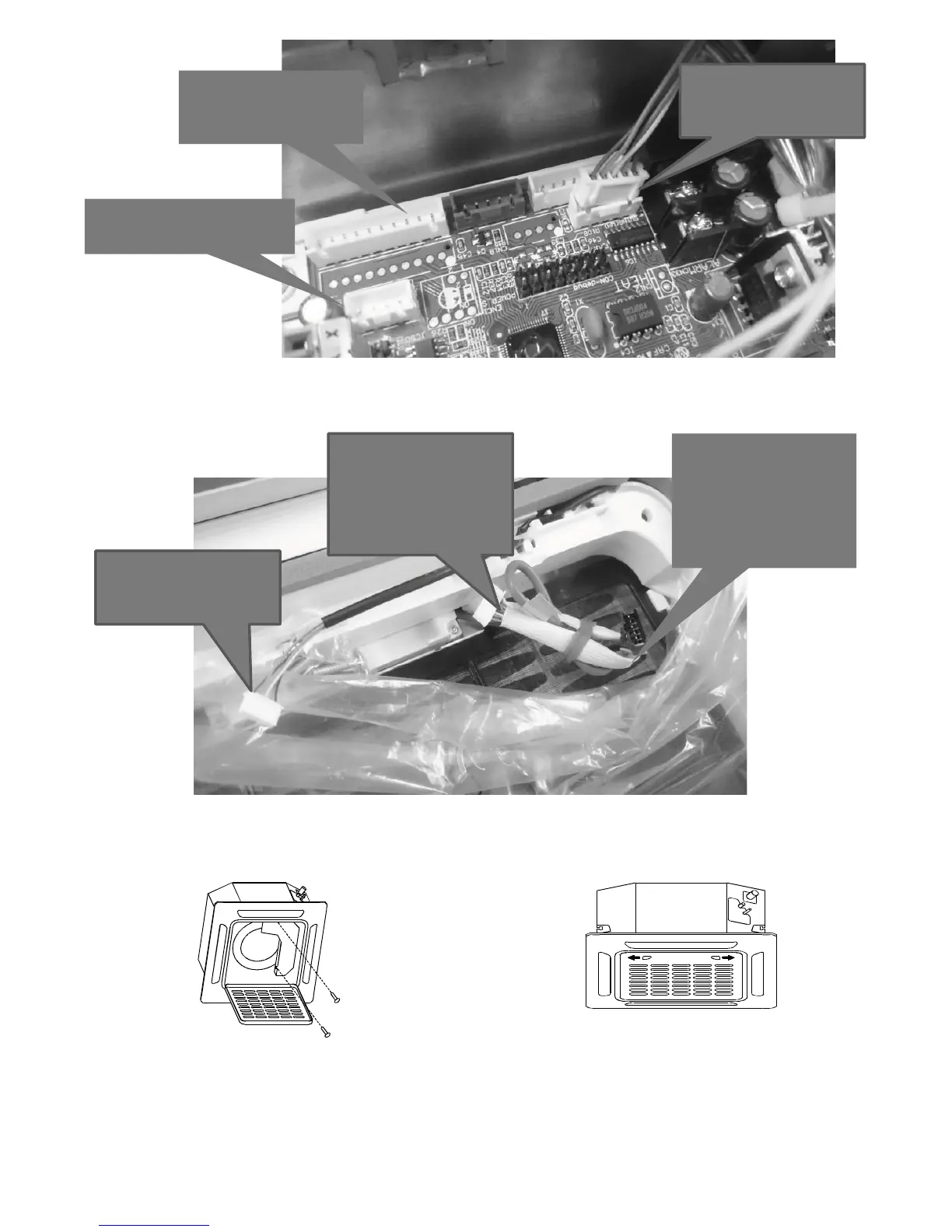

Fig. 23 - Panel Cassette Connections
6. Fasten the control box lid with two screws.
Fig. 24 - Fasten the Control Box Lid
7. Close the intake grille, and close the two grille hooks.
Fig. 25 - Close the Intake Grille
To Next Page
