820SA/821SA: Installation, Start–Up, Operating and Service and Maintenance Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
2
A190045

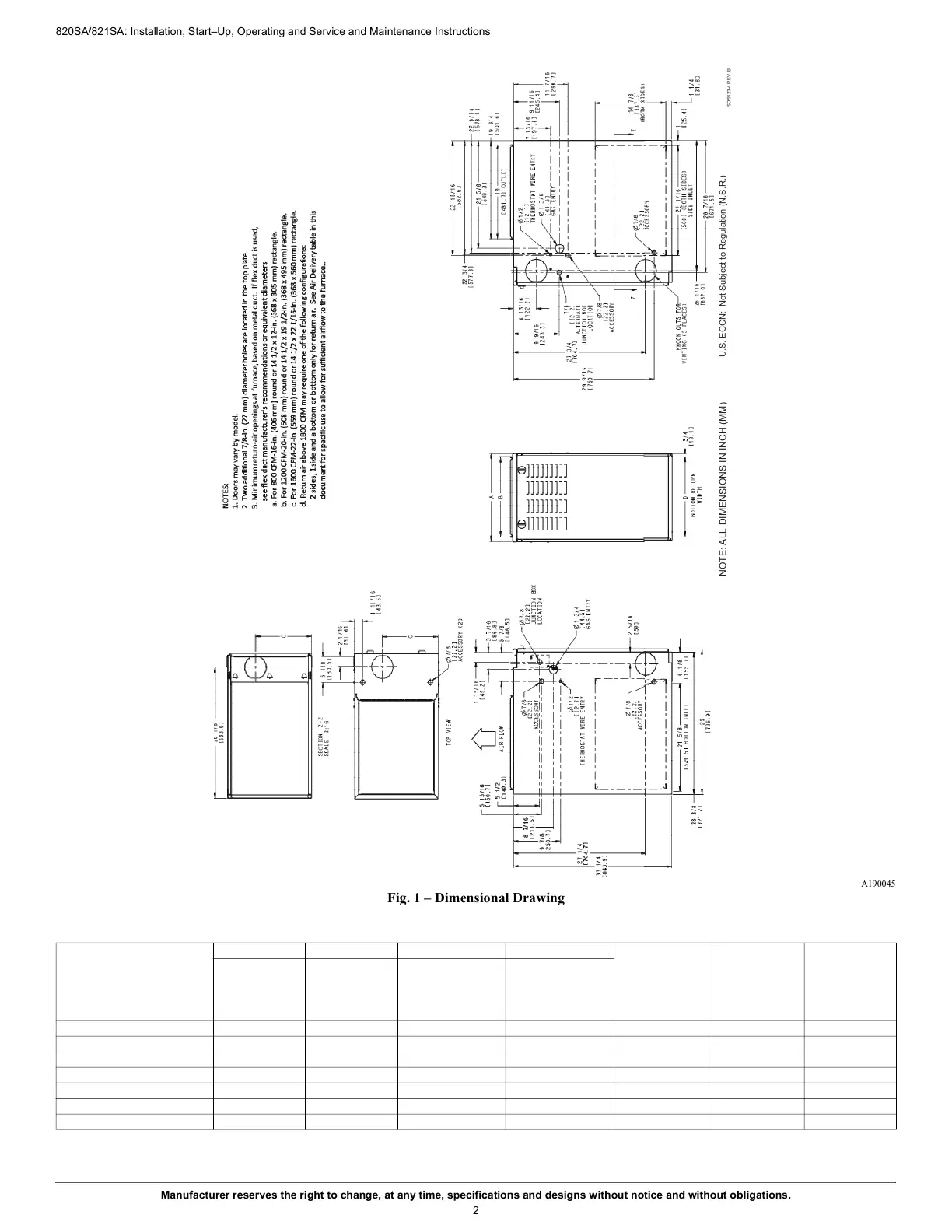

Fig. 1 – Dimensional Drawing
U.S. ECCN: Not Subject to Regulation (N.S.R.)
SD5523-4 REV. B
NOTE: ALL DIMENSIONS IN INCH (MM)
FURNACE SIZE
A B C D
VENT
CONNECTION
SIZE
SHIP WT.
LB (KG)
ACCESSORY
FILTER
MEDIA
CABINET
SIZE
CABINET
WIDTH
OUTLET
WIDTH
TOP AND
BOTTOM FLUE
COLLAR
BOTTOM
INLET WIDTH
36045V14 14-3/16 (360) 12-9/16 (319) 9-5/16 (237) 12-11/16 (322) 4 (102) 112 (50.8) 16 (406)
48045V17 17-1/2 (445) 15-7/8 (403) 11-9/16 (294) 16 (406) 4 (102) 120 (54) 16 (406)
48070V17 17-1/2 (445) 15-7/8 (403) 11-9/16 (294) 16 (406) 4 (102) 129 (59) 16 (406)
60070V21 21 (533) 19-3/8 (492) 13-5/16 (338) 19-1/2 (495) 4 (102) 141 (63) 20 (506)
60090V21 21 (533) 19-3/8 (492) 13-5/16 (338) 19-1/2 (495) 4 (102) 143 (65) 20 (506)
60090V24 24-1/2 (622) 22-7/8 (581 15-1/16 (383) 23 (584) 4 (102) 150 (68) 24 (610)
66110V24 24-1/2 (622) 22-7/8 (581 15-1/16 (383) 23 (584) 4 (102) 153.5 (70) 24 (610)
