2
A190045
FURNACE SIZE
A B C D
VENT
CONNECTION
SIZE
SHIP WT.
LB (KG)
ACCESSORY
FILTER
MEDIA
CABINET
SIZE
CABINET
WIDTH
OUTLET
WIDTH
TOP AND
BOTTOM FLUE
COLLAR
BOTTOM
INLET WIDTH
36045V14 14-3/16 (360) 12-9/16 (319) 9-5/16 (237) 12--- 11/16 (322) 4 (102) 111 (50) 16 (406)
36070V14 14-3/16 (360) 12-9/16 (319) 9-5/16 (237) 12--- 11/16 (322) 4 (102) 118 (54) 16 (406)
48070V17 17 ---1/2 (445) 15-7/8 (403) 11-9/16 (294) 16 (406) 4 (102) 132 (60) 16 (406)
48090V17 17 ---1/2 (445) 15-7/8 (403) 11-9/16 (294) 16 (406) 4 (102) 131 (59) 16 (406)
60090V21 21 (533) 19-3/8 (492) 13-5/16 (338) 19---1/2 (495) 4 (102) 142 (64) 20 (506)
66110V21 21 (533) 19-3/8 (492) 13-5/16 (338) 19---1/2 (495) 4 (102) 154 (70) 20 (506)
66135V24 24-1/2 (622) 22-7/8 (581 15-1/16 (383) 23 (584) 4 (102)* 168 (76) 24 (610)
*135 size furnaces require a 5 or 6---in. (127 or 152 mm) vent. Use a vent adapter between f urnace and vent stack. See Installation Instructions for complete
installation requirements.

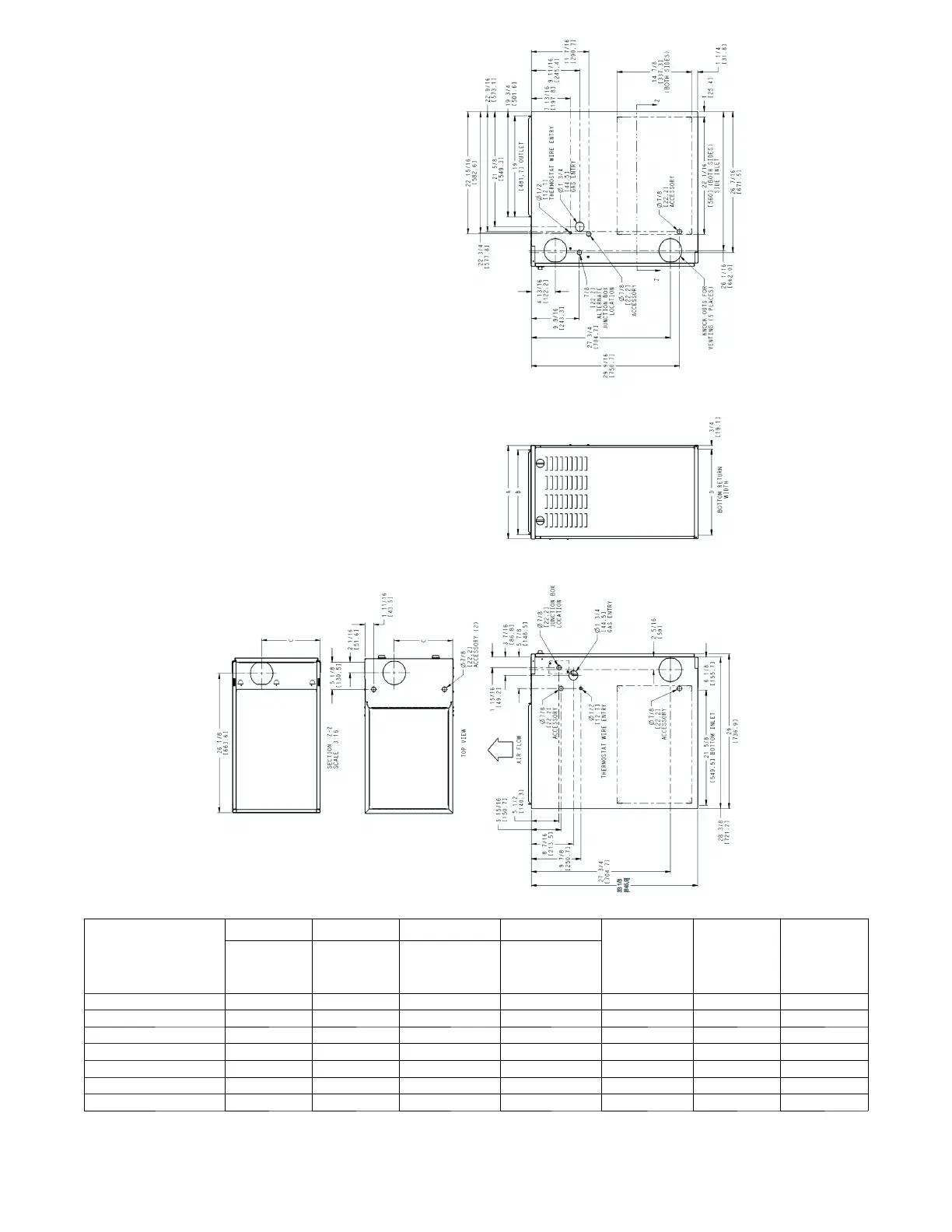

Fig. 1 -- Dimensional Drawing
