Bryant 820TA - Page 32

32
SEE NOTES: 1,2,4,5,6,7,8,9,10
on the page following these figures
A03207

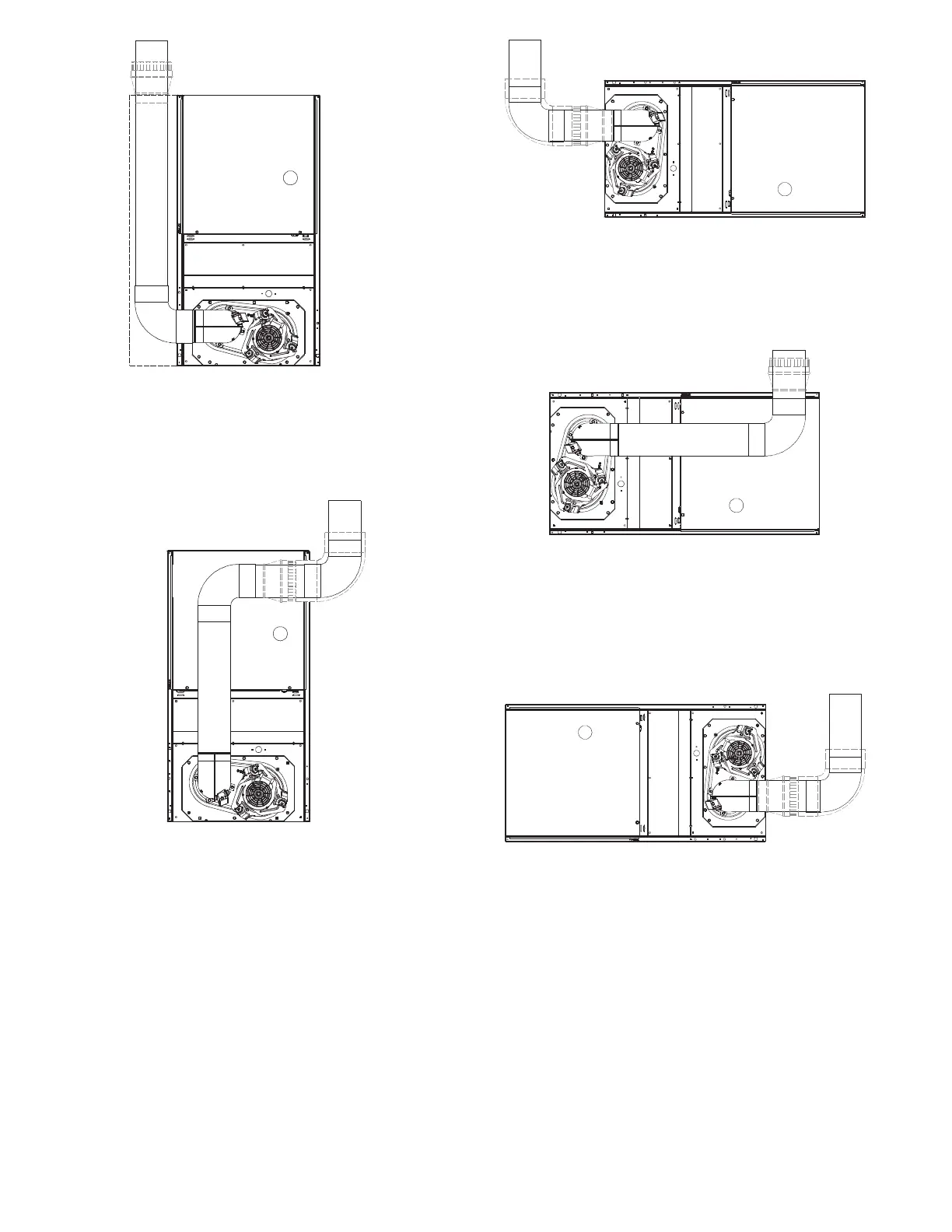

Fig. 40 -- Downflow Application -- Vent Elbow Left then Up
SEE NOTES:1,2,3,4,5,7,8,9
on the page following
these figures.
A03212
Fig. 41 -- Downflow Application -- Vent Elbow Up then Right
SEE NOTES: 1,2,4,7,8,9 on the page
following these figures
A03213
Fig. 42 -- Horizontal Left Application -- Vent Elbow Left
SEE NOTES: 1,2,4,5,7,8,9 on the page
following these figures
A03214
Fig. 43 -- Horizontal Left Application -- Vent Elbow Right
then Up
SEE NOTES: 1,2,4,7,8,9 on the page
following these figures
A03218
Fig. 44 -- Horizontal Right Application -- Vent Elbow Right
