36
A190048

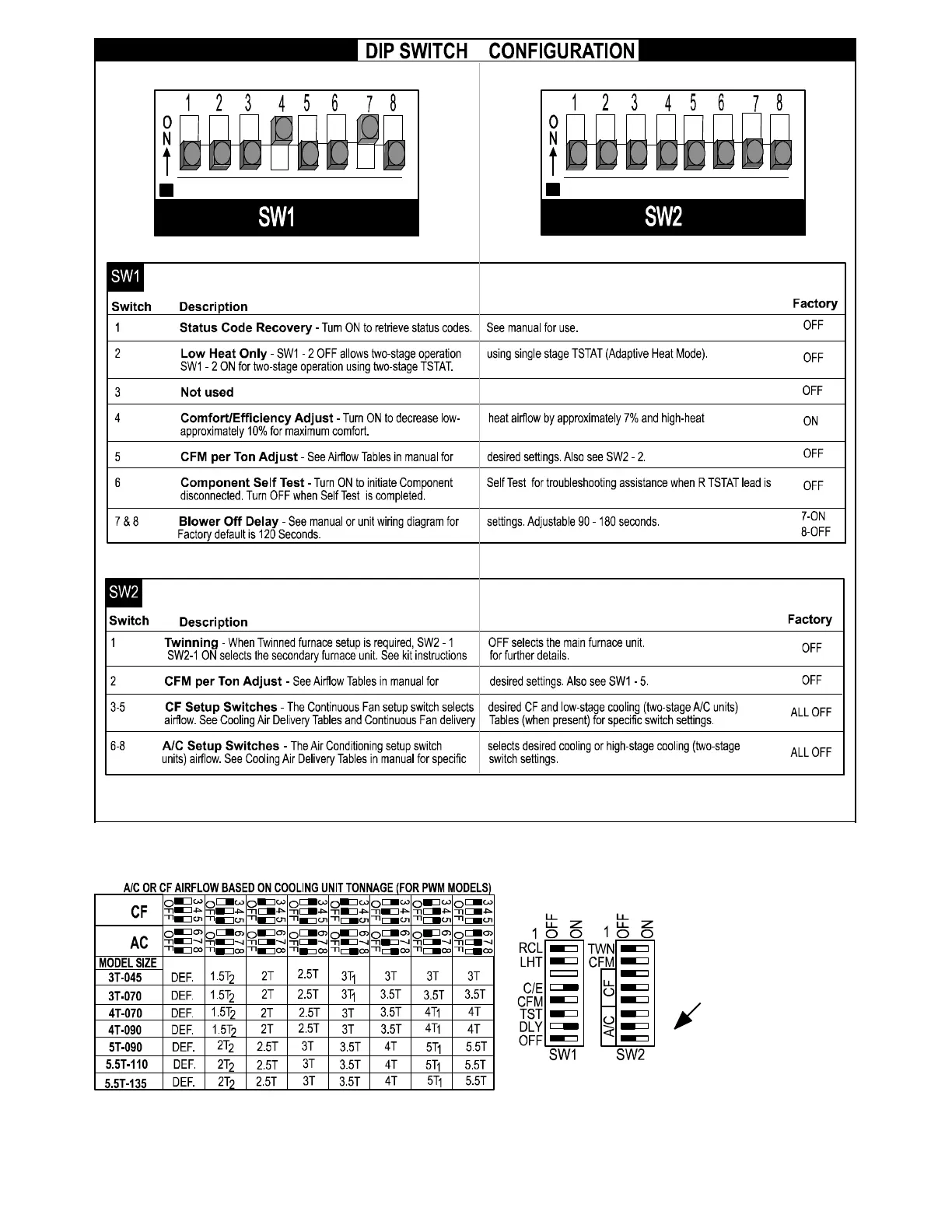

Fig. 52 -- Furnace Setup Switch Description
1. Default A/C airflow when
A/C setup switches are in
OFF position.
2 . D e f a u l t L o w --- S t a g e A / C
airflow when CF switches
are in OFF position
A190049
Fig. 53 -- Airflow Selection (based on 350 CFM/TON) for A/C (SW2 -- 6, 7, 8) and *CF (SW2--3, 4, 5)
