Bryant 912SC - Page 28

28
1
3
/ 4 
1
3
/ 4 
1
3/
4 
1
3/
4 
5/
16 
5
/ 16 
5/
16 
5/
16 
(44mm)
(8mm)
(44mm)
(8mm)
(8mm)
(8mm)
(44mm)
(44mm)
A89014

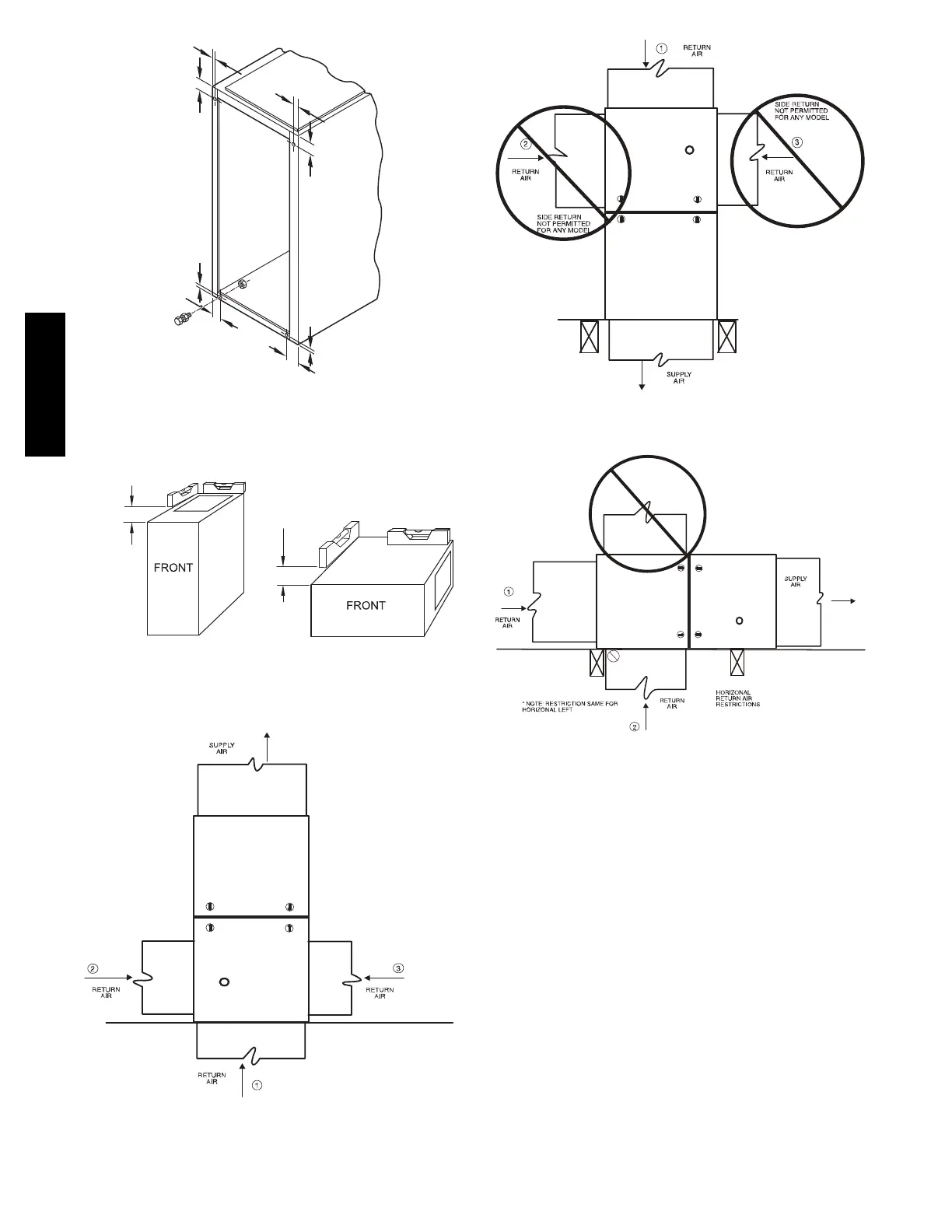

Fig. 25 -- Leveling Legs
LEVEL 0-IN. (0 MM) TO
1/2-IN. (13 MM) MAX
UPFLOW OR
DOWNFLOW
HORIZONTAL
MIN 1/4-IN. (6 MM) TO
1/2-IN. (13 MM) MAX
A11237
Fig. 26 -- Furnace Pitch Requirements
ANY COMBINATION OF 1, 2, OR 3 PERMITTED.
A11036
Fig. 27 -- Upflow Return Air Configurations and Restrictions
A11037
Fig. 28 -- Downflow Return Air Configurations and
Restrictions
HORIZONTAL TOP
RETURN NOT
PERMITTED FOR
ANY MODEL
A11038
Fig. 29 -- Horizontal Right Return Air Configuration and
Restrictions
912S
