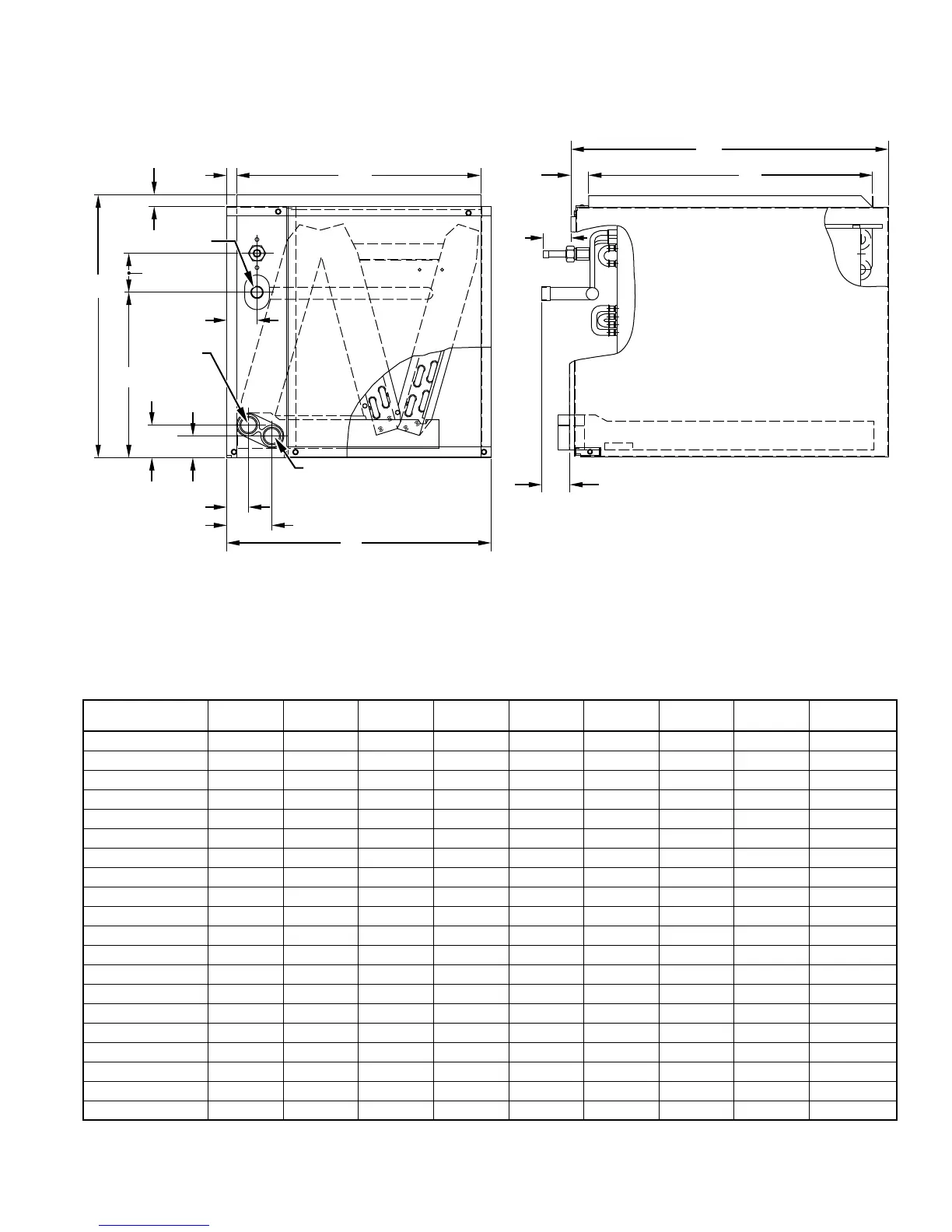

Bryant CK5A - Coil Dimensions and Specifications; Dimensional Data Table

—3—
A97606
DIMENSIONS (In.)
* In these models the coil can be removed from the casing and installed as an uncased coil without needing to field fabricate the coil enclosure to prevent air bypass.
UNIT SERIES A B C D E F G
SHIPPING
WEIGHT (LB)
CK5(A,B)XA018014* A 14-3/16 13-1/4 12-9/16 5 5/8 2-1/8 1-3/8 28-1/2
CK5(A,B)XA024014* A 14-3/16 13-1/4 12-9/16 7-1/16 5/8 2-1/8 1-3/8 32
CK5(A,B)XW024017 A 17-1/2 13-1/4 15-7/8 6-11/16 5/8 2-1/8 1-3/8 33
CK5(A,B)XA030014* A 14-3/16 15-1/4 12-9/16 9-1/16 3/4 2-1/8 1-3/8 35-1/2
CK5(A,B)XW030017 A 17-1/2 15-1/4 15-7/8 8-13/16 3/4 2-1/8 1-3/8 37-1/2
CK5(A,B)XA036017* B 17-1/2 17-5/8 15-7/8 10-13/16 3/4 2-1/8 1-3/8 43
CK5(A,B)XN036014 B 14-3/16 17-5/8 12-9/16 11-3/16 3/4 2-1/8 1-3/8 40
CK5(A,B)XT036017* A 17-1/2 19-7/16 15-7/8 13-1/16 3/4 4-3/8 3-5/8 49
CK5(A,B)XW036021 B 21 17-5/8 19-3/8 10-1/2 3/4 2-1/8 1-3/8 44
CK5(A,B)XA042021* B 21 17-5/8 19-3/8 10-1/2 7/8 2-1/8 1-3/8 44
CK5(A,B)XN042017 B 17-1/2 17-5/8 15-7/8 10-7/8 7/8 2-1/8 1-3/8 43
CK5(A,B)XT042021* A 21 19-7/16 19-3/8 12-3/4 7/8 4-3/8 3-5/8 52
CK5(A,B)XA048021* B 21 19-5/8 19-3/8 12-11/16 7/8 2-1/8 1-3/8 47-1/2
CK5(A,B)XN048017 B 17-1/2 19-5/8 15-7/8 12-15/16 7/8 2-1/8 1-3/8 45-1/2
CK5(A,B)XT048021* A 21 21-3/8 19-3/8 14-15/16 7/8 4-3/8 3-5/8 56
CK5(A,B)XW048024 B 24-1/2 19-5/8 22-7/8 12-3/16 7/8 2-1/8 1-3/8 49-1/2
CK5(A,B)XA060024* A 24-1/2 22-5/8 22-7/8 16-1/2 7/8 2-1/8 1-3/8 62
CK5(A,B)XN060021 A 21 26-15/16 19-3/8 14-3/8 7/8 2-1/8 1-3/8 67
CK5(A,B)XT060024* A 24-1/2 24-7/8 22-7/8 18-3/4 7/8 4-3/8 3-5/8 69
CK5(A,B)XX060024 A 24-1/2 26-15/16 22-7/8 14-1/4 7/8 2-1/8 1-3/8 70
A
B
D
F
G
C
1
1
⁄8″
2
1
⁄8″
19″
21″
1
9
⁄16″
2
5
⁄8″
2″
1
7
⁄8″
13
⁄16″
5
⁄8″
E SUCTION LINE
3
⁄4–IN.
PLUGGED
DRAIN
3
⁄4–IN. NPT DRAIN
FRONT RIGHT SIDE
NOTE: 1. Series designation is the 14th position of
unit model number.
3
1
⁄16″
